Model: LSI LSI00297
Features
- Uses NAND flash memory powered by a super-capacitor to protect data stored in the MegaRAID controller cache
- Eliminates the need for Lithium-ion batteries, and their associated hardware maintenance costs, resulting in a greener, lower total cost cache protection solution
- Remote mounting accessories allow customers to easily mount BBUs or in servers

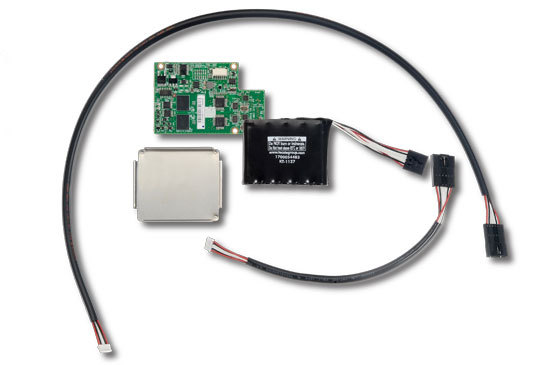

CacheVault Module 01 for MegaRAID SAS 9266-4i, 9266-8i, 9271-4i, 9271-8i,9271-8iCC
CacheVault technology provides RAID controller cache protection using
NAND flash memory and a supercapacitor. In the event of a power or server
failure, CacheVault technology automatically transfers cached data from
the DRAM cache to flash. Once power is restored, the data in the NAND
flash is copied back into cache until it can be flushed to the disk drives. This
technology eliminates the need for Lithium-ION battery backups that are
traditionally used to protect cache memory on PCI RAID controllers.
