Antec NSK2480 Black/Silver MicroATX Desktop

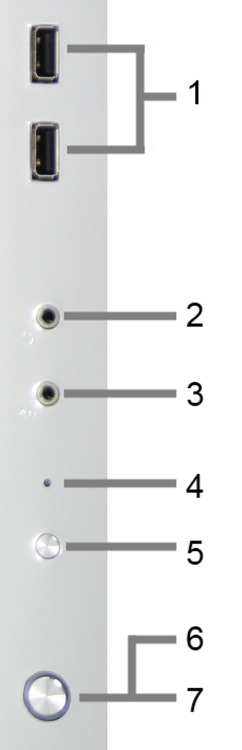

[ Front Panel ]

Antec NSK2480 Black/Silver MicroATX Desktop Picture 11677
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11678
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11679
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11680
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11681
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11682
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11683
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11684
Antec NSK2480 Black/Silver MicroATX Desktop Picture 11685
Antec NSK2480 Black/Silver MicroATX Desktop Picture 19463


Puget Systems Description

The microATX NSK2480 case is part of Antec's 'New Solution' series of cases. Designed for HTPC use, the case has a pair of 120mm fans to cool the motherboard area, rather than the usual 80mm or smaller fans in other HTPC cases. This lets the system stay cool with less noise, making the NSK2480 one of the quietest HTPC cases available.

We have found the power supplies included with this chassis to not be reliable, so we source the chassis without power supply. This results in a $20 discount, which is passed along to you.


Puget Systems Professional Advice
Daniel Brown (Customer Service) Says:
I like this design. I would recommend it for use in HTPC applications. Very few other HTPC chassis designs allow the use of 120mm fans. Using 120mm fans makes this chassis relatively quiet and gives it good airflow (although generally not as good as you'd find in a tower-style layout). It is also priced much lower than most of its competitors like the Silverstone HTPC chassis, or even Antec's own 'Fusion' HTPC chassis.

William George (Customer Service) Says:
I am using this case at home as my current HTPC, and while it isn't quite as quiet as I would like it is a lot better than most cases this size. That is largely due to the use of 120mm fans rather than smaller 60 or 80mm models that most cases come with. It also has rubber mounts for the hard drives, which help (though I can still hear the seek noises from the drives if I'm up close to it). The low height of the case lets it fit in places that most other models just couldn't go.


Manufacturer Description
Model: Antec NSK2480

Specifications:
spacer
Color  Silver & Black
Material  Aluminum front panel, steel frame
Type/Size  Home Theater
Maximum Motherboard Size  MicroATX
Case Window  No
Power Supply  380W
Dimensions
Height  140 mm (5.5 inches)
Width  448 mm (17.6 inches)
Depth  414 mm (16.3 inches)
Net Weight  7.8 kg (17.2 lbs)
Drive Bays
External 5.25 inch  2
External 3.5 inch  0
Internal 3.5 inch  2
Front Panel Connectors
USB 2.0  2
USB 3.0  0
Firewire  0
Audio In  1
Audio Out  1
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  2 x 120mm

Features:
  • High-efficiency 380 Watt ATX12V v2.0 power supply
    -Universal input
    -Active PFC and high efficiency design for superior environmentally friendly operation

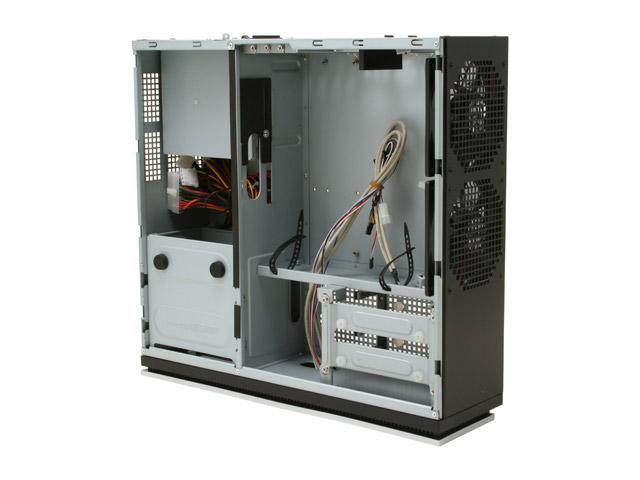

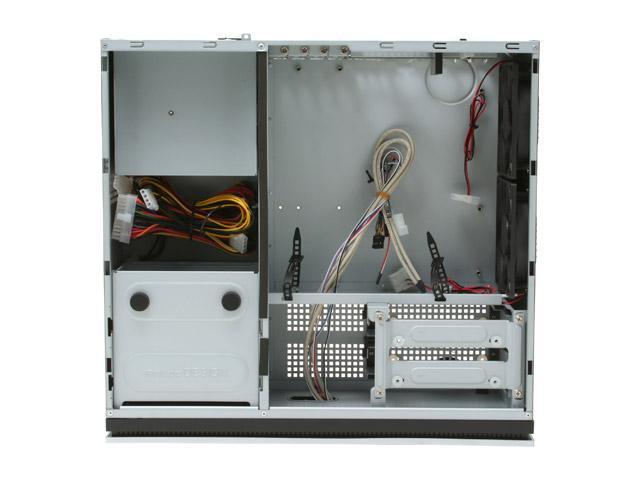

  • Triple-chamber structure to isolate power supply and hard drive heat for cooler & quieter operation
  • Advanced cooling system:

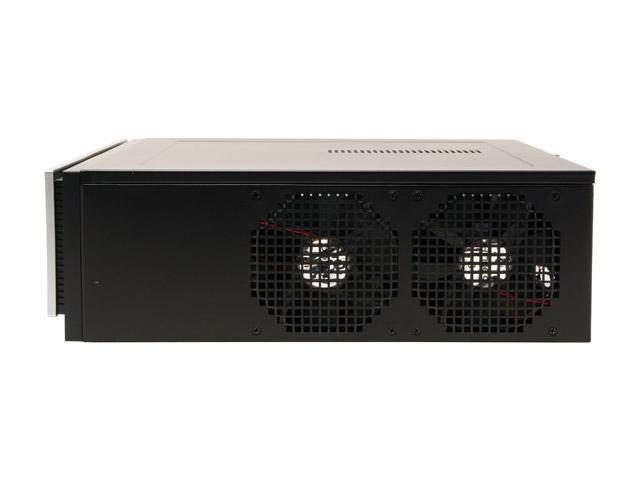

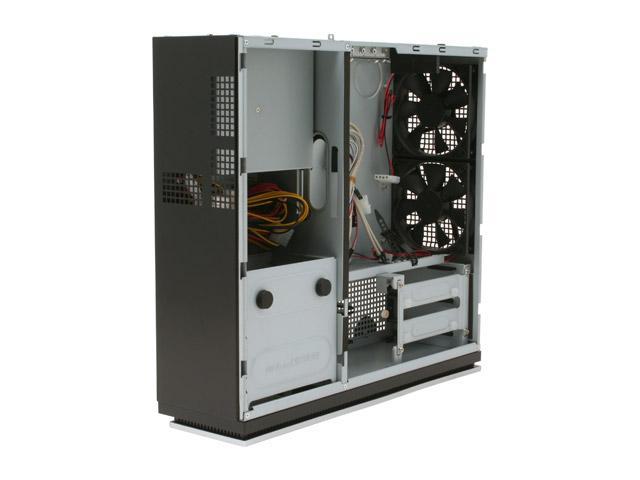

    -- 2 sidemounted 120 mm TriCool™ 3-speed fans
  • 4 Drive Bays
    -Front Accessible: 2 x 5.25"
    -Internal: 2 x 3.5" removable HDD trays with silicone grommets to isolate drive vibrations
  • 4 Expansion Slots
  • Front-mounted ports for easy multimedia connections
  • 2 x USB 2.0
  • Audio In and Out
  • 0.8mm cold-rolled steel construction
  • Accommodates up to MicroATX motherboards (9.6" x 9.6")

Need more information? Email us your questions about the Antec NSK2480 Black/Silver MicroATX Desktop.
