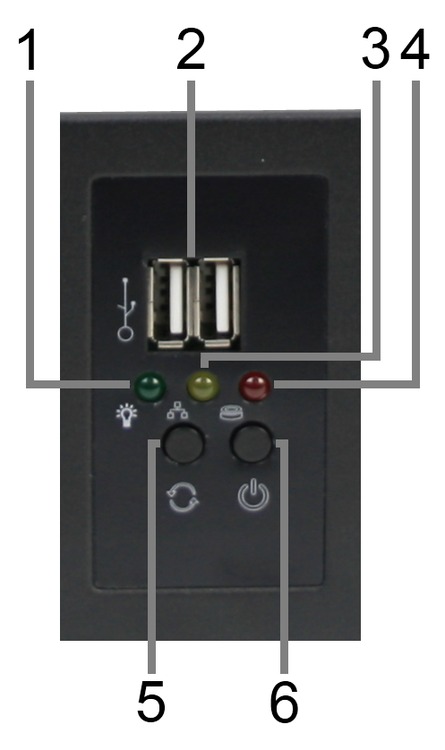

Athena RM-2U2022S 2U Rackmount Case Ports
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN LED: Light that turns on when there is any wired network activity.
HDD LED: Light that turns on when there is drive activity.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power Switch: On/off button for the device.
Athena RM-2U2022S 2U Rackmount Case Dimensions

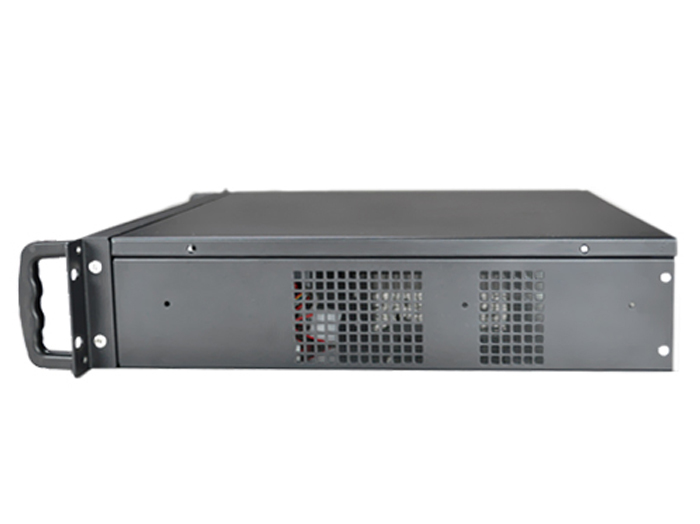

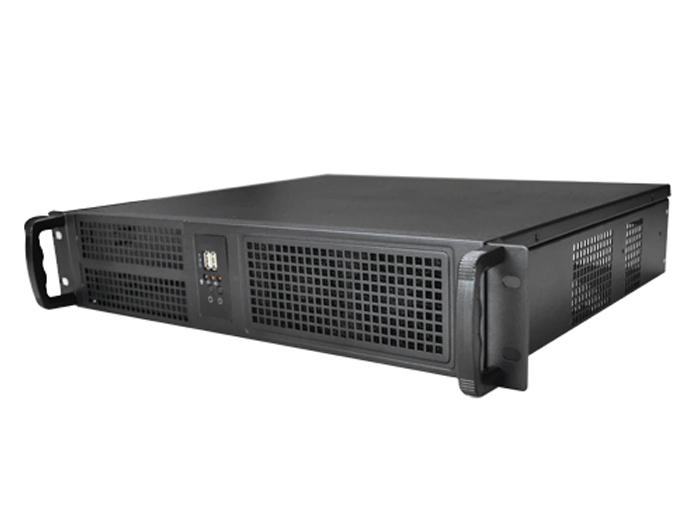

When rack space is at a premium, the Athena RM-2U2022S 2U chassis is an ideal solution. At only 15 inches deep and 2 rack units high it is well suited for small racks, and can even fit comfortably in many portable racks. It can be bolted in place with the included 'ears', or on mounting rails which are available in a variety of lengths for easier installation and servicing.

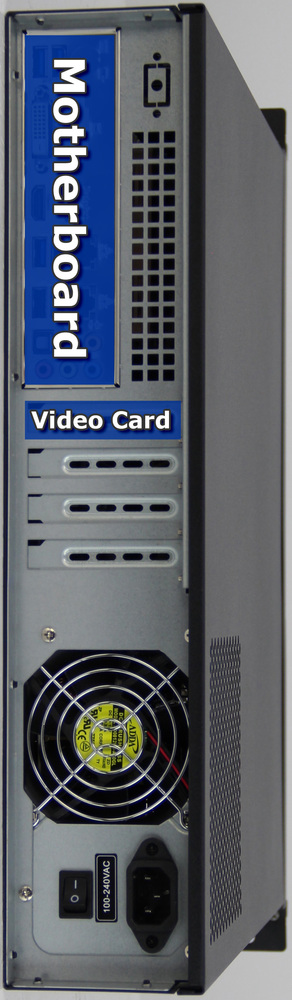

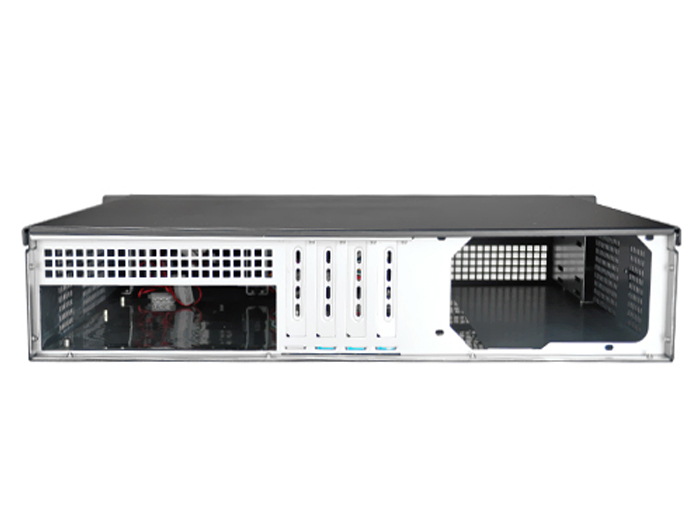

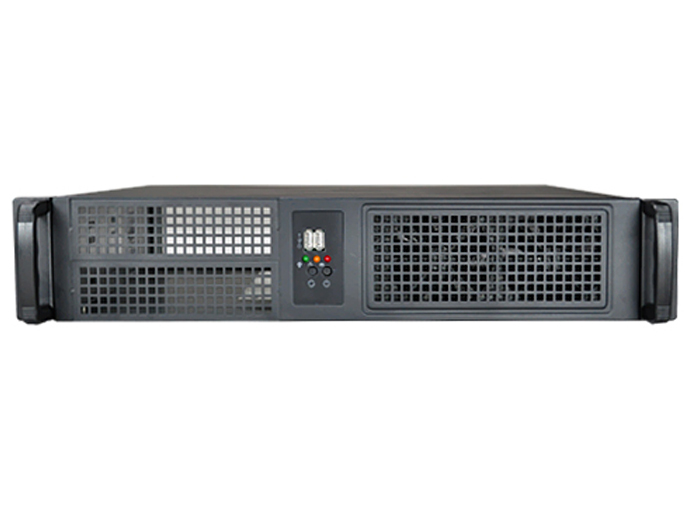

Due to the reduced chassis size, this case supports micro-ATX motherboards and up to four half-height expansion cards. Internal mounts can accommodate four 3.5-inch drives as well. There are two USB 2.0 ports on the front I/O panel, along with two 5.25-inch drive bays.
Due to the reduced chassis size, this case supports micro-ATX motherboards and up to four half-height expansion cards. Internal mounts can accommodate four 3.5-inch drives as well. There are two USB 2.0 ports on the front I/O panel, along with two 5.25-inch drive bays.
Model: Athena RM-2U2022S
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 2U Rackmount |
| Maximum Motherboard Size | MicroATX |
| Power Supply | None |
Dimensions | |
| Height | 88.9 mm (3.5 in) |
| Width | 482.6 mm (19.0 in) |
| Depth | 381 mm (15.0 in) |
| Net Weight | 5.7 kg (12.6 lbs) |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 4 |
Front Panel Connectors | |
| USB 2.0 | 2 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 2 x 80mm front |
