Motherboard
> ASUS P7H55D-M EVO
Motherboard
ASUS P7H55D-M EVO
[

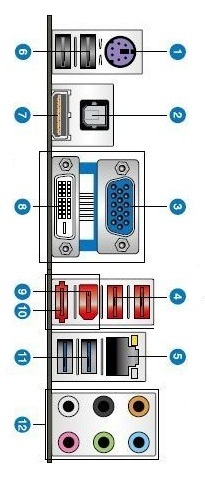

Rear Ports
][
Schematic
]
Manufacturer Description
Model:
Asus P7H55D-M EVO
Specifications:
Socket
1156
CPU Compatibility
Intel Core i3/i5/i7
Form Factor
ATX
Chipset Manufacturer
Intel
Chipset
Intel H55
Front Side Bus
QuickPath Interconnect
Network Connectivity
Gigabit Networking
Cooling System
Heatsink
Number of Fans
0
Memory Support
Type
DDR3
Maximum Speed
1333 MHz
Number of Slots
4
Maximum Size per Slot
4 GB
Maximum Amount Supported
16 GB
Onboard Video
Chipset Manufacturer
Intel
Processor Type
High Definition Graphics
Maximum Shared Memory
1748 MB
Maximum Resolution
1920x1200
DVI
1
VGA
1
HDMI
1
External Connections
USB 2.0
4
USB 3.0
2
Firewire
1
PS/2 Keyboard
Yes
Audio Out
Surround Sound (7.1)
Audio In
Line-In/Microphone
S/PDIF
Optical
External SATA
1
LAN (RJ45)
1
Internal Connections
USB 2.0
3 (providing 6 ports)
Firewire
1
IDE
2 Devices
SATA2
6
Expansion Slots
Slot 1
PCI Express x1
Slot 2
PCI Express 2.0 x16
Slot 3
PCI Express x1
Slot 4
PCI
Additional Information
SLI Compatible
No
Crossfire Compatible
No
RAID Support
none
Dimensions
Height
35 mm (1.4 inches)
Width
244 mm (9.6 inches)
Depth
244 mm (9.6 inches)
Net Weight
1 kg (2.2 lbs)
Manufacturer Links
Manufacturer
Information
Manufacturer
Specifications
