Asus Gryphon Z87 Ports

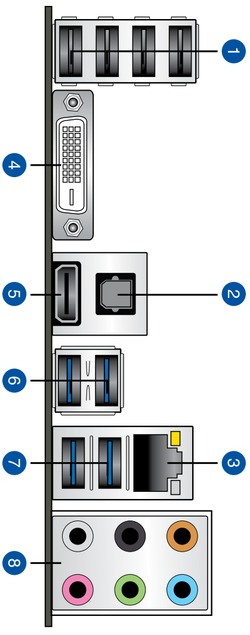

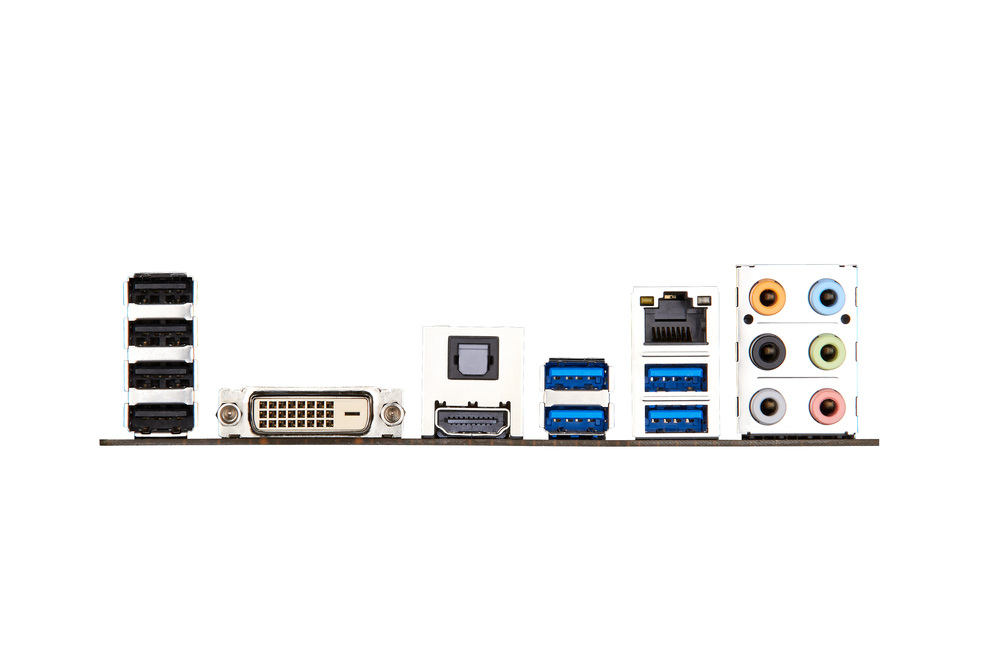

USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

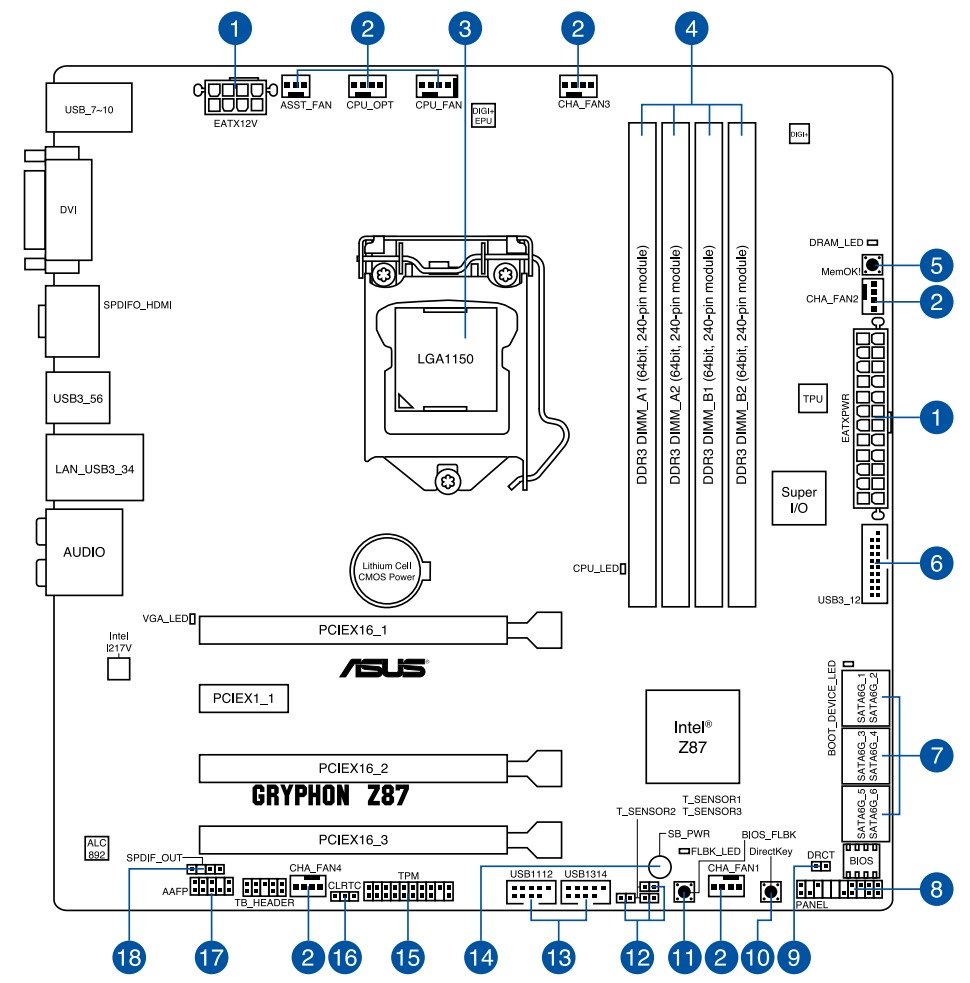

Asus Gryphon Z87 Schematic
In terms of connectivity, this board is well equipped. It has dual video outputs with DVI and HDMI, both analog and digital audio outputs, Intel gigabit Ethernet, and several USB ports: four each of USB 2.0 and 3.0, in fact. Four PCI-Express slots are also present, in varying sizes, with SLI and Crossfire supported as well.

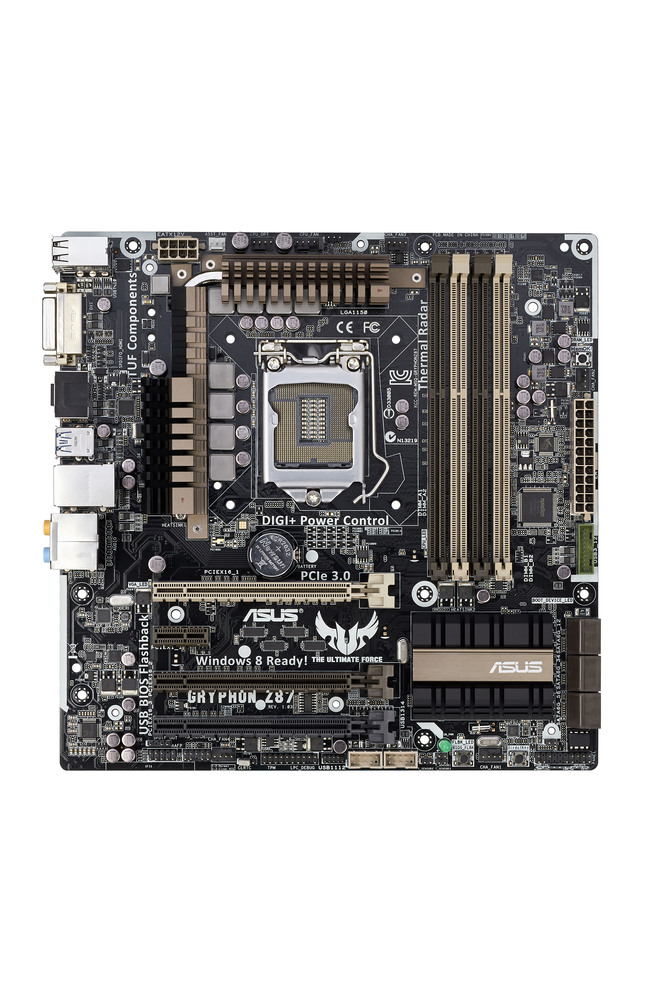

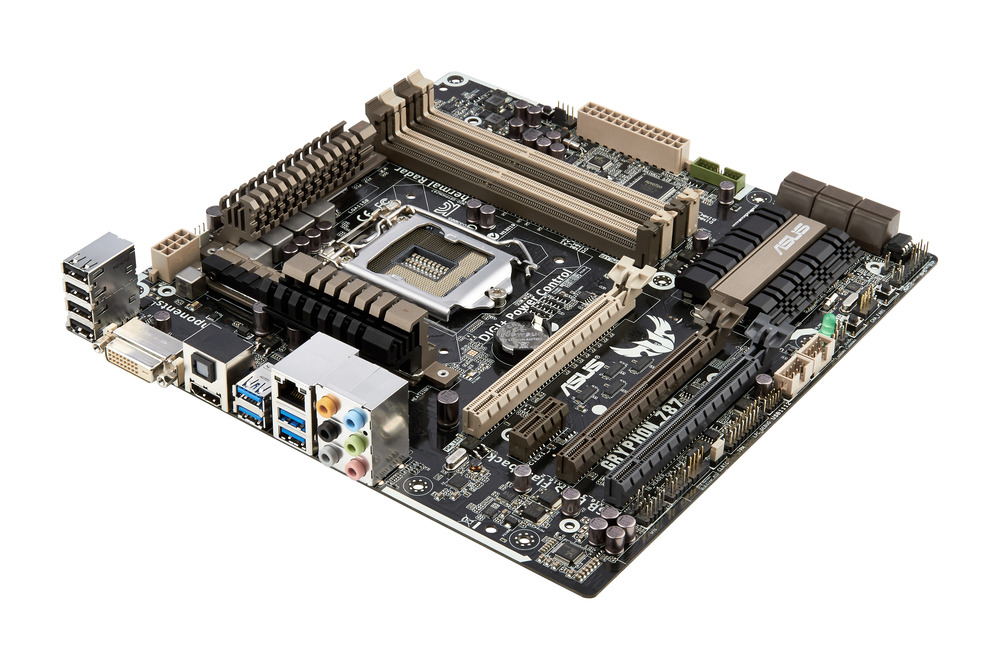

Model: Asus Gryphon Z87
Specifications
| Socket | 1150 |
| CPU Compatibility | Intel Socket 1150 for 4th Generation Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | Z87 |
| Front Side Bus | Direct Media Interface |
| Network Connectivity | Gigabit Networking |
| Network Controller | Intel I217V Gigabit LAN controller |
| Audio Controller | Realtek ALC892 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 1024 MB |
| Maximum Resolution | 4096x2160 |
| Maximum DVI Resolution | 1920x1200 |
| Maximum HDMI Resolution | 4096x2160 |
| DVI | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 6 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel Z87 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 2.0 x1 |
| Slot 3 | PCI Express 3.0 x8 in a x16 size |
| Slot 4 | PCI Express 2.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Bluetooth | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
