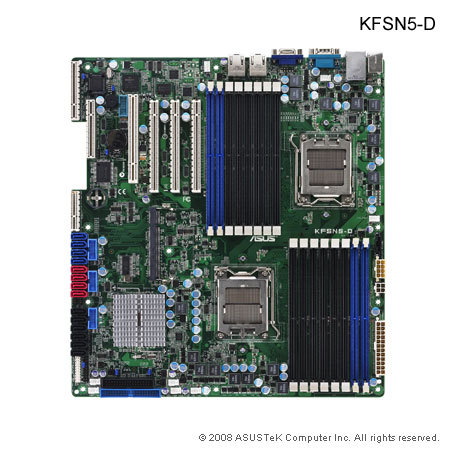

Asus KFSN5-D Main Picture
Zoom Button

Motherboard

Asus KFSN5-D

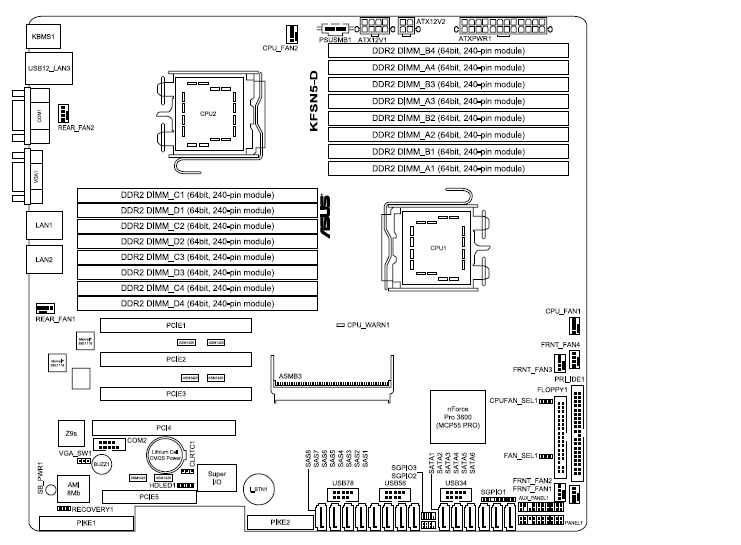

[ Rear Ports ][ Schematic ]

Asus KFSN5-D Picture 12831
Asus KFSN5-D Picture 12832


Manufacturer Description
Model: Asus KFSN5-D

Specifications:

Socket  Dual Socket F
CPU Compatibility  Opteron 2000-series
Form Factor  SSI
Chipset Manufacturer  nVidia
Chipset  nVidia nForce Professional 3600
Front Side Bus  HyperTransport
Network Connectivity  Gigabit Networking
Cooling System  Heatsink
Memory Support
Type  DDR2 ECC
Maximum Speed  800 MHz
Number of Slots  16
Maximum Size per Slot  4 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  XGI
Processor Type  Z9S
Maximum Shared Memory  32 MB
VGA  1
External Connections
USB 2.0  2
PS/2 Keyboard  Yes
PS/2 Mouse  No
LAN (RJ45)  2
Serial (COM) Port  1
Internal Connections
USB 2.0  3 (providing 6 ports)
SATA2  6
IDE  2 Devices
Floppy  1
Expansion Slots
Slot 1  PCI Express x4 in a x16 size
Slot 3  PCI
Slot 4  PCI Express x8 in a x16 size
Slot 5  PCI Express x8 in a x16 size
Slot 6  PCI Express x16
Dimensions
Height  305 mm (12.0 inches)
Width  330 mm (13.0 inches)
