Home > Build Your Own > Motherboard > Asus M5A88-V EVO
Asus M5A88-V EVO Main Picture
Zoom Button

Motherboard

Asus M5A88-V EVO

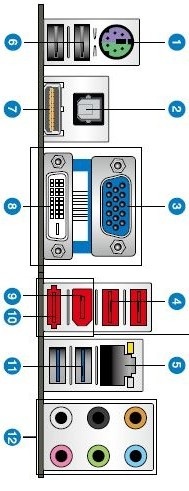

[ Rear Ports ][ Schematic ]

Asus M5A88-V EVO Picture 17635
Asus M5A88-V EVO Picture 17636
Asus M5A88-V EVO Picture 17637


Puget Systems Description

The Asus M5A88-V EVO is an ATX sized motherboard supports modern AMD socket AM3 and AM3+ processors (codenamed Bulldozer). It provides a rich feature set including integrated ATI Radeon 4250 graphics, both analog and digital audio output, and technologies like SATA 3 (6Gb/s) and USB 3.0.


Puget Systems Professional Advice
William George (Customer Service) Says:
This is a very flexible motherboard for the price. It is one of the few full ATX boards we carry with onboard video - saving the cost of a video card for those who don't need advanced graphics capabilities. If you do want higher-end options, though, it scales all the way up to two video cards in Crossfire! Like all our current AMD desktop motherboard, it also supports USB 3.0, SATA 6Gbps, and various other connection types.


Manufacturer Description
Model: Asus M5A88-V EVO

Specifications:
spacer
Socket  AM3+
CPU Compatibility  AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Form Factor  MicroATX
Chipset Manufacturer  AMD
Chipset  880G/SB850
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111E
Audio Controller  Realtek ALC 892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  4 GB
Maximum Amount Supported  16 GB
Onboard Video
Chipset Manufacturer  ATI
Processor Type  Radeon HD 4250 GPU
Maximum Shared Memory  1024 MB
Maximum Resolution  2560x1600
DVI  1
VGA  1
HDMI  1
External Connections
USB 2.0  4
USB 3.0  2
Firewire  1
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Internal Connections
USB 2.0  4 (providing 8 ports)
Firewire  1
SATA III 6.0Gbps  5
IDE  2 Devices
SATA Controllers
SATA III 6.0Gbps Controller 1  5 port - AMD SB850
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 2.0 x16
Slot 3  PCI
Slot 4  PCI
Slot 5  PCI Express x4 in a x16 size
Slot 6  PCI
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0, 1, 5, 10, JBOD
Bluetooth  No
BIOS Features
UEFI BIOS  No
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 inches)
Width  244 mm (9.6 inches)

Need more information? Email us your questions about the Asus M5A88-V EVO.


Manufacturer Links

Pricing History Knowing how pricing is trending is an important part of deciding when to buy. While computer hardware pricing most often decreases over time, it is useful to know if pricing is on the rise, or if pricing is in especially steep decline. This information can help you decide whether to buy quickly, or whether to wait for pricing to settle.
Asus M5A88-V EVO Pricing History Graph
