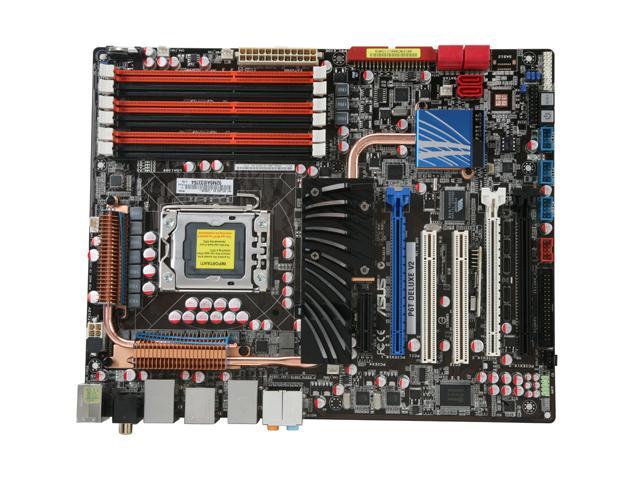

Asus P6T Deluxe V2

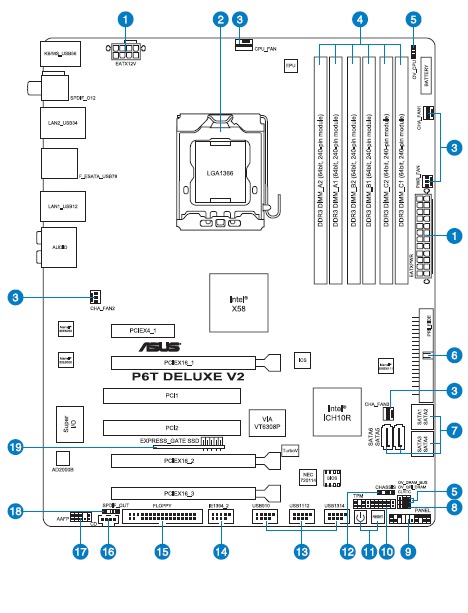

[ Rear Ports ][ Schematic ]

Manufacturer Description
Model: Asus P6T Deluxe V2

Specifications:

Socket	1366
CPU Compatibility	Core i7
Form Factor	ATX
Chipset Manufacturer	Intel
Chipset	X58
Front Side Bus	QuickPath Interconnect
Network Connectivity	Dual Gigabit Networking
Cooling System	Heat Pipes
Memory Support
Type	DDR3
Maximum Speed	1600 MHz
Number of Slots	6
Maximum Size per Slot	4 GB
Maximum Amount Supported	24 GB
External Connections
USB 2.0	8
Firewire	1
PS/2 Keyboard	Yes
PS/2 Mouse	No
Audio Out	Surround Sound (7.1)
Audio In	Line-In/Microphone
S/PDIF	Optical and Coaxial
External SATA	1
LAN (RJ45)	2
Internal Connections
USB 2.0	3 (providing 6 ports)
Firewire	1
SATA2	6
IDE	2 Devices
Floppy	1
Expansion Slots
Slot 1	PCI Express x4
Slot 2	PCI Express 2.0 x16
Slot 3	PCI
Slot 4	PCI
Slot 5	PCI Express 2.0 x16
Slot 6	PCI Express 2.0 x16
Slot 7	Slot not available on this board
Additional Information
SLI Compatible	Yes
Crossfire Compatible	Yes
RAID Support	0/1/5/10
Dimensions
Height	305 mm (12.0 inches)
Width	244 mm (9.6 inches)
