Asus P6T7 WS Supercomputer Main Picture
Zoom Button

Motherboard

Asus P6T7 WS Supercomputer

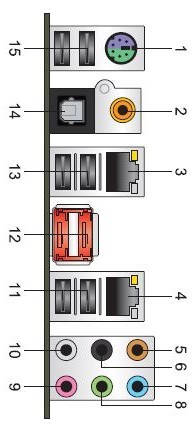

[ Rear Ports ][ Schematic ]

Asus P6T7 WS Supercomputer Picture 15760
Asus P6T7 WS Supercomputer Picture 15761
Asus P6T7 WS Supercomputer Picture 15762


Manufacturer Description
Model: Asus P6T7 WS Supercomputer

Specifications:
spacer
Socket  1366
CPU Compatibility  Core i7
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  X58
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking
Network Controller  Realtek 8111C
Audio Controller  AD2000B 8-Channel High Definition Audio CODEC
Cooling System  Heat Pipes
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  6
Maximum Size per Slot  4 GB
Maximum Amount Supported  24 GB
External Connections
USB 2.0  6
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
External SATA  2
LAN (RJ45)  2
Internal Connections
USB 2.0  3 (providing 6 ports)
SATA II 3.0Gbps  6
SAS  2
SATA Controllers
SATA II 3.0Gbps Controller 1  6 port - Intel ICH10R
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 2  PCI Express 2.0 x8 in a x16 size
Slot 3  PCI Express 2.0 x16
Slot 4  PCI Express 2.0 x8 in a x16 size
Slot 5  PCI Express 2.0 x16
Slot 6  PCI Express 2.0 x8 in a x16 size
Slot 7  PCI Express 2.0 x16
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0/1/5/10
Dimensions
Height  305 mm (12.0 inches)
Width  244 mm (9.6 inches)
