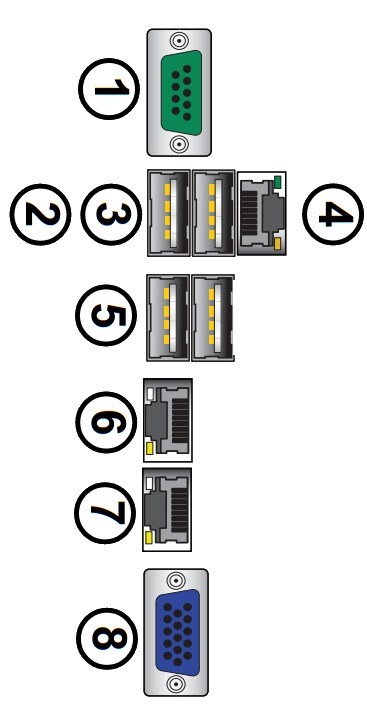

Supermicro X9QRI-F+ Ports
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.

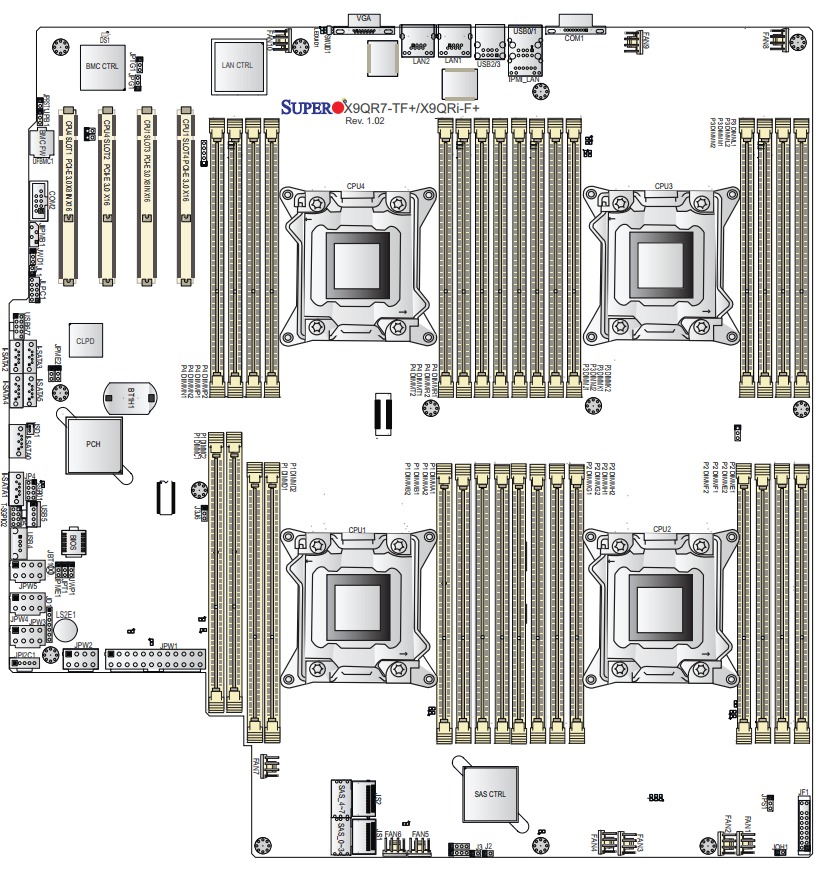

Supermicro X9QRI-F+ Schematic
Note: As this is a server/workstation motherboard, some desktop features are not present: specifically, standby/sleep functionality is not guaranteed.

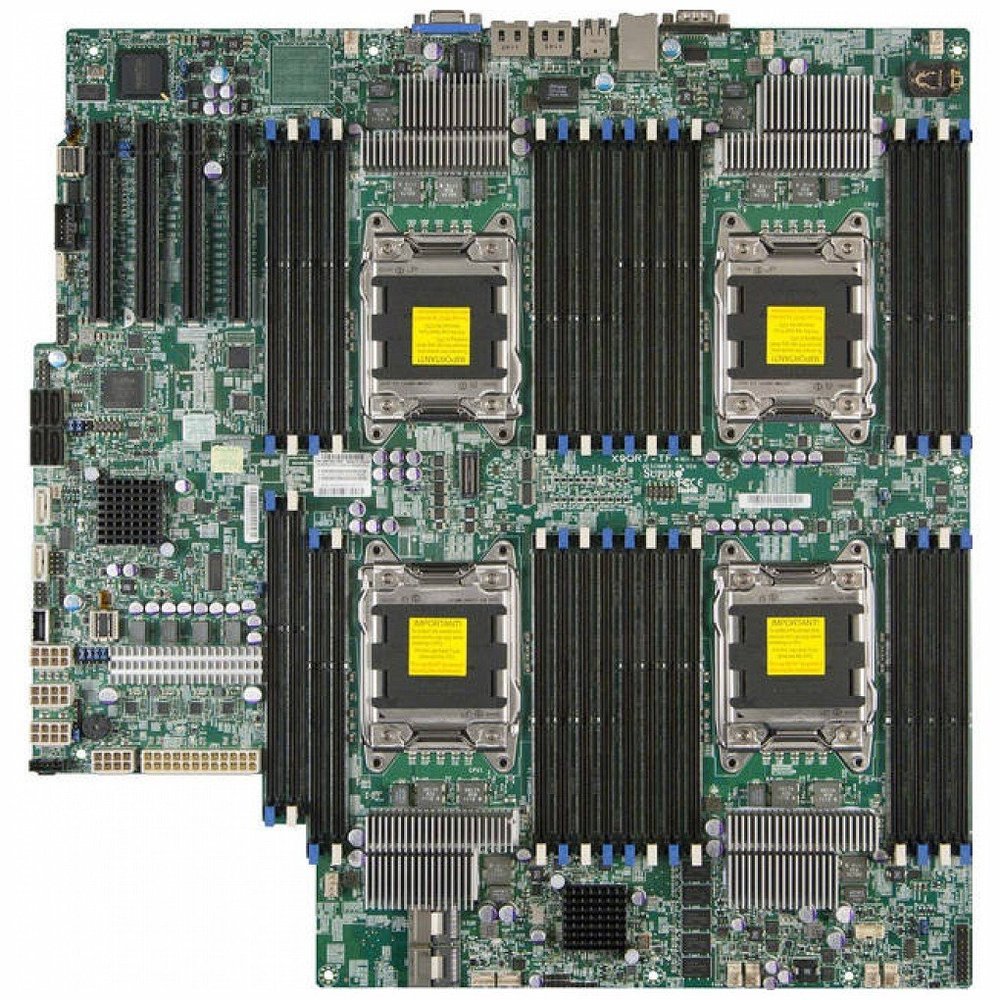

Model: Supermicro MBD-X9QRi-F+ -B
Specifications
| Socket | Quad 2011 |
| CPU Compatibility | Intel Xeon processor E5-4600 family |
| Form Factor | Other |
| Chipset Manufacturer | Intel |
| Chipset | Intel C602 |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel i350 Dual port GbE LAN |
| Cooling System | Heatsink |
| Color | Green |
Memory Support | |
| Type | DDR3 ECC Registered |
| Maximum Speed | 1600 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| Processor Type | G200 (Nuvoton WPCM450 BMC with graphic controller) |
| VGA | 1 |
External Connections | |
| USB 2.0 | 4 |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| SATA II 3.0Gbps | 4 |
| SATA III 6.0Gbps | 2 |
| Serial (Com) | 1 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4 port - Intel C602 |
| SATA III 6.0Gbps Controller 1 | 2 port - Intel C602 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 3.0 x8 in a x16 size |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| RAID Support | 0,1,5,10 |
BIOS Features | |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 416.6 mm (16.4 in) |
| Width | 426.5 mm (16.8 in) |
Includes a built-in TPM module
