Zotac Motherboard
Home > Motherboard > Zotac IONITX-F-E ATOM N330
Zotac IONITX-F-E ATOM N330 Main Picture
Zoom Button

Motherboard

Zotac IONITX-F-E ATOM N330

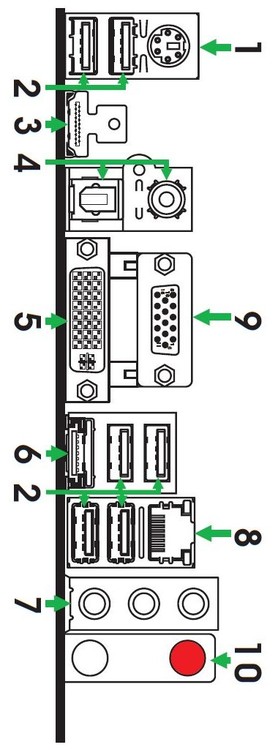

[ Rear Ports ][ Schematic ]

Zotac IONITX-F-E ATOM N330 Picture 14283
Zotac IONITX-F-E ATOM N330 Picture 14284
Zotac IONITX-F-E ATOM N330 Picture 14285
Zotac IONITX-F-E ATOM N330 Picture 14286
Zotac IONITX-F-E ATOM N330 Picture 14287
Zotac IONITX-F-E ATOM N330 Picture 14395
Zotac IONITX-F-E ATOM N330 Picture 14396


Puget Description

Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC® ION platform. The mini-ITX form factor ZOTAC® ION combines a high-performance NVIDIA® ION graphics processor with a power-efficient Intel® Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, & productivity and HD video playback tasks.

NVIDIA® PureVideo HD technology harnesses the power of the ION's 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the ION GPU for flawless HD and superior SD video playback.


Manufacturer Description
Model: Zotac IONITX-F-E

Specifications:

CPU Compatibility  Intel ATOM N330
Form Factor  Mini-ITX
Chipset Manufacturer  nVidia
Chipset  MCP7A-ION
Front Side Bus  533Mhz
Network Connectivity  Gigabit Networking + 802.11 G/N
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR2
Maximum Speed  800 MHz
Number of Slots  2
Maximum Size per Slot  2 GB
Maximum Amount Supported  4 GB
Onboard Video
Chipset Manufacturer  nVidia
Processor Type  GeForce 9400M
Maximum Shared Memory  512 MB
Maximum Resolution  1920x1200
DVI  1
VGA  1
HDMI  1
Notes:  HDCP Compliant
External Connections
USB 2.0  6
PS/2 Keyboard  Yes
PS/2 Mouse  No
Audio Out  Surround Sound (5.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
External SATA  1
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
SATA2  3
Expansion Slots
Slot 1  PCI Express x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,0+1
Dimensions
Height  38.4 mm (1.5 inches)
Width  177.6 mm (7.0 inches)
Depth  170 mm (6.7 inches)
Net Weight  0.5 kg (1.1 lbs)

Description:

Graphics Engine Clock: 450MHz
Shader Clock: 1100MHz
16 Stream Processors.
Supports DirectX 10
nVidia PureVideo HD Support.
nVidia CUDA Ready.
nVidia PhysX Ready.

Includes 802.11n wireless. Mini PCI-Express slot is used by wireless card by default.


Manufacturer Links

Pricing History Knowing how pricing is trending is an important part of deciding when to buy. While computer hardware pricing most often decreases over time, it is useful to know if pricing is on the rise, or if pricing is in especially steep decline. This information can help you decide whether to buy quickly, or whether to wait for pricing to settle.
Zotac IONITX-F-E ATOM N330 Pricing History Graph
