Asus Geforce GTX 670 2GB DirectCU II

Asus Geforce GTX 670 2GB DirectCU II Picture 20379


Manufacturer Description
Model: Asus GTX670-DC2-2GD5

Specifications:
spacer
Chipset Manufacturer  nVidia
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum DVI Resolution  2560x1600
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  915 MHz
Boost Speed  980 Mhz
Stream Processors  1344
Memory Specifications
Video Memory  2GB
Memory Type  GDDR5
Memory Speed  3004 MHz
Memory Bus Width  256-bit
Bandwidth  192.2 GB/s
Additional Information
Cooling System  Quiet Fan and Heatsink
DirectX Support  DirectX 11
CUDA Support  3.0
OpenGL Support  4.2

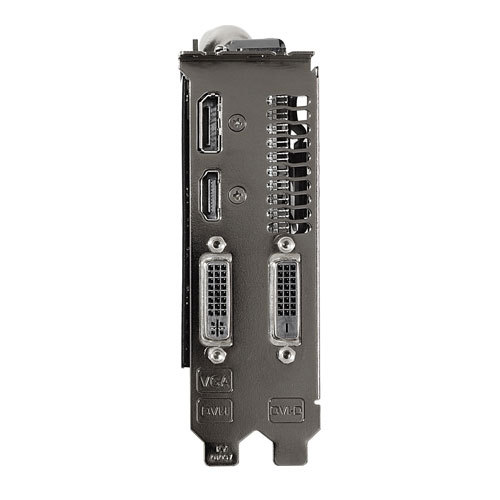

Outputs
Port 1  Dual-Link DVI
Port 2  DVI
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  6-pin PCI-E
Plug 2  6-pin PCI-E
Dimensions
Length  272 mm (10.7 inches)
Height  137 mm (5.4 inches)
Width  43 mm (1.7 inches)

Maximum displays using Nvidia Surround: 3

Due to the way this cooler operates, it is highly susceptible to increased system temperatures caused by items such as an additional video card operating in SLI. For that reason, we do not recommend using two of these cards in SLI unless the chassis has a very high amount of airflow.
