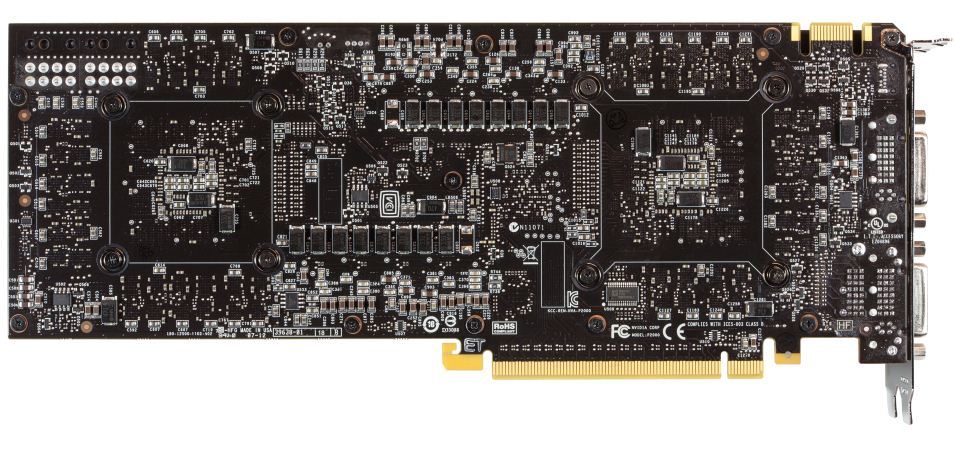

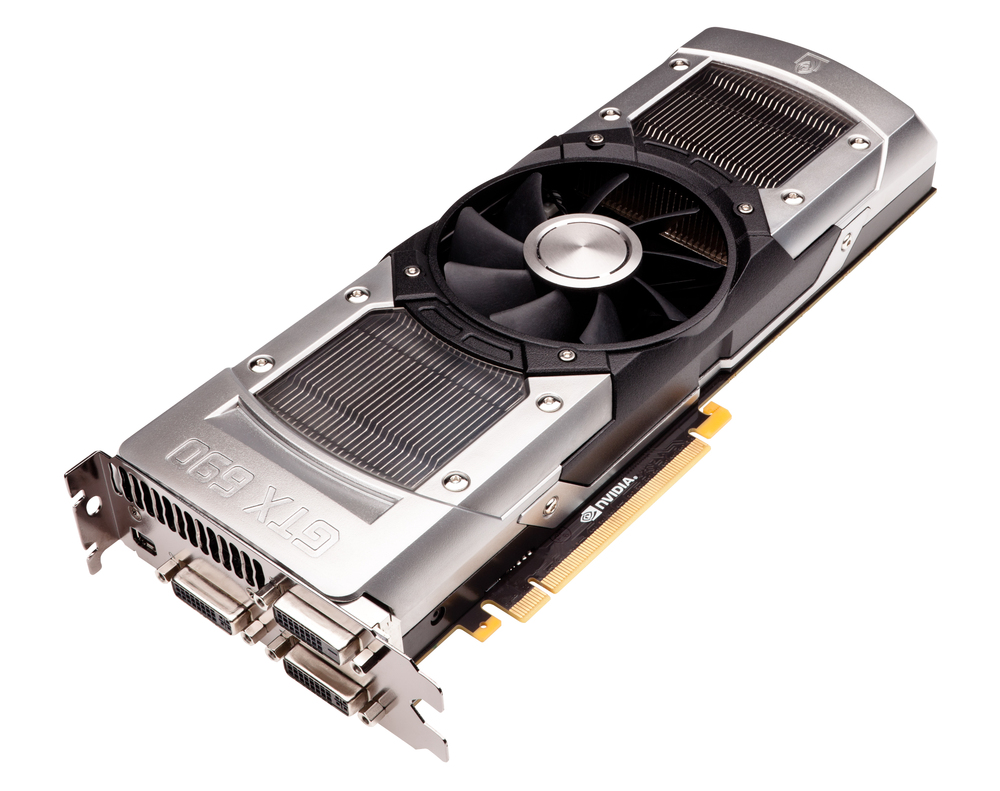

Model: NVIDIA GTX 690
Specifications
| Chipset Manufacturer | nVidia |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 4096x2160 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 915 MHz |
| Boost Speed | 1019 Mhz |
| Stream Processors | 3072 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR5 |
| Memory Speed | 1502 MHz |
| Memory Bus Width | 512-bit |
| Bandwidth | 384 GB/s |
Additional Information | |

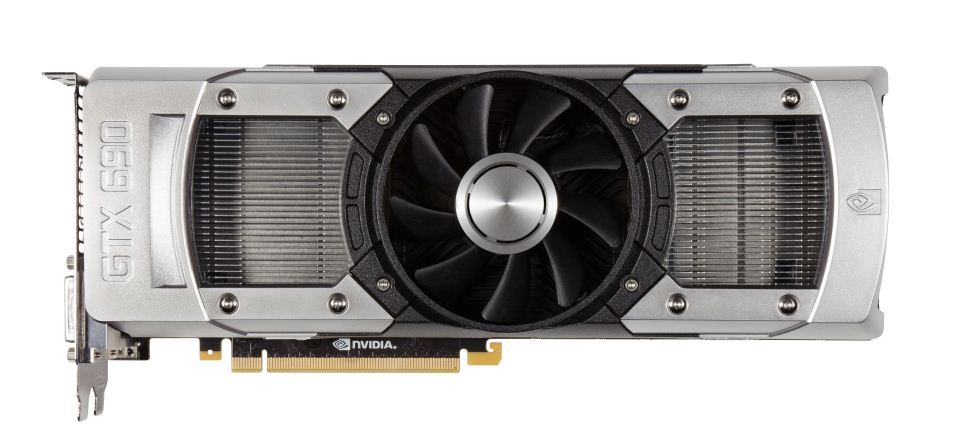

| Cooling System | Blower Type |
| DirectX Support | DirectX 11 |
| CUDA Support | 3.0 |
| OpenGL Support | 4.2 |

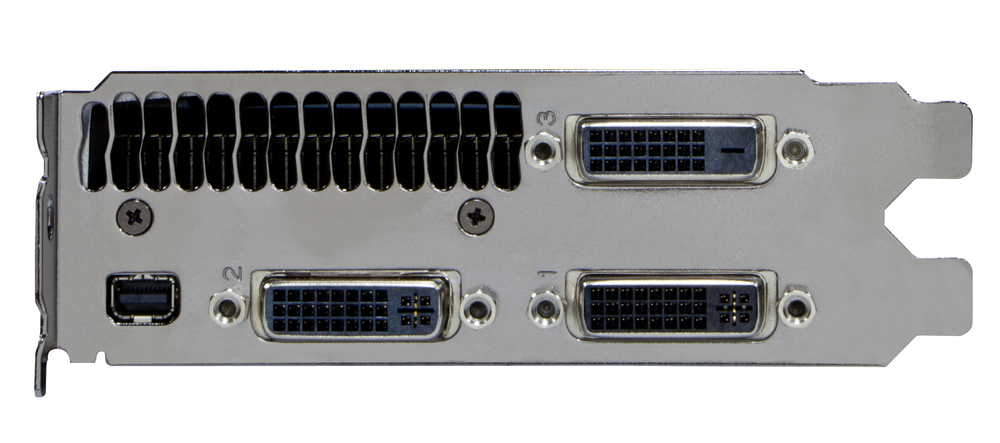

Outputs | |
| Port 1 | Dual-Link DVI |
| Port 2 | Dual-Link DVI |
| Port 3 | Dual-Link DVI |
| Port 4 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | 8-pin PCI-E |
Dimensions | |
| Length | 280 mm (11.0 in) |
| Height | 111 mm (4.4 in) |
| Width | 34 mm (1.3 in) |
Maximum displays using Nvidia Surround: 3
