Technology Primer: AMD FX Processors (Bulldozer)

Written on October 15, 2011 by Matt Bach


AMD has recently announced the launch of their new FX series of processors (codenamed Bulldozer). Featuring an increase in cache size, up to 8 cores per CPU, and a new 32nm manufacturing process, Bulldozer should be both faster and cooler than its predecessor. Even better, these new CPU's can be used in any AM3+ motherboard after updating the BIOS to allow Bulldozer support. To start this article off, lets take a look at what products are available at launch.

Meet Bulldozer

At launch, there will be four Bulldozer processors available, with a somewhat limited naming scheme. The only number in the model name that means anything specific is the first number, which denotes the number for cores. For example: a model number of FX-6XXX would be a 6-core CPU. The remaining three numbers do not mean anything specific, but indicate relative performance. A FX-X150 is faster than a FX-X120, but the model number alone does not show by how much.

The specs for the four launch CPU's are below:

Model Stock Frequency Turbo Core Frequency # of Cores Total L2 Cache L3 Cache Thermal Output Est. Street Price
FX-8150 3.6Ghz 4.2Ghz 8 8MB 8MB 125W $245
FX-8120 3.1Ghz 4.0Ghz 8 8MB 8MB 125W $205
FX-6100 3.3Ghz 3.9Ghz 6 6MB 8MB 95W $165
FX-4100 3.6Ghz 3.8Ghz 4 4MB 8MB 95W $115

What is interesting is that these launch CPU's take over almost exactly when the previous generation (Phenom II) left off. For example, the highest-end 6-core Phenom II ran at 3.3Ghz, with 3 and 6MB of L2 and L3 cache respectively. The new FX-6100 has the exact same frequency, but twice the L2 cache and a third more L3 cache. Bulldozer is the first true 8-core AMD processor, so there is no direct comparison to the previous generation, but the frequency range is very close to the Phenom II 6-core processors.

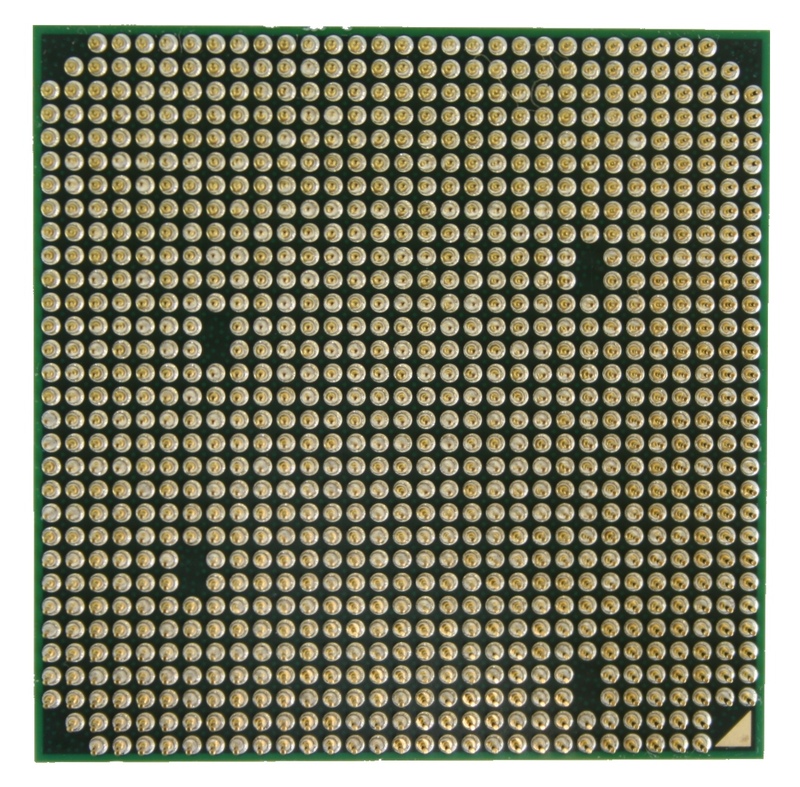

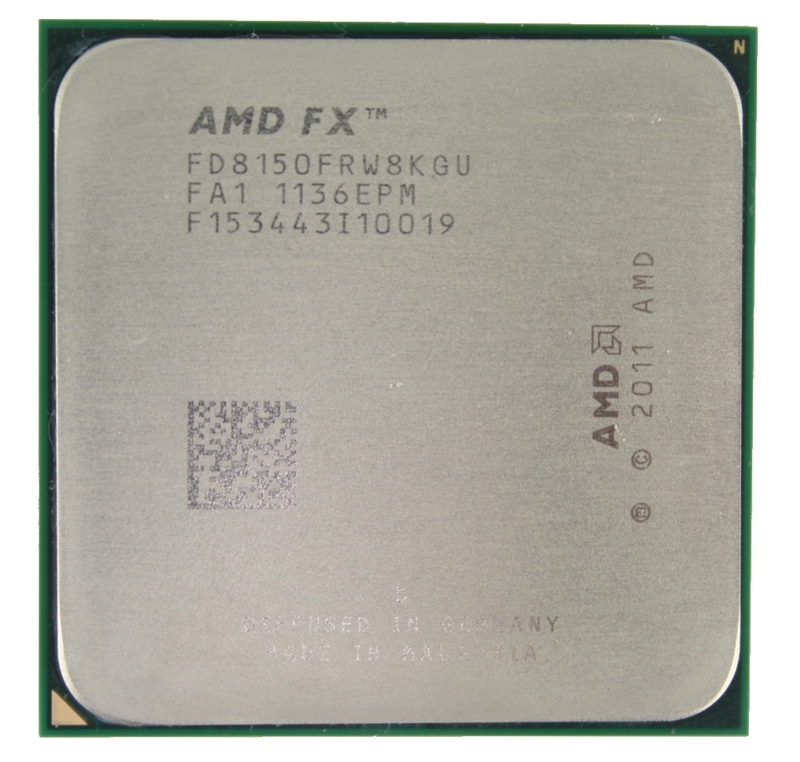

Bulldozer top view Bulldozer underside view


Detailed Features

Below is a quick breakdown of the features of the Bulldozer FX series of processor versus the Phenom II series.

  AMD FX (Bulldozer) AMD Phenom II
AMD64 Technology Yes Yes
Simultaneous 32/64-bit Computing Yes


L1 Cache per core 128KB(64KB+64KB) 128KB(64KB+64KB)
L2 Cache per core 1MB 512KB
L3 Cache Up to 8MB Up to 6MB
HyperTransport Technology One 16-bit link at up to 5600MT/s
16.0 GB/s I/O Bandwidth
One 16-bit link at up to 4000MT/s
16.0 GB/s I/O Bandwidth
Memory Support Up to DDR3-1866 Up to DDR2-1066 and DDR3-1333
Memory Controller Width 128-bit 128-bit
Memory Bandwidth Up to 21 GB/s Up to 21 GB/s
Processor-to-system Bandwidth  Up to 37 GB/s Up to 37 GB/s
Process Technology 32nm 45nm
Socket AM3+ AM3

The increase in L2 and L3 cache is very important improvement from a performance perspective. In almost all cases, more cache directly results in an increase in performance. The increased memory frequency support can also benefit performance, but only becomes a factor when using RAM faster than DDR3-1333.

The process technology also does not directly affect performance, but it does two things that can potentially increase performance. The first is that since the manufacturing process is smaller, there is the potential to fit more transistors into the same amount of space. Even at launch, this is already noticeable since AMD is able to fit a full 8 cores into the same space that could previously only handle 6 cores. Secondly, a smaller manufacturing process results in lower temperatures, which in turn gives the processor more thermal headroom.

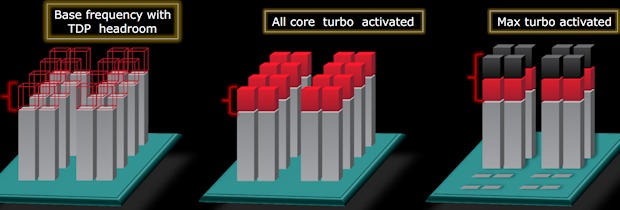

This thermal headroom can be taken advantage of with AMD's Turbo Core Technology which allows the processor to automatically overclock individual cores as long as it can stay below a thermal and power threshold. The technicalities behind this technology are very complex, but what it comes down to is if an application is causing a heavy load, the processor can overclock the cores that are in use. Depending on the number of cores being used (more cores means less overclock per core) and the thermal/power headroom, this overclock can be as much as a full 1Ghz, which can give a very noticeable performance boost.


On paper, Bulldozer looks to be a great addition to AMD's line of CPU's. We are currently in the process of thoroughly testing a FX-8150 CPU, so be sure to check back in the coming weeks for our in-depth performance review.

Edit 10/25/2011: Performance review of the AMD FX-8150 CPU is published!
You can view it here
