Overclocking Failed Errors

Written on August 6, 2012 by Popular
Share:

Introduction

A computer's BIOS controls all the basic settings of your computer including those necessary for your computer to start Windows normally. All these settings should already be set when you receive your computer, but in certain instances the BIOS may “forget” all the custom settings and revert back to the default settings. This can happen if the motherboard's CMOS battery loses power (the BIOS requires a constant small amount of voltage to retain these settings) or if the system has an unexpected restart or shutdown. If this happens, many different errors can occur from the system halting during POST to give an "Overclocking Failed!" error, or even bluescreens when Windows attempts to load.

Luckily, most Asus motherboards feature O.C. profiles, which allows a user to save their BIOS settings to a memory chip on the motherboard that is non-volatile (does not need a constant voltage source). This means that even if the BIOS gets reset due to a power loss or the CMOS battery dies, the saved O.C. profile is available for you to quickly restore your BIOS settings from. All of the systems shipped by Puget Systems include one or more O.C. Profiles (depending on if you have CPU overclocking or not) which can be used to easily restore your system's BIOS settings

All motherboards are slightly different, so while some of the wording may be slightly different than the images below, the general directions should apply for most ASUS motherboards that support O.C. Profiles.

Accessing the BIOS

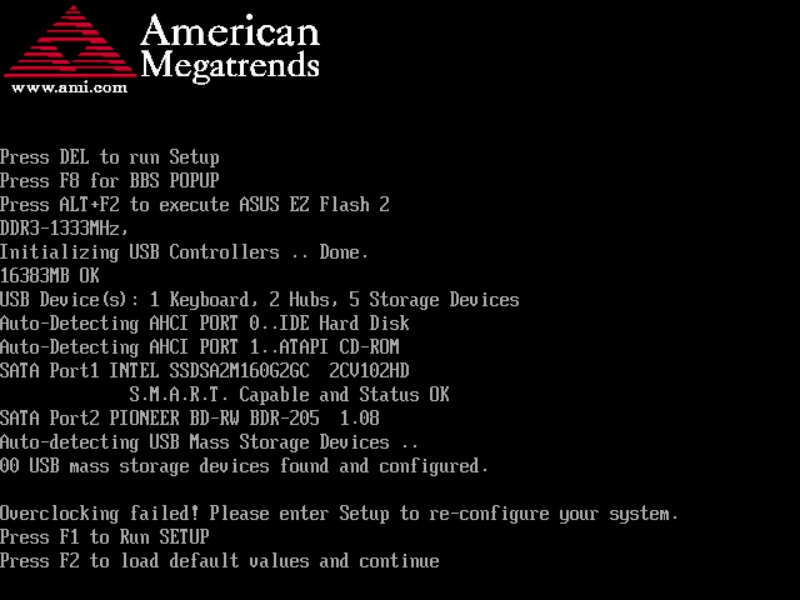

To restore your BIOS using an O.C. Profile, you must first enter the BIOS setup utility. If you are receiving an "Overclocking Failed!" error, when you turn on the system it should halt at a screen with the option to hit "F1" to enter the BIOS setup. If you are not given this option, simply hit "DELETE" when the system is first turned on.

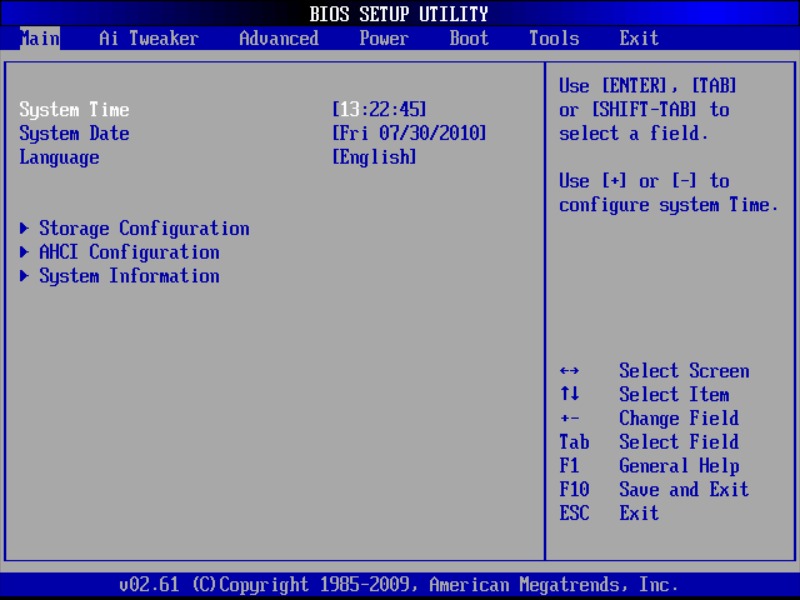

Standard BIOS Visual BIOS

Once you are in the BIOS setup utility, you will see one of two different types of BIOS depending on your motherboard. If your screen looks like the one on the left, you have a standard BIOS and should click here for further instructions. If the screen looks like the one on the right, you have a Visual BIOS and should click here for further instructions.

Standard BIOS OC Profiles

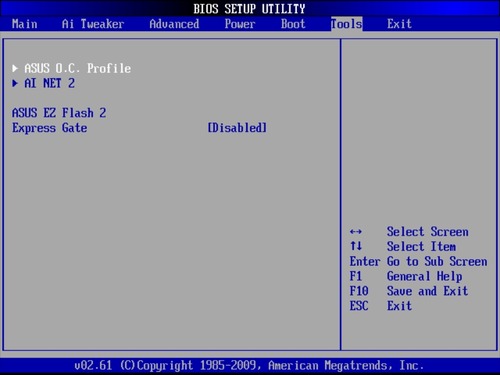

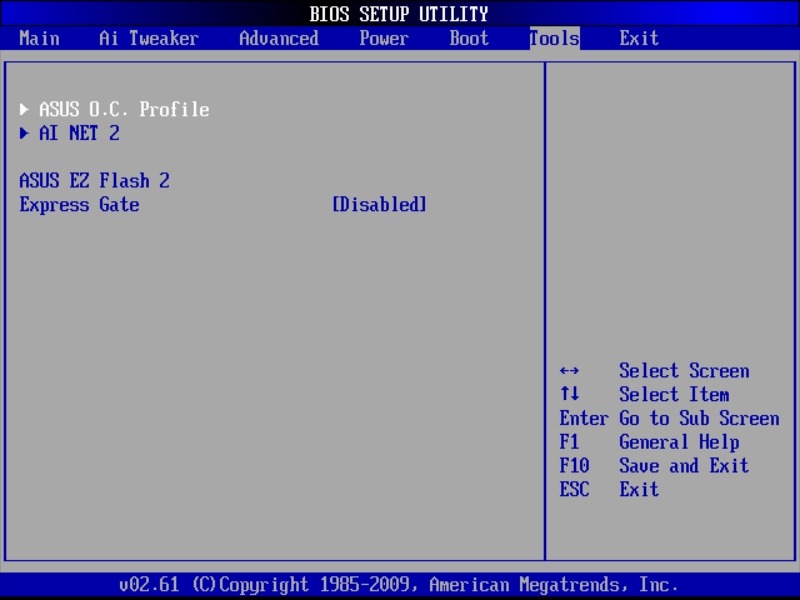

Using the right arrow key, first navigate to the "Tools" menu. In that menu, select "ASUS O.C. Profile" and press enter.

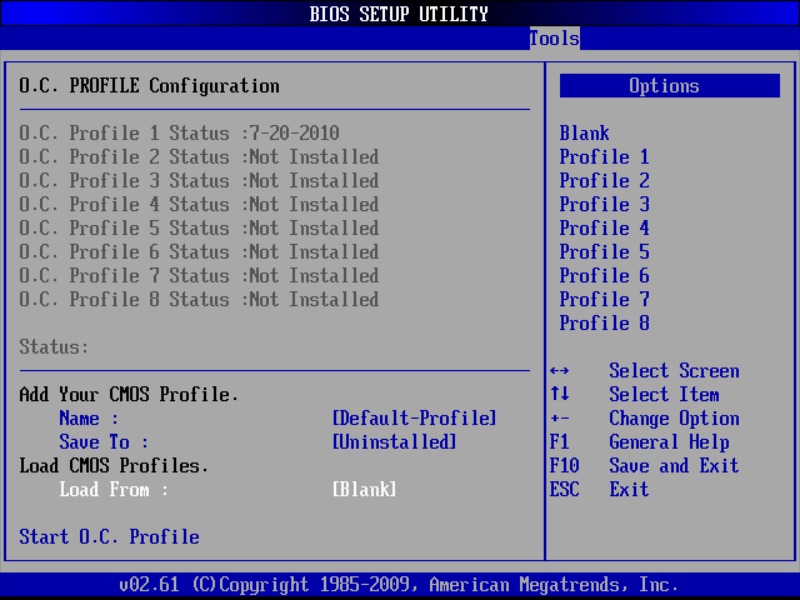

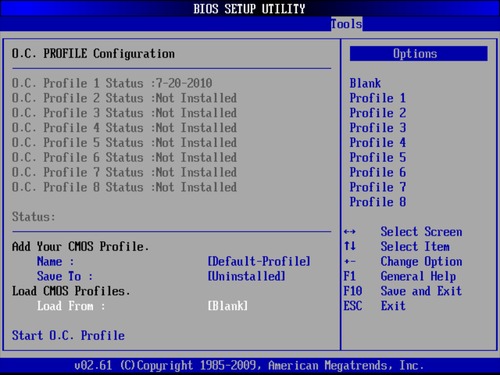

At this point, you will be see the ASUS O.C. Profile options. The most important information here is the list of O.C. Profile names. At Puget Systems, we name profiles according to the date it was saved, so unless you have saved a new profile, the profile name should be similar to the date you either purchased your system. If you ordered your system with CPU overclocking, a second profile will be saved to Profile 2 which includes the overclock settings.

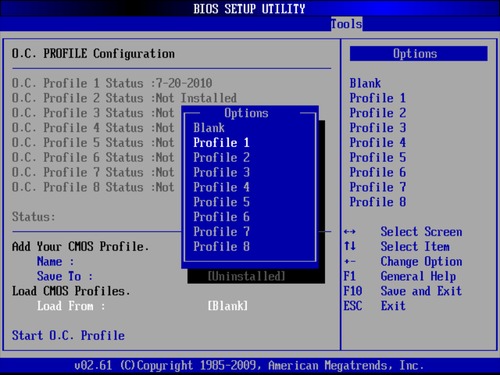

To restore this profile, use the down arrow key to highlight to the "Load from: [Blank]" option. Press enter and it will give you a list of profiles to choose from.

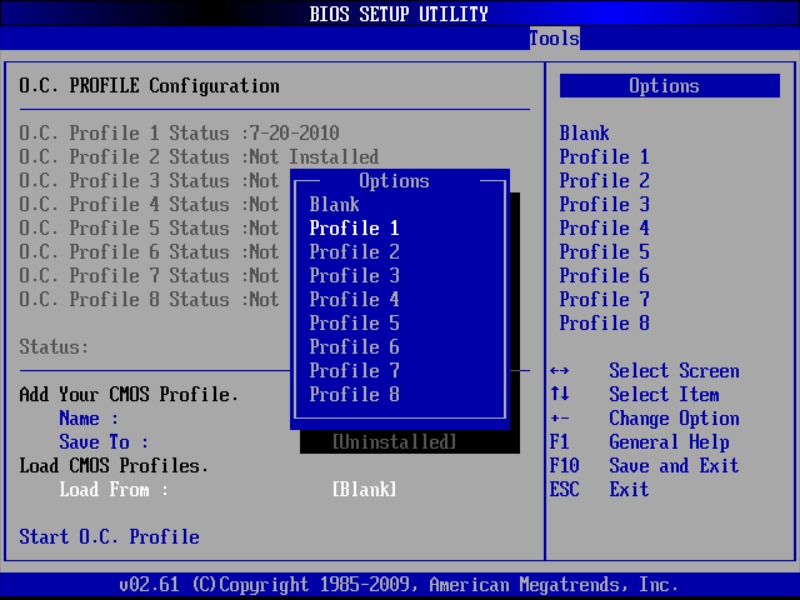

Simply highlight the appropriate profile (in this case Profile 1) and hit enter. At this point, the BIOS settings should be correct, but they still need to be saved. To save the BIOS settings and exit the BIOS setup utility, either hit F10 on the keyboard, or hit Esc on the keyboard to go back to the main BIOS setup screen.

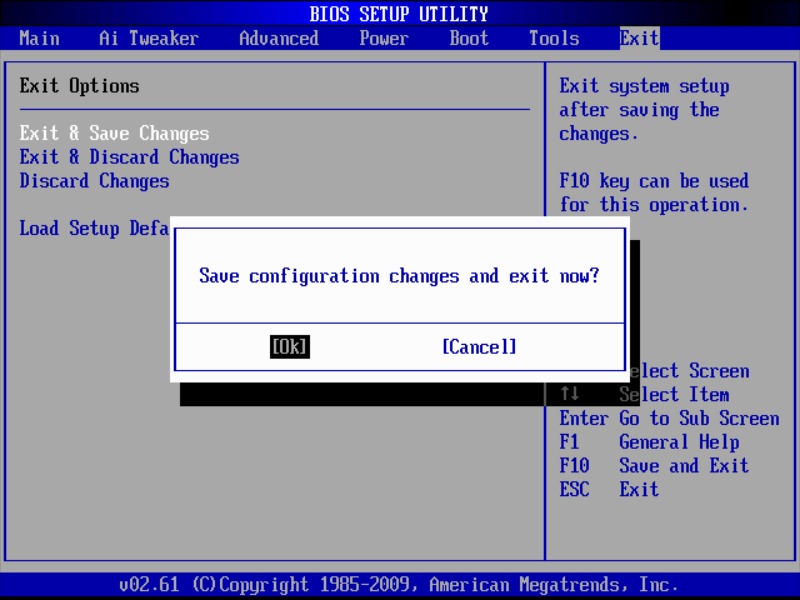

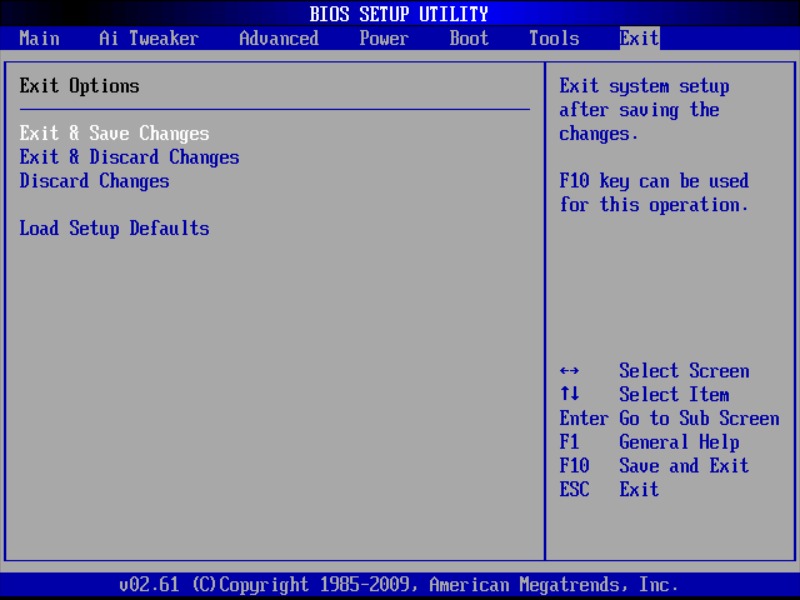

If you opted to not simply hit "F10", use the right arrow key to navigate to the "Exit" menu. From here, highlight the "Exit & Save Changes" option and hit enter.

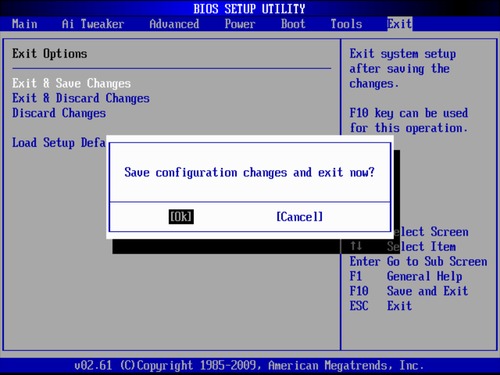

You will be prompted with a confirmation window where you should select "Ok" and hit enter.

Note that you may still get a warning about your system not starting correctly last time. This is normal. Just choose to start normally and the message won't pop up the next time you boot.

Visual BIOS OC Profiles

First, use the mouse to click on the button on the top-right of the screen labeled "Exit/Advanced Mode", then click on the "Advanced Mode" button that comes up.

Using either the mouse or the right arrow key, navigate to the "Tool" menu which is the tab farthest to the right. In that menu, either click on "ASUS O.C. Profile" with the mouse, or use the down arrow key to highlight it and press enter.

At this point, you will be see the ASUS O.C. Profile options. The most important information here is the list of O.C. Profile names. At Puget Systems, we name profiles according to the date it was saved, so unless you have saved a new profile, the profile name should be similar to the date you either purchased your system. If you ordered your system with CPU overclocking, a second profile will be saved to Profile 2 which includes the overclock settings.

To restore this profile, use the down arrow key to highlight to the "Load from Profile" option. Type in the number of the profile you want to restore (in this case "1") and hit enter.

A confirmation window will come up on which you should select "Yes". At this point, the BIOS settings should be correct, but they still need to be saved. To save the BIOS settings and exit the BIOS setup utility, either hit F10 on the keyboard to save the settings, then Esc to exit the BIOS setup utility; or click on the "Exit" button at the top-right corner of the screen.

If you opted to click on the "Exit" button, simply select the "Save Changes & Reset" option to save the BIOS settings and restart your computer.

Note that you may still get a warning about your system not starting correctly last time. This is normal. Just choose to start normally and the message won't pop up the next time you boot.

Tags: Support, Motherboards, CMOS, BIOS, OC Profiles
Vadim Bouga

Help I edited some stuff regarding voltages and memory frequency and now my monitor isnt turning on so i cant get to BIOS setup. how to i go back?

Posted on 2012-10-29 17:01:30
PCC_Micah

Many of the newer Asus motherboards have a 'MemOK' button next to the RAM slots that resets the voltages and timings of the RAM back to auto so that the system can boot. If your board doesn't have this button then the next best option is to reset the BIOS by unplugging power from the system, taking out the CMOS battery on the board for 30 seconds then replacing it. We can guide you through reloading your OC Profile after that. Send an email to support@pugetsystems.com or give us a call at (888) 784-3872 and we'll get you fixed up.

Posted on 2012-10-29 17:11:34
Tomaske2

I have same prob but
To restore this profile, use the down arrow key to highlight to the "Load from Profile" option. Type in the number of the profile you want to restore (in this case "1") and hit enter.I have 0 profile's installed all say not installed what to do?email = tomaske2@hotmail.com

Posted on 2013-01-30 00:09:08
PCC_Christopher

If you're using an ASUS motherboard and you're getting overclocking failed on a non-Puget system, the best bet is to just press enter BIOS setup and then press F10 to save and restart.  Unless there's some more serious issue going on with the board, that will likely clear things up, as it will just tell the board to keep using the same settings.
The reason we need to restore the profile on our systems is that we use enhanced BIOS settings, which can sometimes be incompatible with the motherboard's default settings.  (A good example of that is configuring the SATA controller with AHCI mode vs the common default IDE compatibility mode.  Swapping that setting tends to cause issues with an already installed Windows copy.)

Posted on 2013-01-30 02:00:17
Tomaske2

But If I just press save and exit the smae problem begins over and over again

Isn't there any solution? I noticed that my ssd is configured on AHCI

I NEVER OVERLCOCKED IN MY LIFE...

System:
►CASE NZXT PHANTOM 410 GunMetal
►LG FLATRON W2453V 24inch x2
►i7 3770k 3,9ghz
►ASUS HD 6870 x2
►ASUS-P8Z77-V LX DDR3 Socket 1155
►Corsair 16 GB DDR3
►Intel 520 SSD series 120 G
►Western digital 1000 G
►Mice Razer Deathadder
►Mouse pad Razer Goliathus
►Logitech G19 Keyboard
►Corsair H80 Hydro series CPU COOLER
►Logitech G35 headset
►Voeding CORSAIR AX850
►Corsair SP 2500 Box system
plz help

Posted on 2013-01-30 09:44:15
PCC_Christopher

The issue doesn't have to happen via overclocking.  That's just ASUS's poor terminology.  If the issue keeps happening, reset your CMOS via the CLRTC jumper (your motherboard manual will tell you how to find the jumper), then double check your CMOS settings.  Save and exit, then restart your computer. If it's still doing it at that point, there's likely a more complex issue going on and you'll want to contact ASUS to see if they have any troubleshooting options.

Posted on 2013-01-30 23:56:57
Milan Billimoria

i dont think that this is a motherboard problem, coz this thing happend with me as well i changed my motherboard but still i m getting the same issue, this is basically the power supply prob ,u may not have quality power supply i would change my psu and ill grab a new higher quality 1.

Posted on 2013-12-09 18:13:58
Tomaske2

Thx gonna try tomorrow and if that isn't helping i'm sending it back to my store (warranty) then they can fix it ! much thx allready keep you posted

Posted on 2013-01-31 00:05:10
Ken

Thank you! I reset my BIOS to the "default setting" and it resulted in the dreaded BSOD. Could get into Windows via safe mode, couldn't get in via Windows Startup Repair... It's not clear in the BIOS that the O.C. Profile Configuration menu that any profiles have been saved, because on the left they are grayed out, but sure enough, resetting to Profile 1 worked like a charm!!!

Posted on 2017-05-02 03:49:46
Ken

That should read "Couldn't get into Windows via safe mode..."

Posted on 2017-05-02 03:51:22
Samyntha Hubbard

Hi Ken! We are so glad to hear that resetting the profile resolved your issues!

Posted on 2017-05-02 12:15:23
sebastian

I had this problem for months and I found out the ram in my computer went bad, try checking the ram and seeing if that is the problem!!

Posted on 2017-05-26 16:31:02
Sanjay Pishavadia

hi, i followed the bios instructions, but it helped nothing and, it still turns on, but shows nothing. can you help?

Posted on 2017-11-12 21:39:42
Ben Nelson

Hello Sanjay,
Thank you for sharing. Did you have an option to load a profile or was there no option? All Puget Systems are created with a set BIOS profile. If it is not a Puget System, you may need to create a new profile based on recommended guidelines set by your hardware manufacturer's approved settings. You could also try reseating your CMOS battery or using the jumper to reset it. Hopefully this helps!

Posted on 2017-11-13 20:53:32
