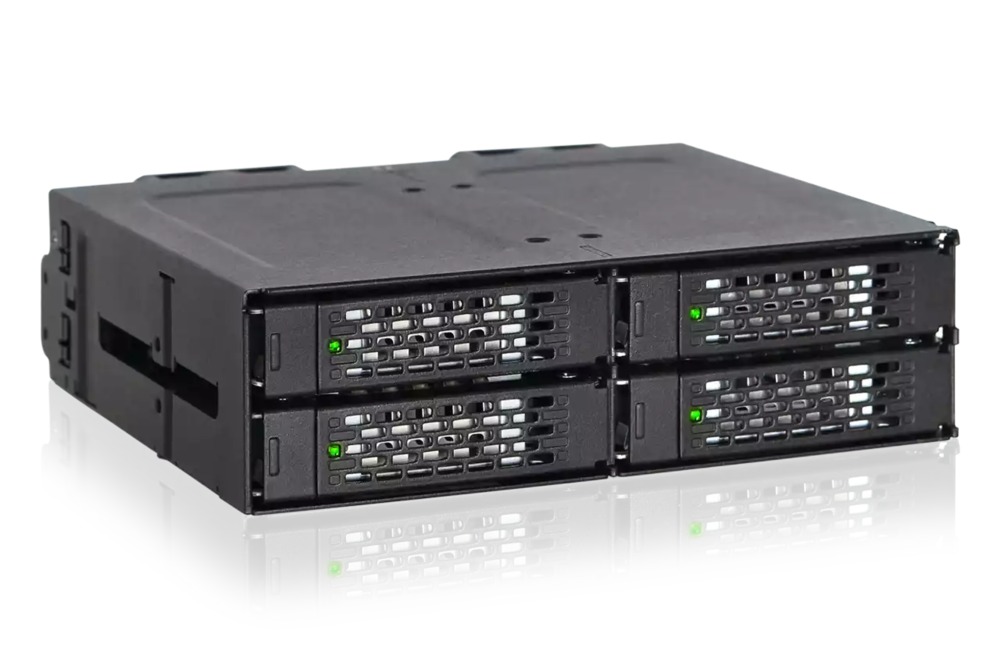

Model: IcyDock MB699VP-B V3
Specifications
Specs | |
| Net Weight | 0.911 kg (2.0 lbs) |
| Form Factor | 5.25-Inch Bay |
Features
- Model Number: MB699VP-B V3
- Color: Black
- Support Drive Size: 2.5" (up to 15mm height)
- Compatible Drive Type: U.2 / U.3 NVMe
- Number of Drives: 4
- Drive Bay: 1 x 5.25" half-height bay
- Host Interface: 4 x OCuLink SFF-8612 (pin-out SFF-9402 Rev 1.1)
- Power Input: 2 x 15-pin SATA power connector
- Transfer Rate: Up to 64 Gbps
- Support SSD Capacity: No Limitation

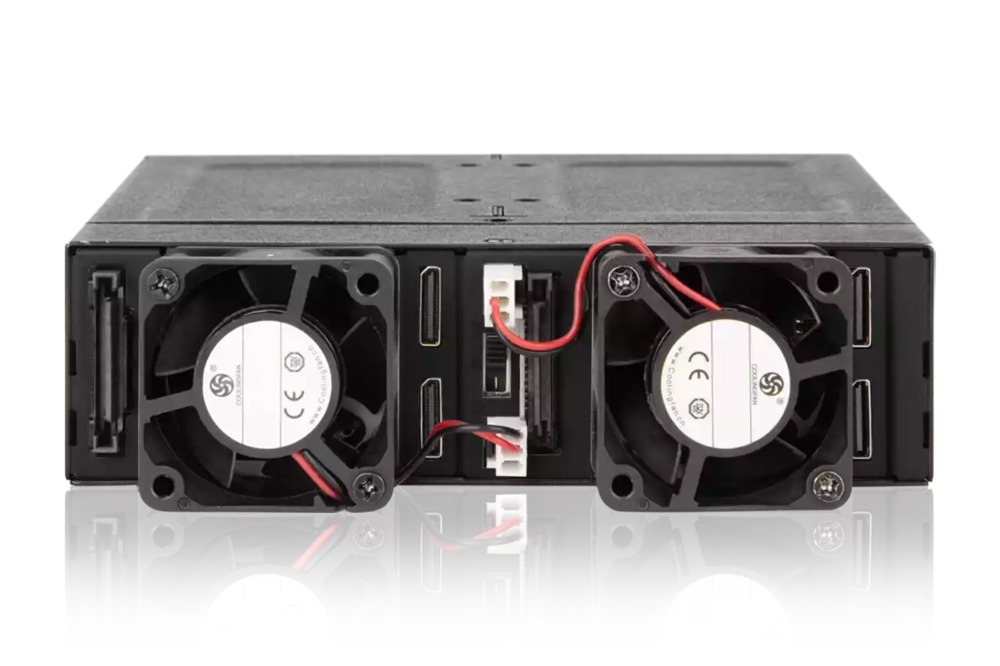

- Drive Cooling: 2 x 40mm fan (40 x 40 x 20mm)
- RAID Function: N/A
- Structure / Material: Full Metal
- Support Hot-Swap: Yes
- Drive Security: N/A
- Product Dimension (L x W x H): 146 x 140.3 x 41.3mm
- Product Net Weight: 2.01 lbs (911.2g)
- Package Gross Weight: 2.08 lbs (935.2g)
- Drive Activity LED Indication: Drive power: solid green; SSD access: flashing green
- Package contents: Device, user manual, drive ID plugs, screws
- SATA Connector Insertion Rate: 10,000
- Humidity: 5%~65% RH
- Operating Temperature: 0C to 60C (32F to 140F)
- Storage Temperature: -35C to 70C (-31F to 158F)
- Compliance: CE, RoHS, REACH
- Warranty: 5 years
