SIIG USB 3.0 Dual Head Docking Station

Accessories

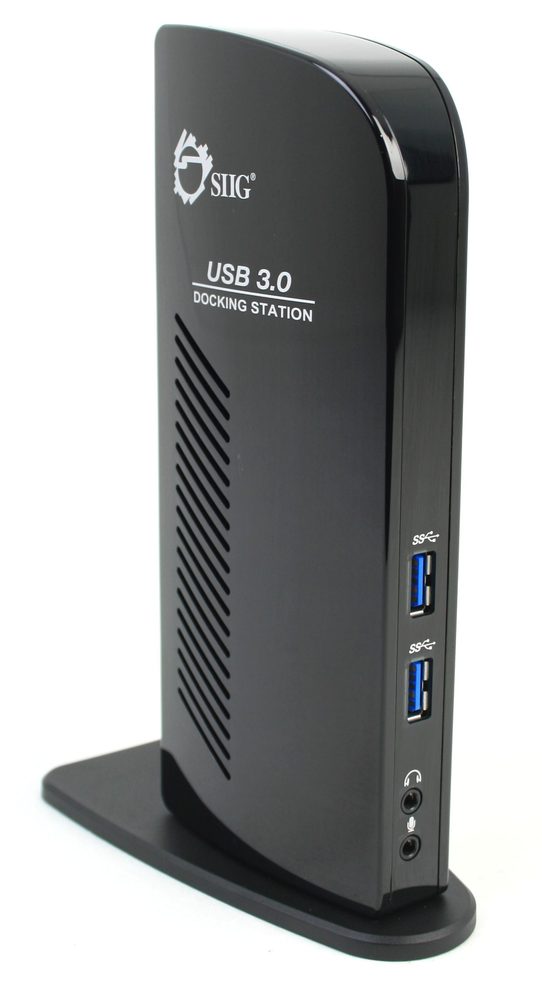

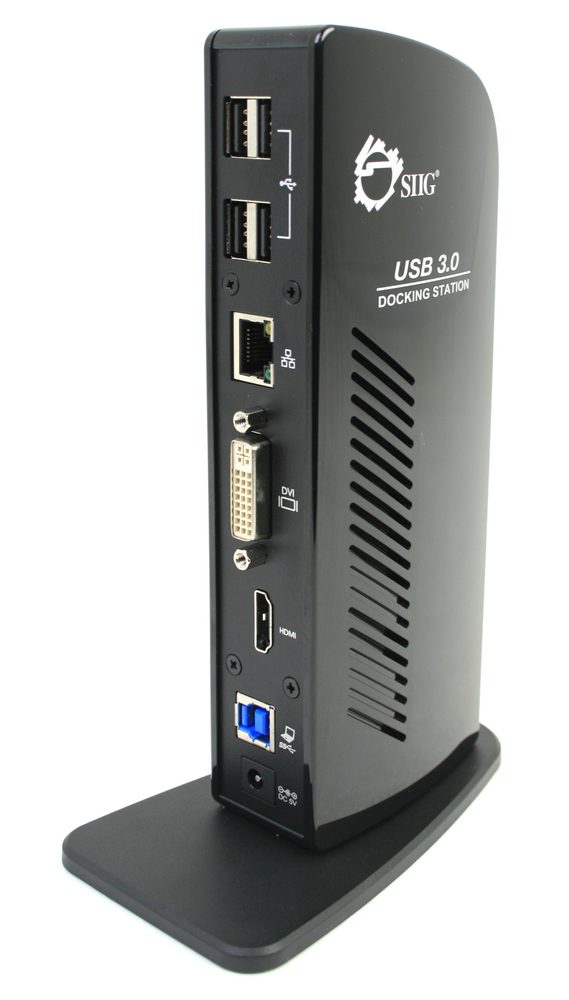

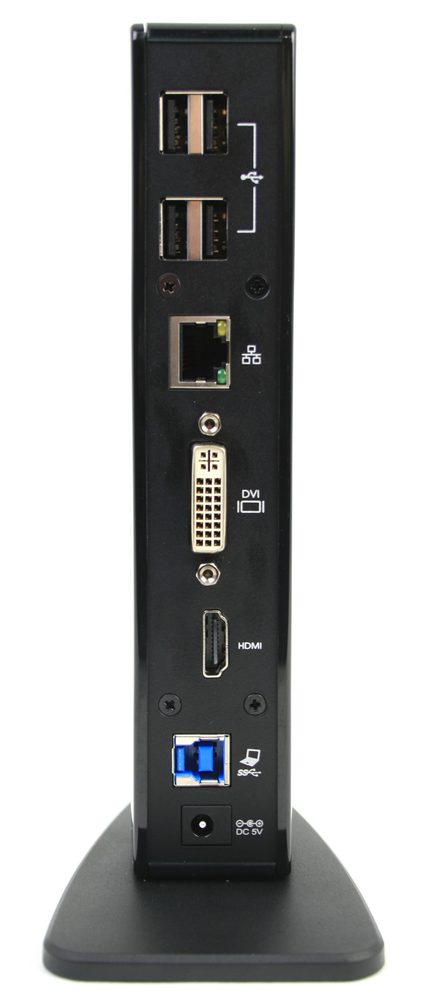

SIIG USB 3.0 Dual Head Docking Station Picture 21875SIIG USB 3.0 Dual Head Docking Station Picture 21876SIIG USB 3.0 Dual Head Docking Station Picture 21877
Model: SIIG JU-DK0111-S1

Features:
  • Adds dual displays, Gigabit, audio out, MIC in and 6 USB 3.0/2.0 to your USB 3.0 enabled system
  • High resolutions for displays up to 2048 x 1152
  • SuperSpeed USB 3.0 5Gb/s data rate

SIIG's USB 3.0 Dual Head Docking Station easily adds multiple expansion capability to your USB 3.0 enabled computer. This advanced docking station adds dual display ports (1 HDMI & 1 DVI), 6 USB ports, Gigabit Ethernet, Audio-out and Mic-In connectivity to satisfy your connectivity requirements. The USB 3.0 Dual Head Docking Station combines value and performance in a unique compact design enabling you to unleash your productivity to meet your daily computing needs.

-Built with a DisplayLink DL-3900 chipset
-Compliant with USB 3.0 specification
-Compatible with IEEE 802.3
-Supports data transfer rate up to 5Gb/s
-Supports 10/100/1000 Mb/s auto-sensing capability
-HDMI and DVI supports 1080p and up to 2048 x 1152 resolutions
-Supports audio out to 2.1 & virtual 5.1 channel sound with a MIC jack
-Supports standard and widescreen monitors
-Supported modes: Extend, Mirror and Primary Display
-Backward compatible with USB 2.0 specification
-Built-in video RAM: 512MB DDR2 SDRAM
-Operating power consumption: 340mA
-Product dimensions: 7.48 "(W) x 3.07 "(H) x 1.5 7"(D)
-Product weight: 0.80 lbs (367g)
-Product color: Black
-Interfaces/Ports:
1, 9-pin, Type B, USB 3.0, Female, Input
2, 9-pin, Type A, USB 3.0, Female, Output
4, 5-pin, Type A, USB 2.0, Female, Output
1, RJ-45, Output
1, 25-Pin, DVI-I, Female, Output
1, 19-Pin, HDMI, Female, Output
-USB 3.0 Cable
-USB 3.0 Type A (Male) to Type B (Male)
-Length: 3 ft (0.9m)
-Color: Black
-Power supply:
Input: 100-240 VAC, 50/60Hz, 0.8A
Output: 5V, 4.0A
-Environmental conditions:
Operating temperature: 50 to 104 degrees F
Storage temperature: 14 to 176 degrees F
Relative Humidity: < 85% non-condensing
-Certifications/Standards: FCC, CE, RoHS
-Warranty: 3 years limited
