Intel Xeon Scalable Gold 6250 3.9GHz Eight Core 35.75MB 185W

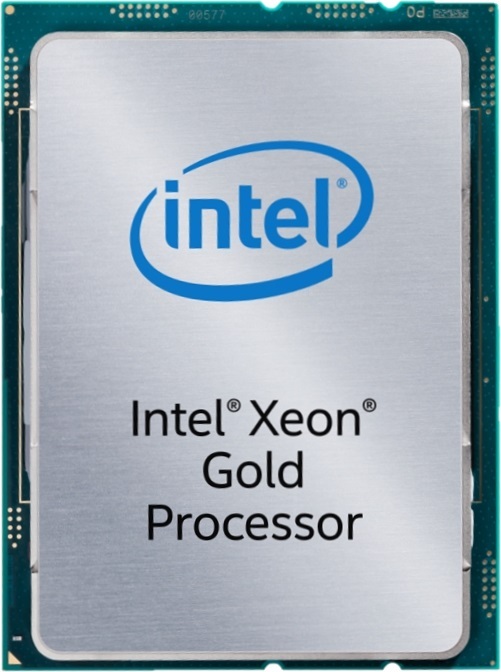

Intel Xeon Scalable Gold 6250 3.9GHz Eight Core 35.75MB 185W Picture 59838

Background on Intel Xeon Scalable Dual CPUs

Intel's Xeon Scalable processors are based on the Skylake and Cascade Lake SP ("scalable performance") architectures, and feature a wide range of core counts and clock speeds to suit different tasks and budgets. They are split into categories using the names of various metals: bronze, silver, gold, and platinum - along with four digit model numbers denoting where each individual processor falls within the overall family and which generation it belongs to.

All Xeons in this series can be used as single processors or in pairs on supported motherboards, with some even working in 4- and 8-way systems. Each CPU supports six channels of DDR4 memory and 48 PCI-Express 3.0 lanes, enabling high RAM capacity and a lot of PCI-E devices per system.

In the second generation - Cascade Lake SP models, denoted by a 2 in the second digit of the model number - a new feature was added called Deep Learning Boost. It uses AVX 512 and some additional circuitry to increase performance in select machine learning workloads.

Model: Intel CD8069504425402

Product Line  Xeon Scalable
Code Name  Cascade Lake-SP Refresh
Socket  3647
Process  14 nm
Total Number of Cores  8
Base Clock Speed  3.90 GHz
Hyperthreading  Yes
Turbo Boost  Yes
Max. Turbo Boost  4.50 GHz
All-Core Turbo Boost  4.50 GHz
Bus Type  DMI3
Thermal Output  185 W
PCI-E Lanes  48
Smart Cache  35.75
Memory Specification
Memory Type  DDR4
Maximum Frequency  2933
ECC Support  Yes
Advanced Technologies
vPro  Yes
Virtualization Technology (VT-x)  Yes
Virtualization Technology for Directed I/O (VT-d)  Yes
Trusted Execution Technology  Yes

  • Advanced RAS
  • Intel AVX-512 (2 512-bit FMAs)
  • 2 UPI links at 10.4GT/s
  • Intel Optane DC Persistent Memory Support

Max memory speed is reduced to 2666MHz when configured with two DIMMs per channel.

Configure a custom computer with the Intel Xeon Scalable Gold 6250 3.9GHz Eight Core 35.75MB 185W.
