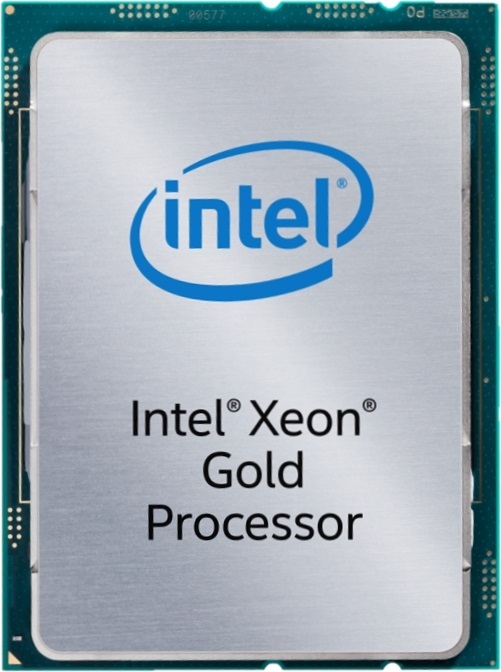

Intel Xeon Scalable Gold 6254 3.1GHz Eighteen Core 24.75MB 200W

CPU

Intel Xeon Scalable Gold 6254 3.1GHz Eighteen Core 24.75MB 200W Picture 55699
Sorry, we have no advice for this part! Ask us and we'll add some.
Model: Intel CD8069504194501

Specifications:
spacer
Product Line  Xeon Scalable
Code Name  Cascade Lake-SP
Socket  3647
Process  14 nm
Number of Cores  18
Clock Speed  3.10 GHz
Hyperthreading  Yes
Turbo Boost  Yes
Max. Turbo Boost  4.00 GHz
All-Core Turbo Boost  3.90 GHz
Bus Type  DMI3
Thermal Output  200 W
PCI-E Lanes  48
Max Temperature  85 C
Cache
Smart Cache  24.75MB
Memory Specification
Memory Type  DDR4
Maximum Frequency  2933
ECC Support  Yes
Registered Support  Yes
Advanced Technologies
vPro  Yes
Virtualization Technology (VT-x)  Yes
Virtualization Technology for Directed I/O (VT-d)  Yes
Trusted Execution Technology  Yes
TSX-NI  Yes

Max memory speed is reduced to 2666MHz when configured with two DIMMs per channel.
