Cooler Master HAF-X 942

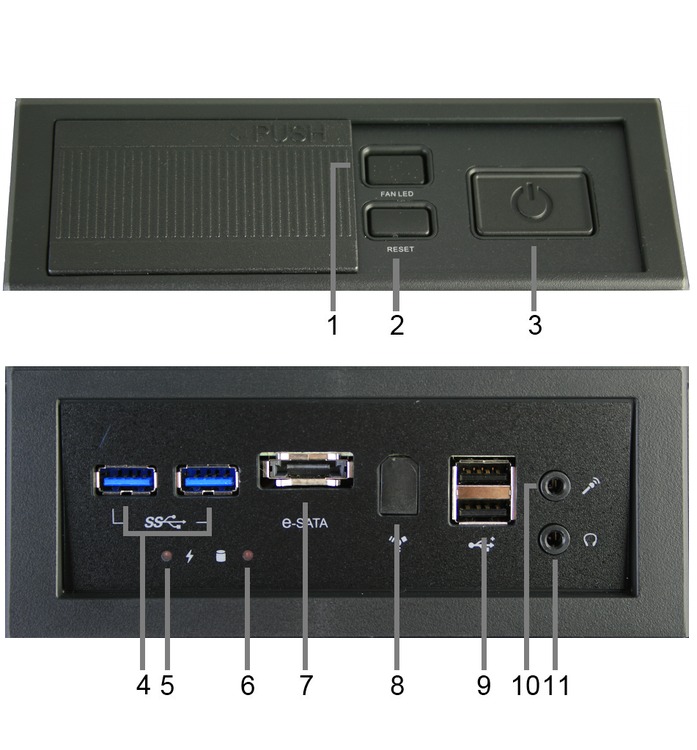

[ Front Panel ]

Cooler Master HAF-X 942 Picture 15632Cooler Master HAF-X 942 Picture 15633Cooler Master HAF-X 942 Picture 15634Cooler Master HAF-X 942 Picture 15635Cooler Master HAF-X 942 Picture 15636Cooler Master HAF-X 942 Picture 23457
The HAF-X represents an upgrade to the well-known case line from Cooler Master. In particular, it adds support for quad video card setups - are rarity among both cases and motherboards, so if you are interested make sure to get a board which can handle that as well. It is also the first case in our line to have USB 3.0, USB 2.0 along with an e-SATA port on the front of the case.
Jeff Stubbers (Technology Consultant)
Jeff Stubbers (Technology Consultant) Says:
The Cooler Master HAF cases offer very good cooling. So if you intend to put components in your system that create a lot of heat, this could be a good case for cooling them. These cases have a built-in side-panel window and ventilated areas around the case, so if you decide to use this case I recommend against the use of AcoustiPack sound dampening material, since it will not be applied on the window, or ventilated areas. Due to the open nature of these cases, they do not do a great job of dampening the noise of the component in your system. So if noise is a concern, you may want to consider another case.

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Model: Cooler Master RC-942-KKN1

Color  Black
Material  Plastic shell, steel frame
Type/Size  Full Tower
Maximum Motherboard Size  EATX
Case Window  Yes
Power Supply  None
Height  590 mm (23.2 in)
Width  230 mm (9.1 in)
Depth  550 mm (21.7 in)
Net Weight  16.08 kg (35.5 lbs)
Drive Bays
External 5.25 inch  4
External 3.5 inch  0
Internal 3.5 inch  7
Internal 2.5 inch  0
Front Panel Connectors
USB 2.0  2
USB 3.0  2
Firewire  1
Audio In  1
Audio Out  1
eSATA  1
Cooling System
Cooling Method  Air
Included Fans  Front 230mm Red LED, Top 200mm, Side 200mm, Rear 140mm
Additional Fans Possible  Top 200mm

- SATA Dock for easy installation without the need of removing side panel
- USB 3.0 on front I/O panel
- Air duct to cool the latest graphic cards
- Up to 1 x 230 mm red LED fan and 3 x 200 mm fans
- 9 slots support triple VGA cards
- Adjustable VGA card holder to support heavier GPU cards
- Power supply partition to conceal cables
- Advanced cable management with rubber grommets
- Spacious interior for larger component parts
- Rugged black coated interior

2 hard drive hot-swap bays can be converted to standard 5.25" bays if needed.

Front USB 3.0 ports are pass-through ports and need to be plugged into USB3.0 ports on the motherboard. These ports can be converted to standard USB 2.0 ports (plugged into internal motherboard headers) if needed.

Configure a custom computer with the Cooler Master HAF-X 942.
