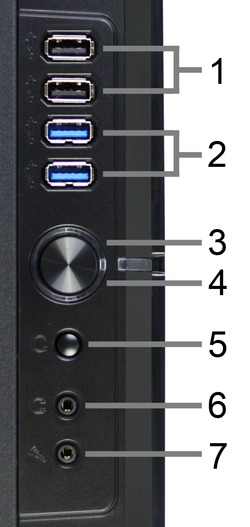

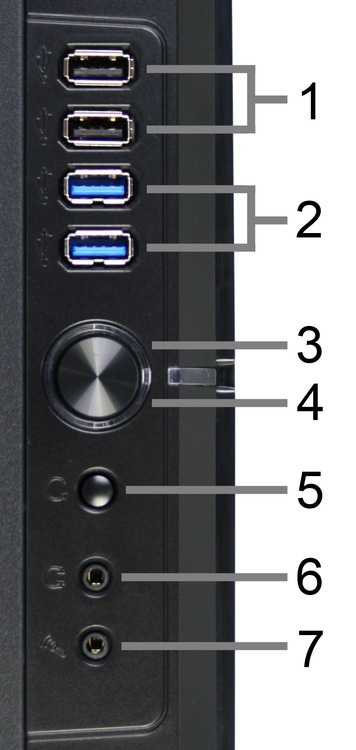

Fractal Design Define R4 Titanium Grey Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.
Model: Fractal Design FD-CA-DEF-R4-TI
Specifications
| Color | Grey |
| Material | Plastic shell, steel frame |
| Type/Size | Mid Tower |
| Maximum Motherboard Size | ATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 464 mm (18.3 in) |
| Width | 232 mm (9.1 in) |
| Depth | 523 mm (20.6 in) |
| Net Weight | 12.3 kg (27.1 lbs) |
| Maximum CPU Cooler Height | 170mm |
| Maximum GPU Length | 295mm (430 with HD cage removed) |
| Maximum PSU Length | 270mm (170mm with bottom fan installed) |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 0 |
| Internal 2.5 inch | 2 |
| Internal 2.5/3.5 inch | 8 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 140mm front and rear |
| Total Fan Mounts | 120/140mm front, 2x 120/140mm top, 1x 120/140mm bottom |
Features
- High density noise-reducing material for an optimal silent case
- Patent pending ModuVent design allowing the user to choose between optimal silence or maximum airflow
- Top HDD cage (5 trays total) can be rotated 90 degrees or removed for additional airflow or to accommodate long graphic cards up to 430mm in length
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
- Two Silent Series R2 fans included, featuring hydraulic bearings contributing to a longer life expectancy
- Wider case body that allows for improved cable routing behind the motherboard - now 26mm wide
- New tool-less front fan holder makes switching front fans a breeze
- Two SSDs can be mounted on the back of the motherboard plate
