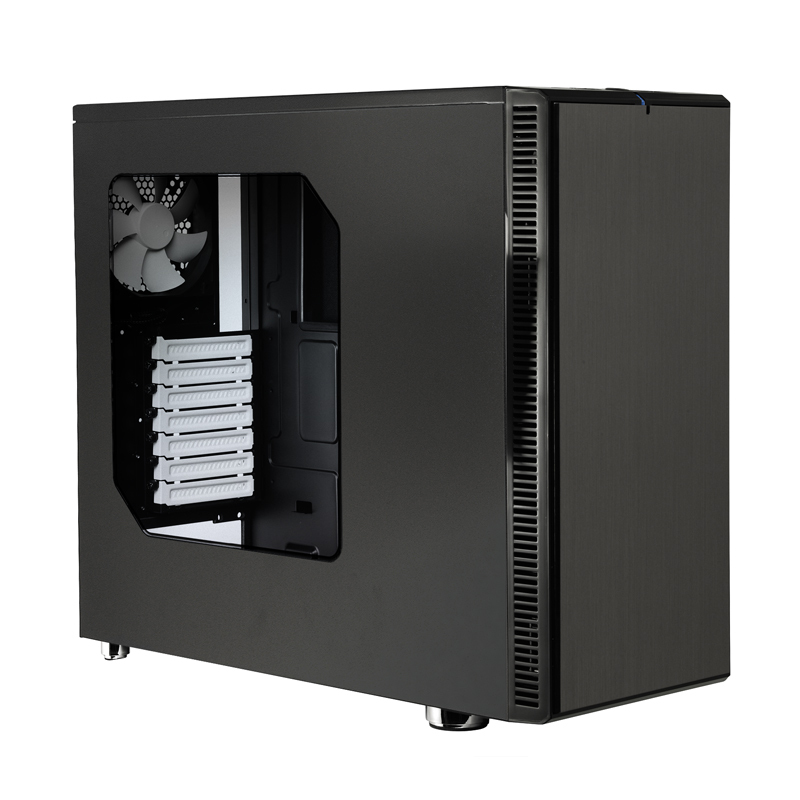

Fractal Design Define R4 Titanium Grey w/ Window

Case

Fractal Design Define R4 Titanium Grey w/ Window Picture 21008Fractal Design Define R4 Titanium Grey w/ Window Picture 21000Fractal Design Define R4 Titanium Grey w/ Window Picture 21001Fractal Design Define R4 Titanium Grey w/ Window Picture 21002Fractal Design Define R4 Titanium Grey w/ Window Picture 21003Fractal Design Define R4 Titanium Grey w/ Window Picture 21004Fractal Design Define R4 Titanium Grey w/ Window Picture 21006

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Model: Fractal Design FD-CA-DEF-R4-TI-W

Specifications

Color Grey
Material Plastic shell, steel frame
Type/Size Mid Tower
Maximum Motherboard Size ATX
Case Window Yes
Power Supply None
Dimensions
Height 464 mm (18.3 in)
Width 232 mm (9.1 in)
Depth 523 mm (20.6 in)
Net Weight 12.3 kg (27.1 lbs)
Maximum CPU Cooler Height 170mm
Maximum GPU Length 295mm (430 with HD cage removed)
Maximum PSU Length 270mm (170mm with bottom fan installed)

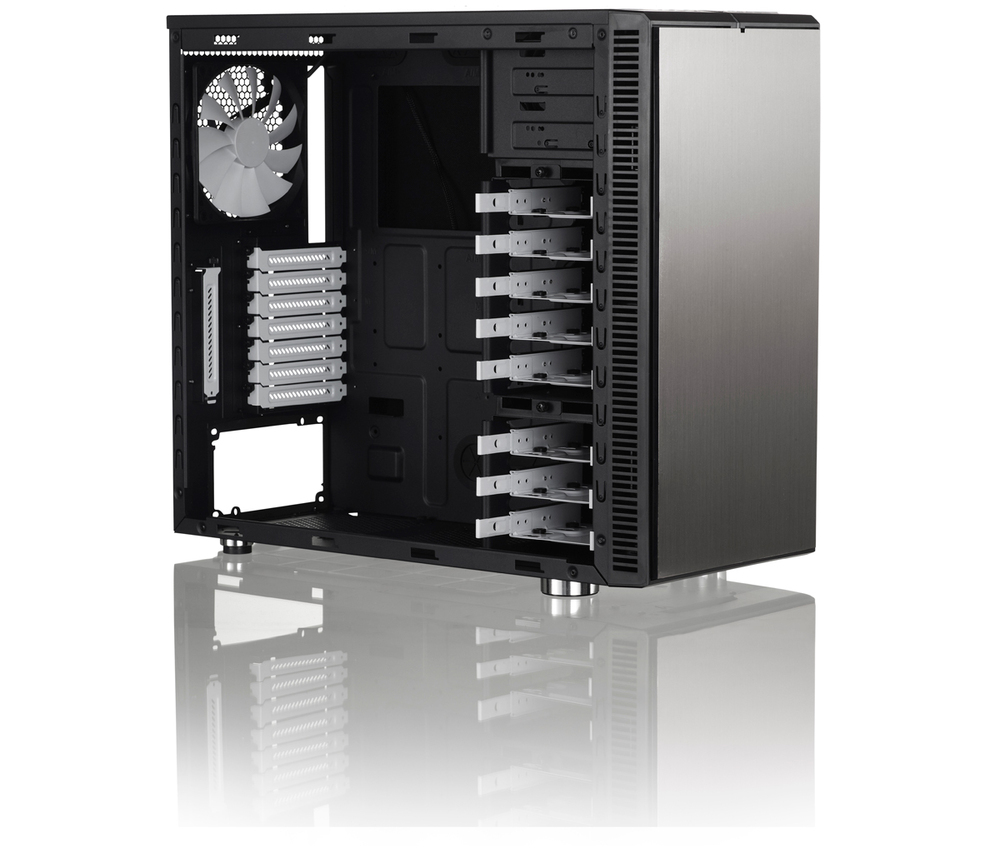

Drive Bays
External 5.25 inch 2
External 3.5 inch 0
Internal 2.5 inch 2
Internal 2.5/3.5 inch 8

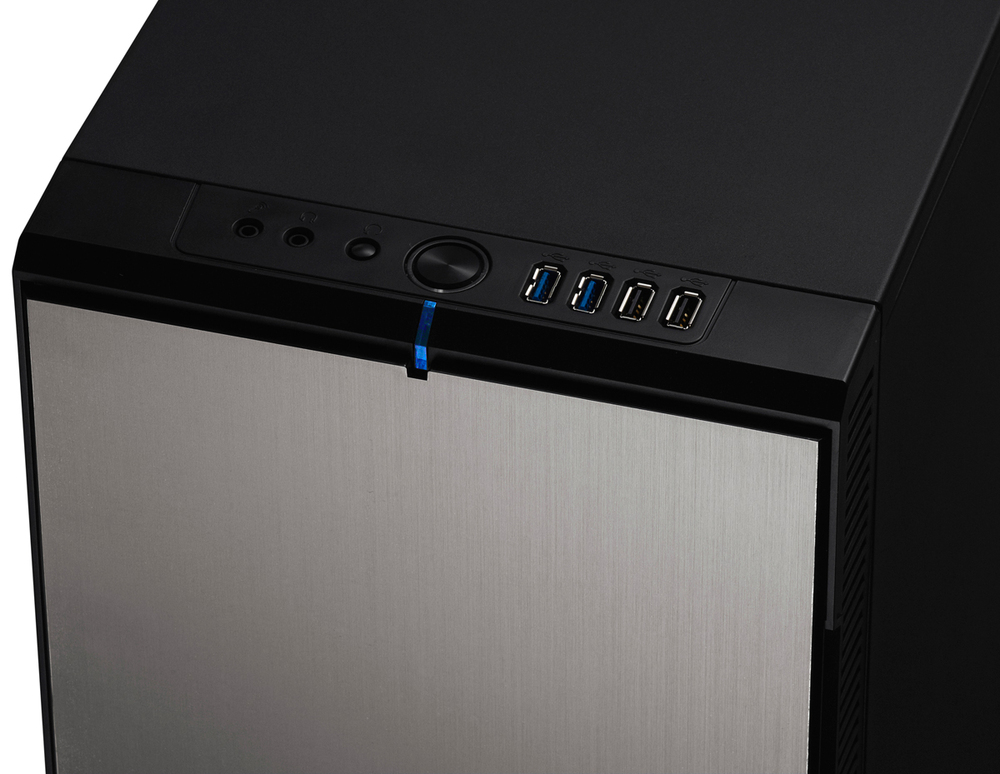

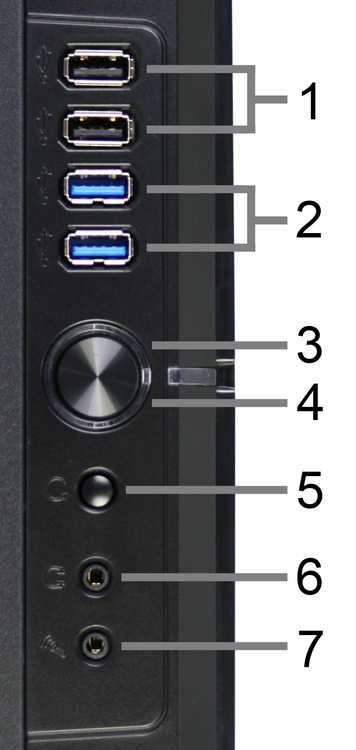

Front Panel Connectors
USB 2.0 2
USB 3.0 2
Firewire 0
Audio In 1
Audio Out 1
eSATA 0

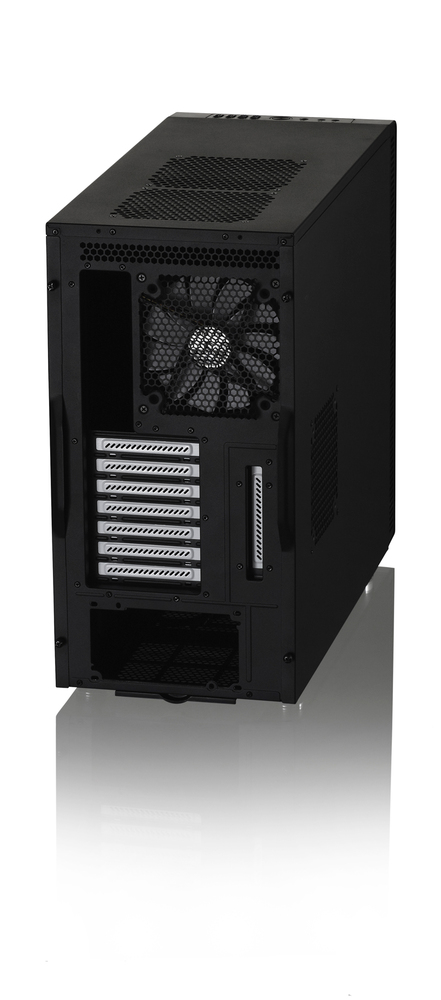

Cooling System
Cooling Method Air
Included Fans 140mm front and rear
Total Fan Mounts 120/140mm front, 2x 120/140mm top, 1x 120/140mm side, 1x 120/140mm bottom

Features

  • High density noise-reducing material for an optimal silent case
  • Patent pending ModuVent design allowing the user to choose between optimal silence or maximum airflow
  • Top HDD cage (5 trays total) can be rotated 90 degrees or removed for additional airflow or to accommodate long graphic cards up to 430mm in length
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
  • Two Silent Series R2 fans included, featuring hydraulic bearings contributing to a longer life expectancy
  • Wider case body that allows for improved cable routing behind the motherboard - now 26mm wide

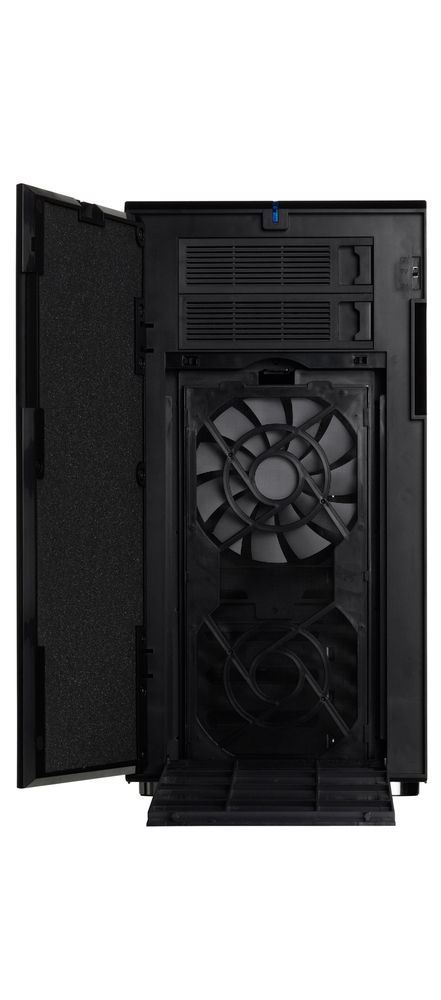

  • New tool-less front fan holder makes switching front fans a breeze
  • Two SSDs can be mounted on the back of the motherboard plate
