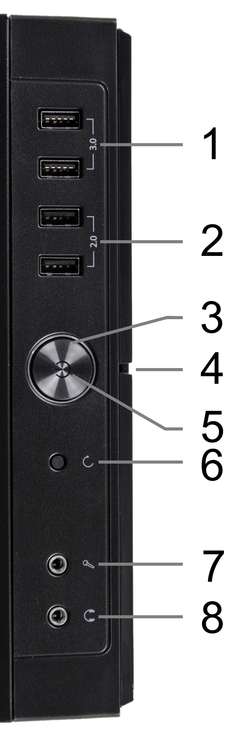

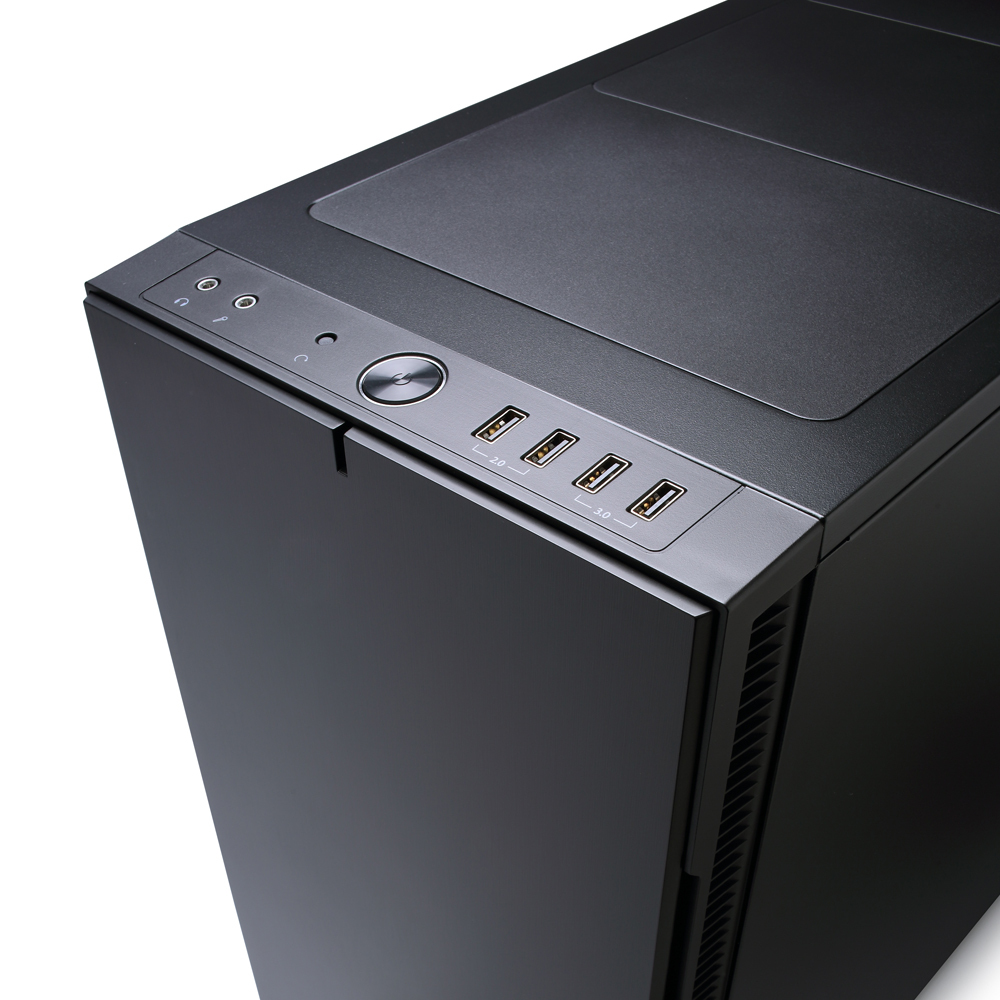

Fractal Design Define R5 Blackout Edition Ports
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
HDD LED: Light that turns on when there is drive activity.
Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Fractal Design Define R5 Blackout Edition Dimensions
Model: Fractal Design FD-CA-DEF-R5-BKO
Specifications
| Color | Black |
| Material | Plastic shell, steel frame |
| Type/Size | Mid Tower |
| Maximum Motherboard Size | ATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 462 mm (18.2 in) |
| Width | 232 mm (9.1 in) |
| Depth | 531 mm (20.9 in) |
| Net Weight | 11.2 kg (24.7 lbs) |
| Maximum CPU Cooler Height | 180mm |
| Maximum GPU Length | 310mm or 440mm with top HD cage removed |
| Maximum PSU Length | 170mm with a bottom fan or 300mm without |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 0 |
| Internal 2.5 inch | 2 |
| Internal 2.5/3.5 inch | 8 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 140mm front and rear |
| Total Fan Mounts | 120/140mm front, 3x 120/140mm top, 1x 120/140mm bottom |
Features
- Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow and cooling capabilities.

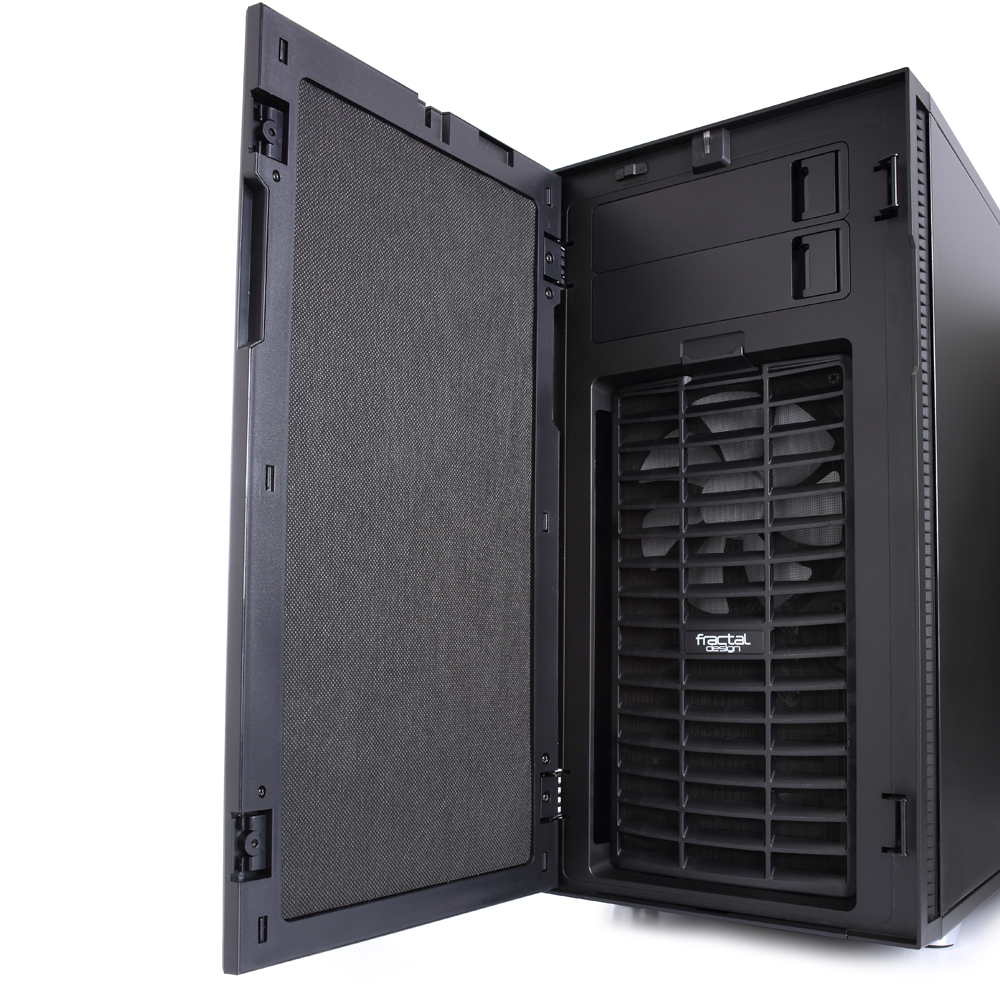

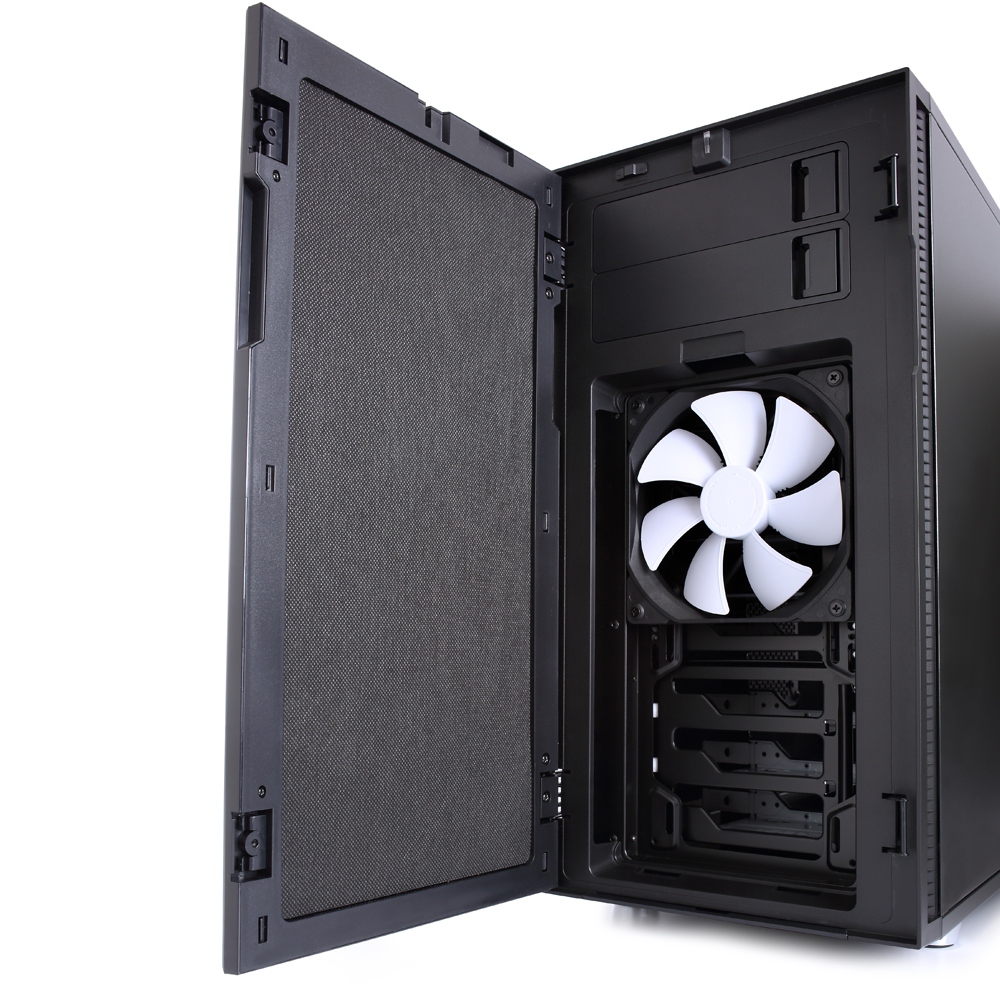

- Newly configured front door with dual side mounting to better fit your work space

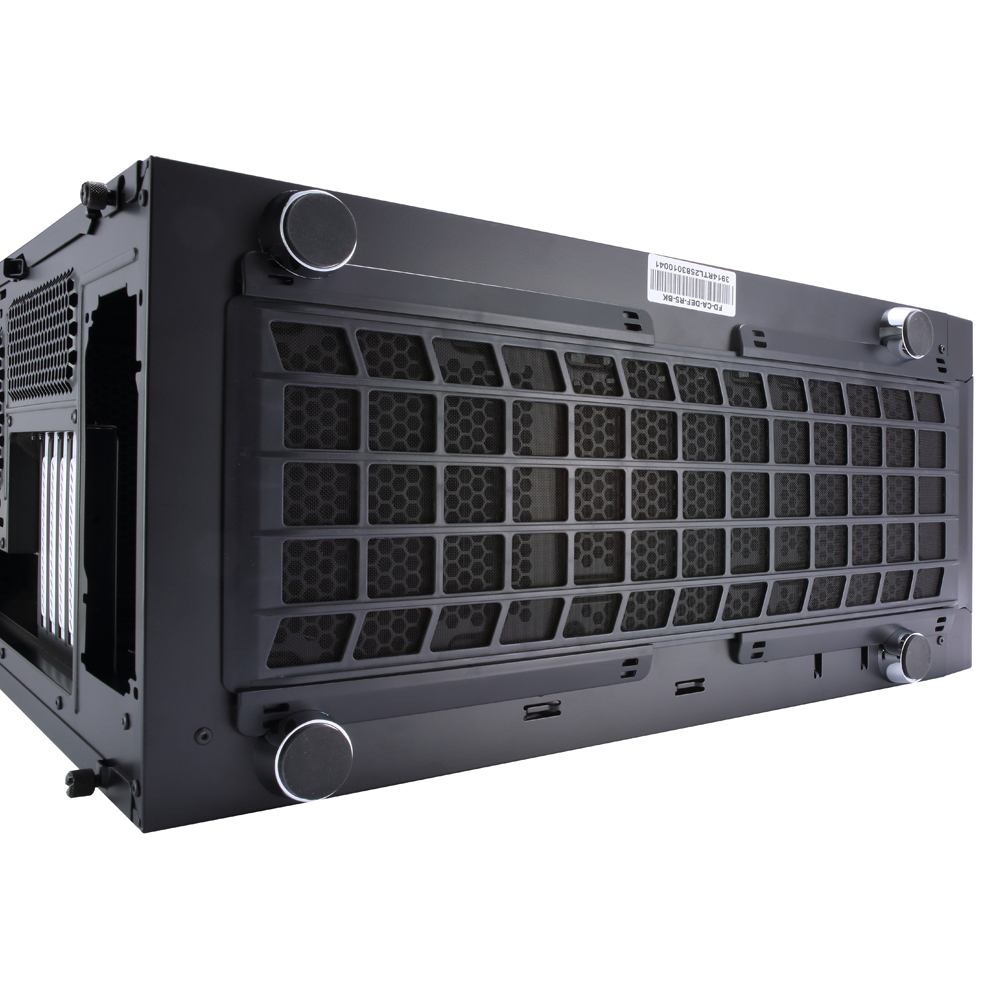

- Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.

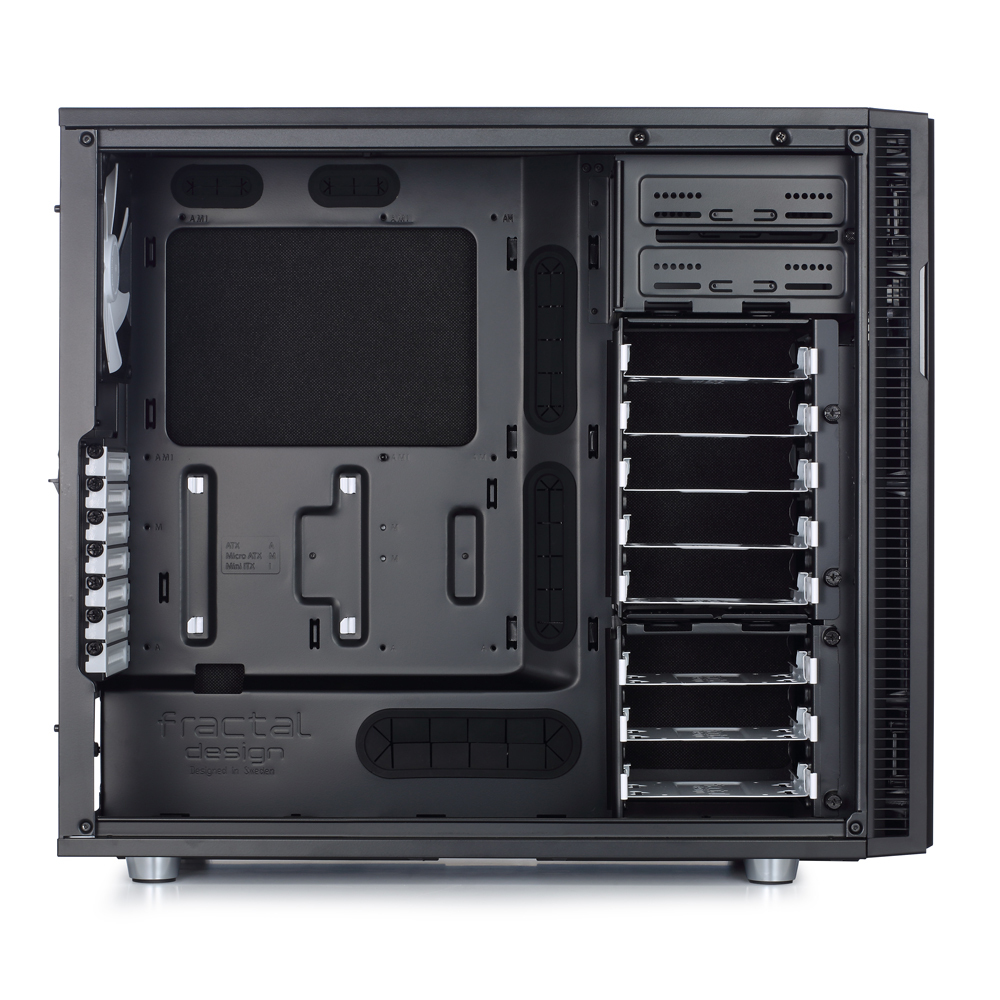

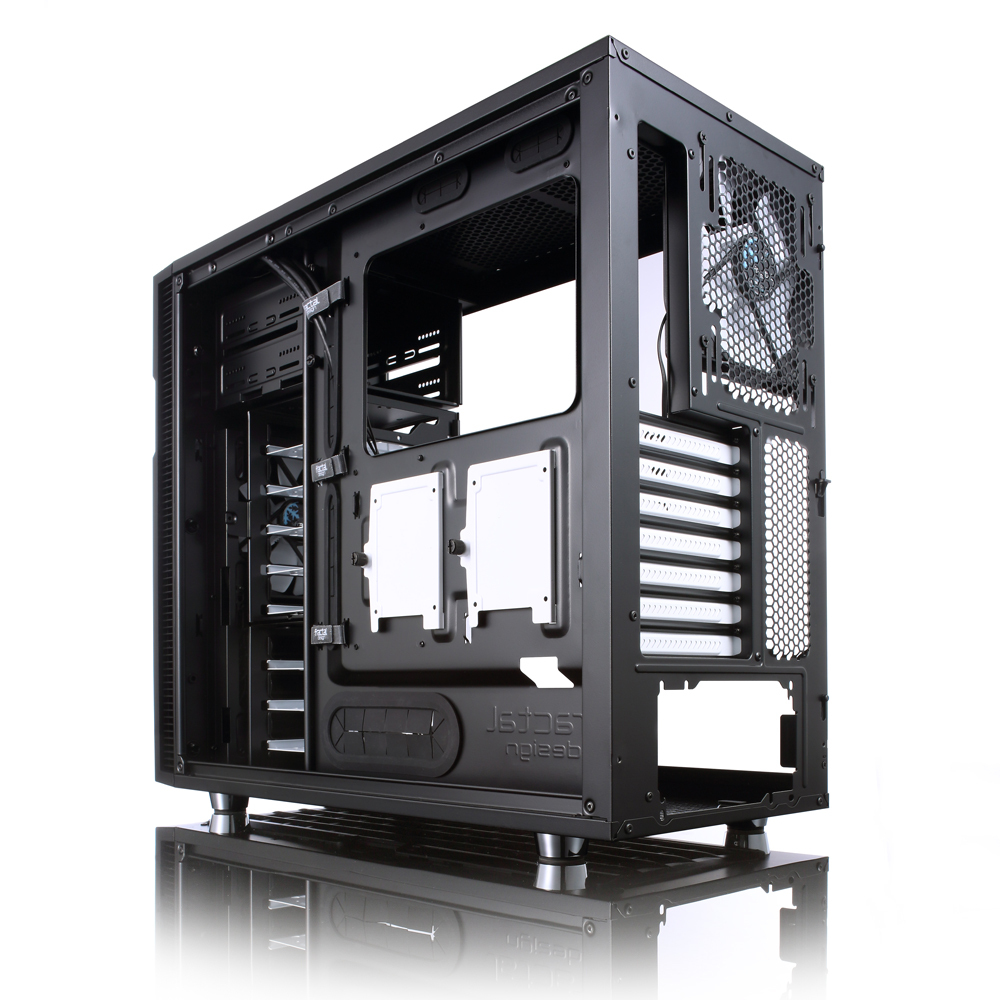

- The HDD cage system holds up to eight 3.5" or 2.5" drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
- The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system.
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
- Equipped with new tool-less ModuVent fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
- Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.
The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent fan vent covers and finely tuned Dynamic Series fans.
The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand.
