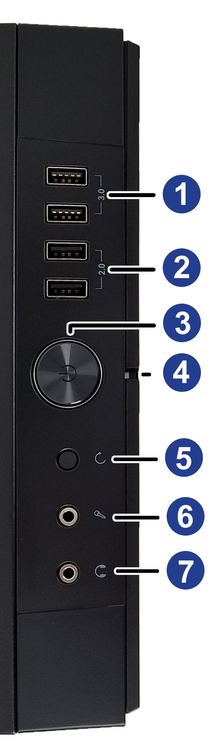

Fractal Design Define R6 Gunmetal Ports
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.

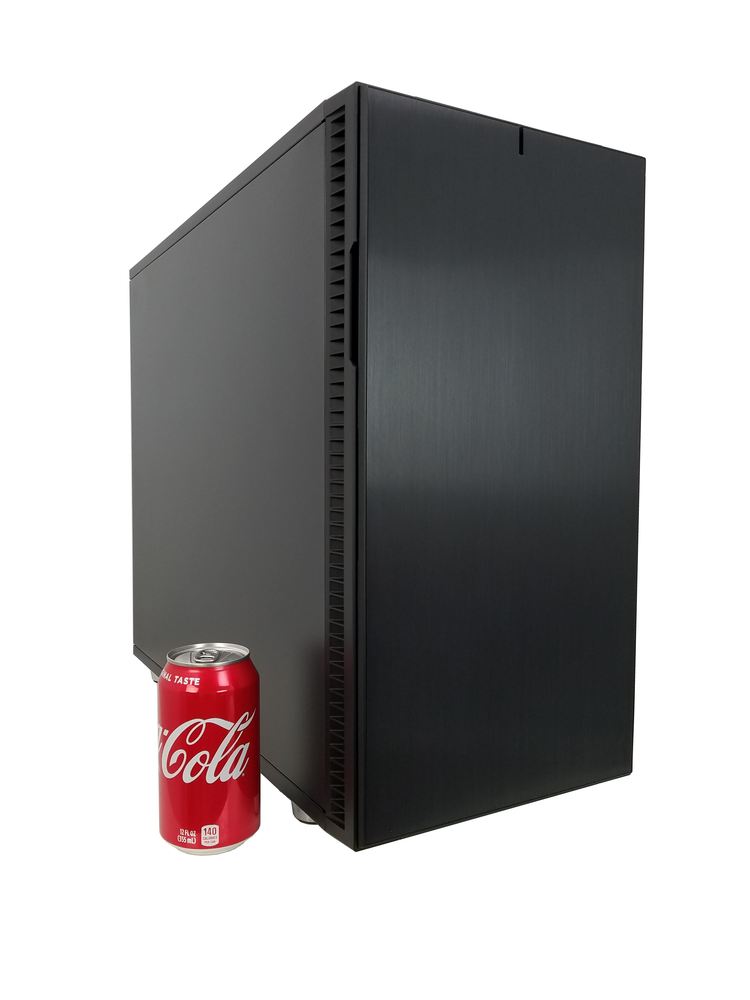

Fractal Design Define R6 Gunmetal Dimensions

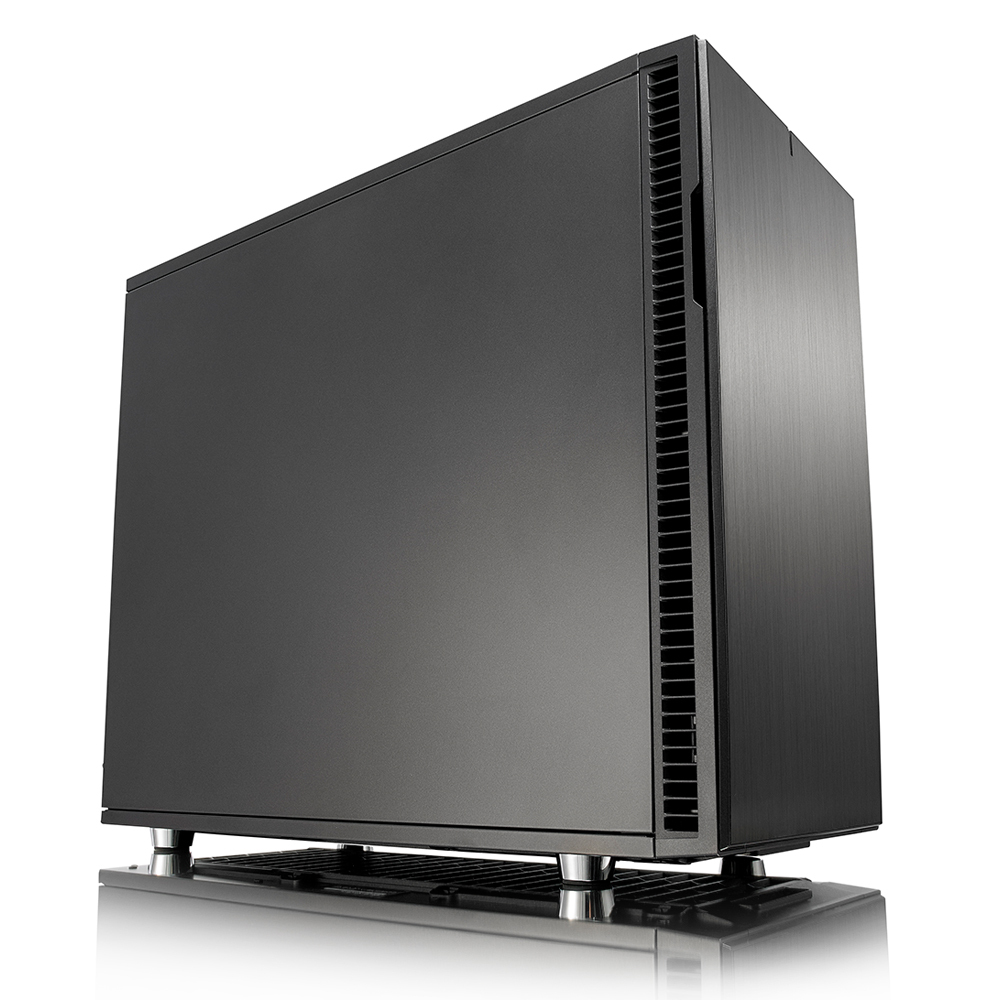

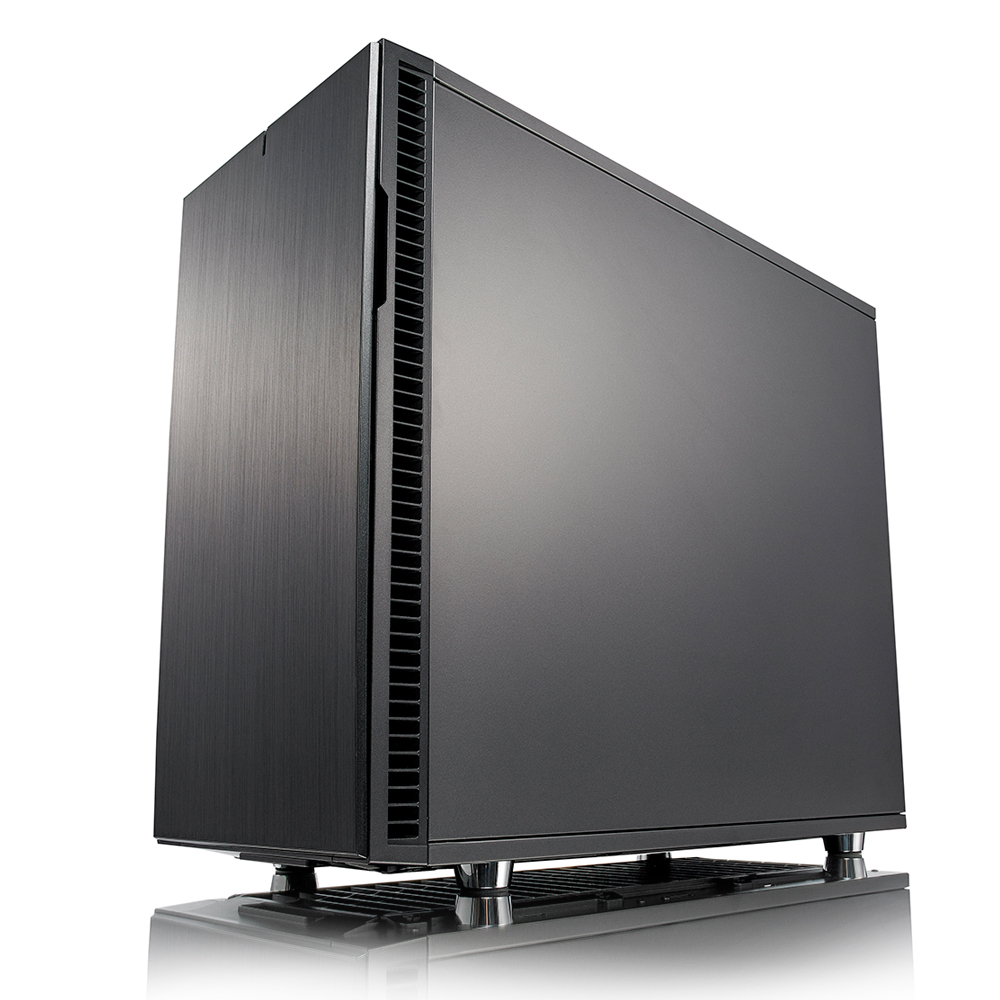

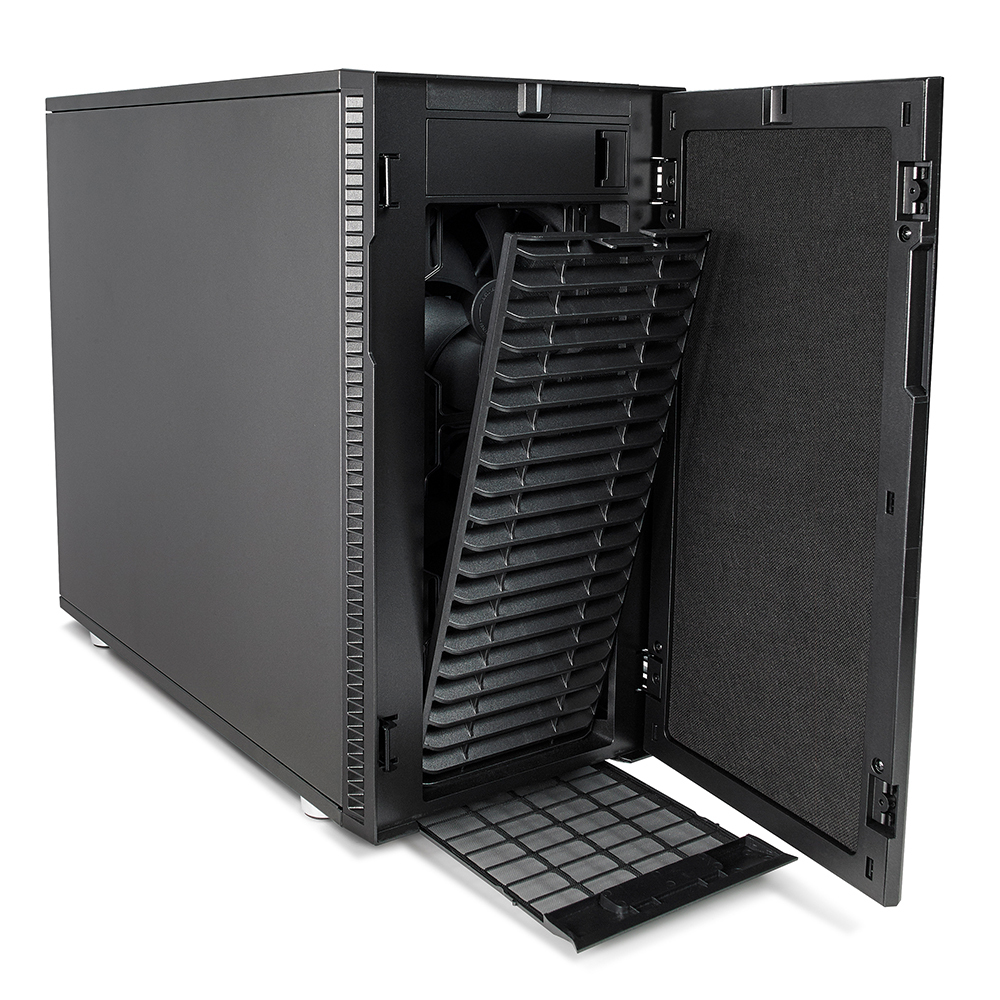

Fractal Design's Define R6 chassis is a generational upgrade to their quiet case series. It is classified as an ATX mid-tower and includes a reversible front door, noise dampening padding on the front and side panels, and filters over the front and bottom air intakes.

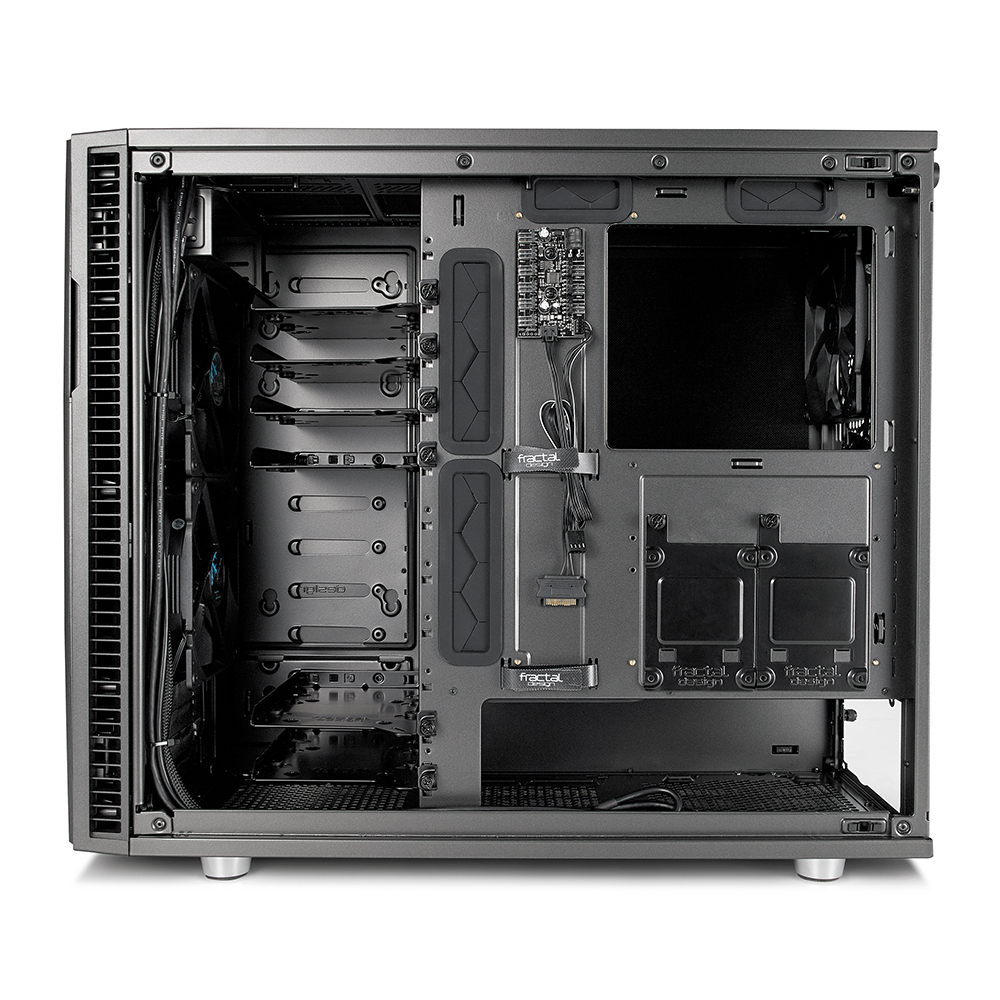

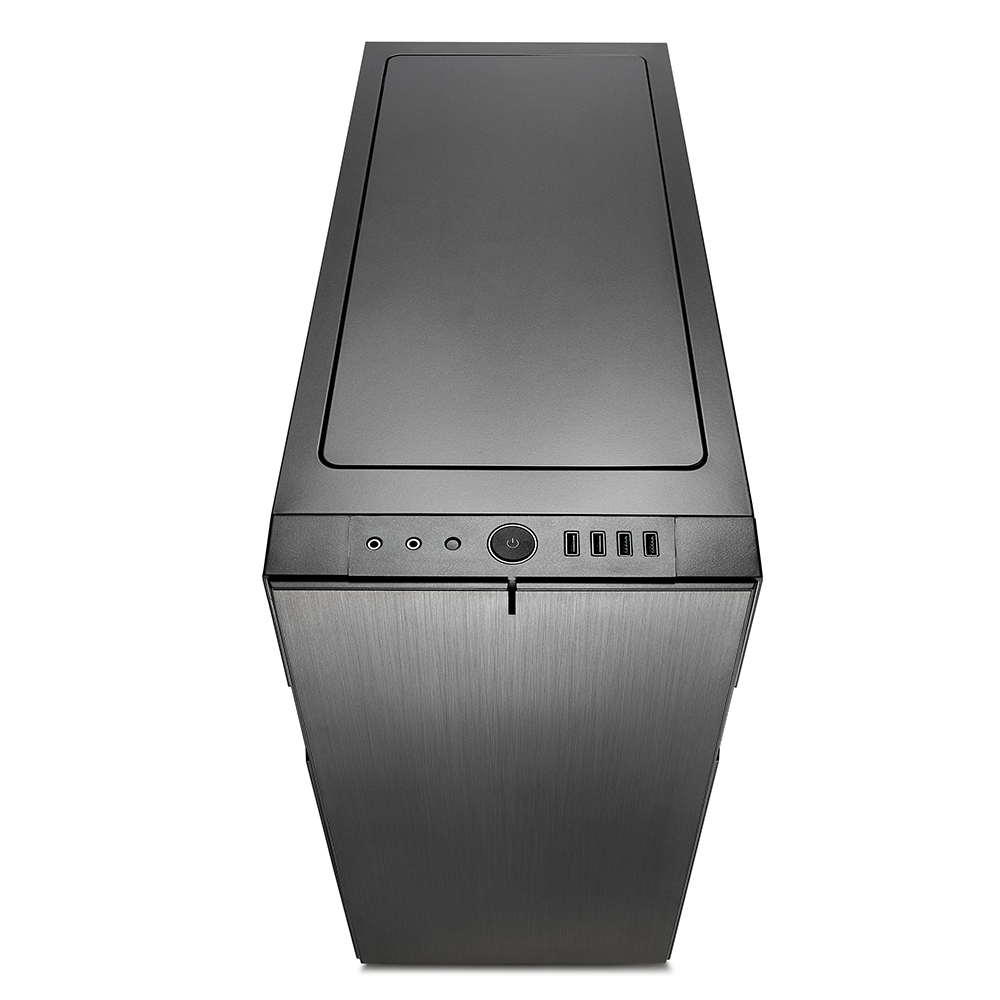

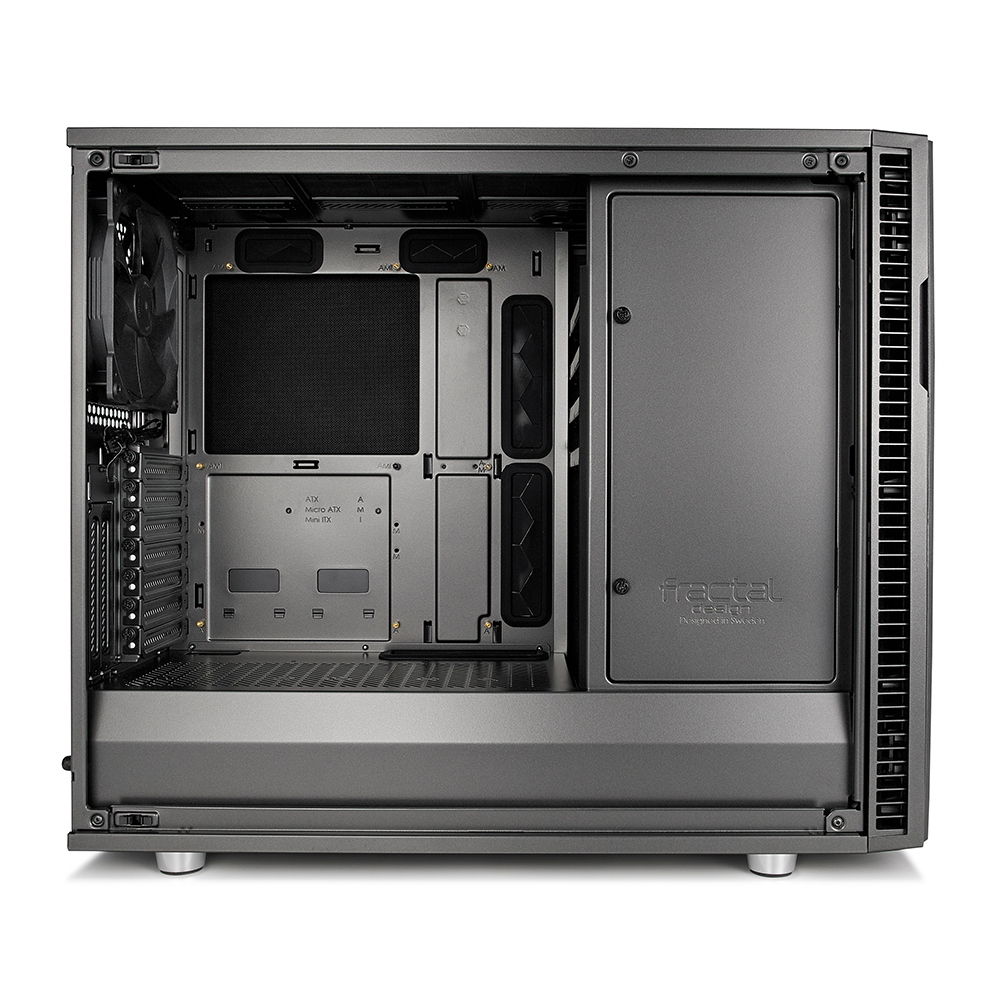

Like its predecessors, the Define R6 has a flexible design layout. There is support for one 5.25-inch front drive, six 2.5- or 3.5-inch internal drives, and two additional 2.5-inch drives. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include two each of USB 2.0 and USB 3.0 ports alongside headphone and mic plugs.

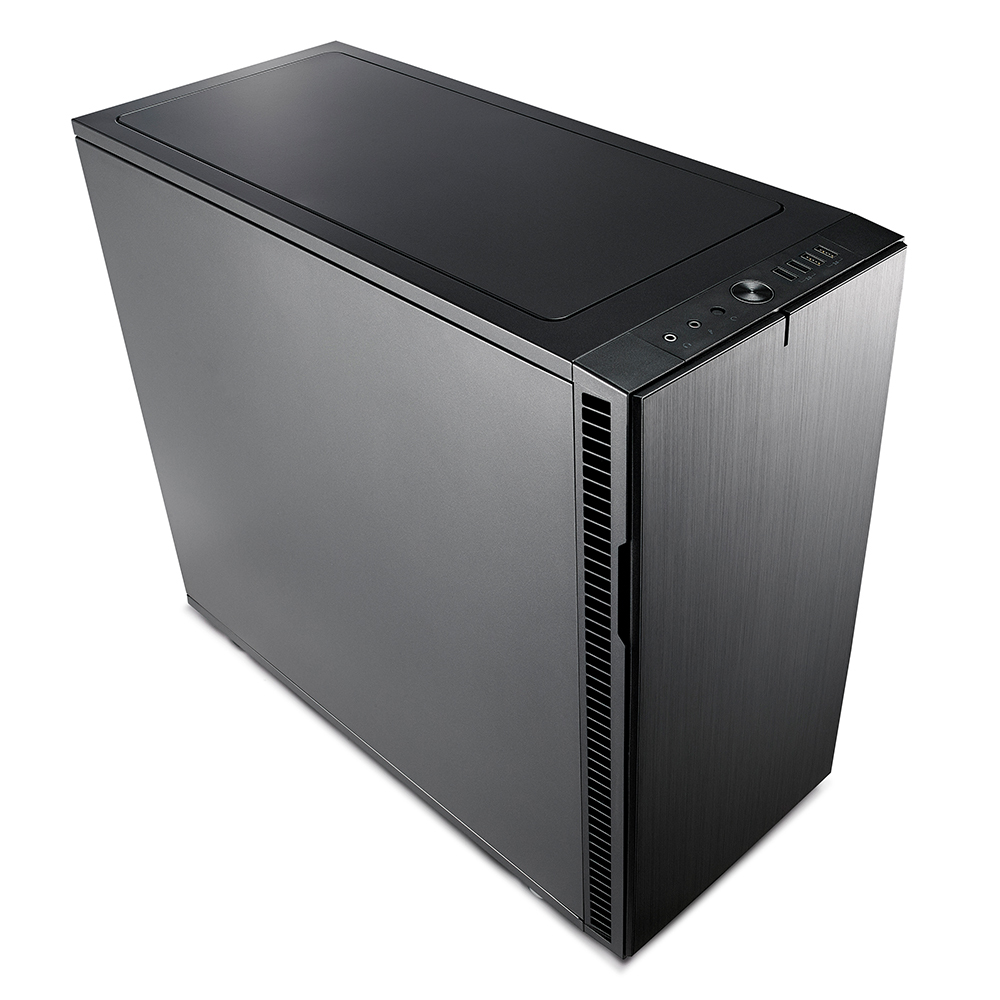

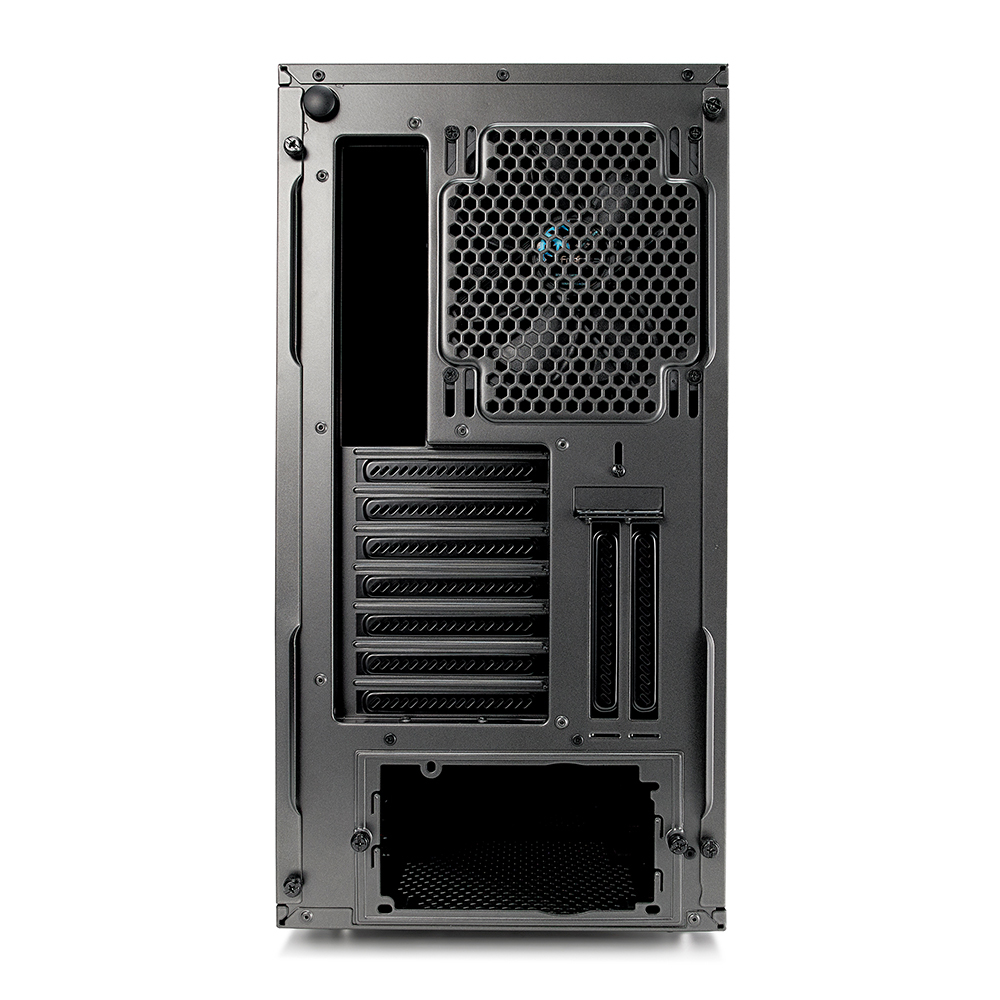

This particular version is 'Gunmetal' in color. The entire case is dark grey, with a brushed metal look on the front panel and some black accents internally (drive trays, expansion slot covers, and fans).
Like its predecessors, the Define R6 has a flexible design layout. There is support for one 5.25-inch front drive, six 2.5- or 3.5-inch internal drives, and two additional 2.5-inch drives. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include two each of USB 2.0 and USB 3.0 ports alongside headphone and mic plugs.
This particular version is 'Gunmetal' in color. The entire case is dark grey, with a brushed metal look on the front panel and some black accents internally (drive trays, expansion slot covers, and fans).
Model: Fractal Design FD-CA-DEF-R6-GY
Specifications
| Color | Grey |
| Material | Aluminum and plastic front panel, steel frame |
| Type/Size | Mid Tower |
| Maximum Motherboard Size | ATX |
| Case Window | No |
Dimensions | |
| Height | 465 mm (18.3 in) |
| Width | 233 mm (9.2 in) |
| Depth | 543 mm (21.4 in) |
| Net Weight | 12.4 kg (27.3 lbs) |
| Maximum CPU Cooler Height | 185 mm |
| Maximum GPU Length | 440 mm |
| Maximum PSU Length | 300 mm |
Drive Bays | |
| External 5.25 inch | 1 |
| External 3.5 inch | 0 |
| Internal 2.5 inch | 2 |
| Internal 2.5/3.5 inch | 6 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Audio In | 1 |
| Audio Out | 1 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 3 Fractal GP-14 140mm 3-pin fans |
| Total Fan Mounts | 6 |
