Fractal Design Define R6 USB-C Blackout w/ Window

Case

Fractal Design Define R6 USB-C Blackout w/ Window Main Picture


Fractal Design Define R6 USB-C Blackout w/ Window Picture 50062Fractal Design Define R6 USB-C Blackout w/ Window Picture 50069Fractal Design Define R6 USB-C Blackout w/ Window Picture 50076Fractal Design Define R6 USB-C Blackout w/ Window Picture 50077Fractal Design Define R6 USB-C Blackout w/ Window Picture 50070Fractal Design Define R6 USB-C Blackout w/ Window Picture 50065Fractal Design Define R6 USB-C Blackout w/ Window Picture 50066Fractal Design Define R6 USB-C Blackout w/ Window Picture 50073Fractal Design Define R6 USB-C Blackout w/ Window Picture 50067Fractal Design Define R6 USB-C Blackout w/ Window Picture 50068Fractal Design Define R6 USB-C Blackout w/ Window Picture 50072

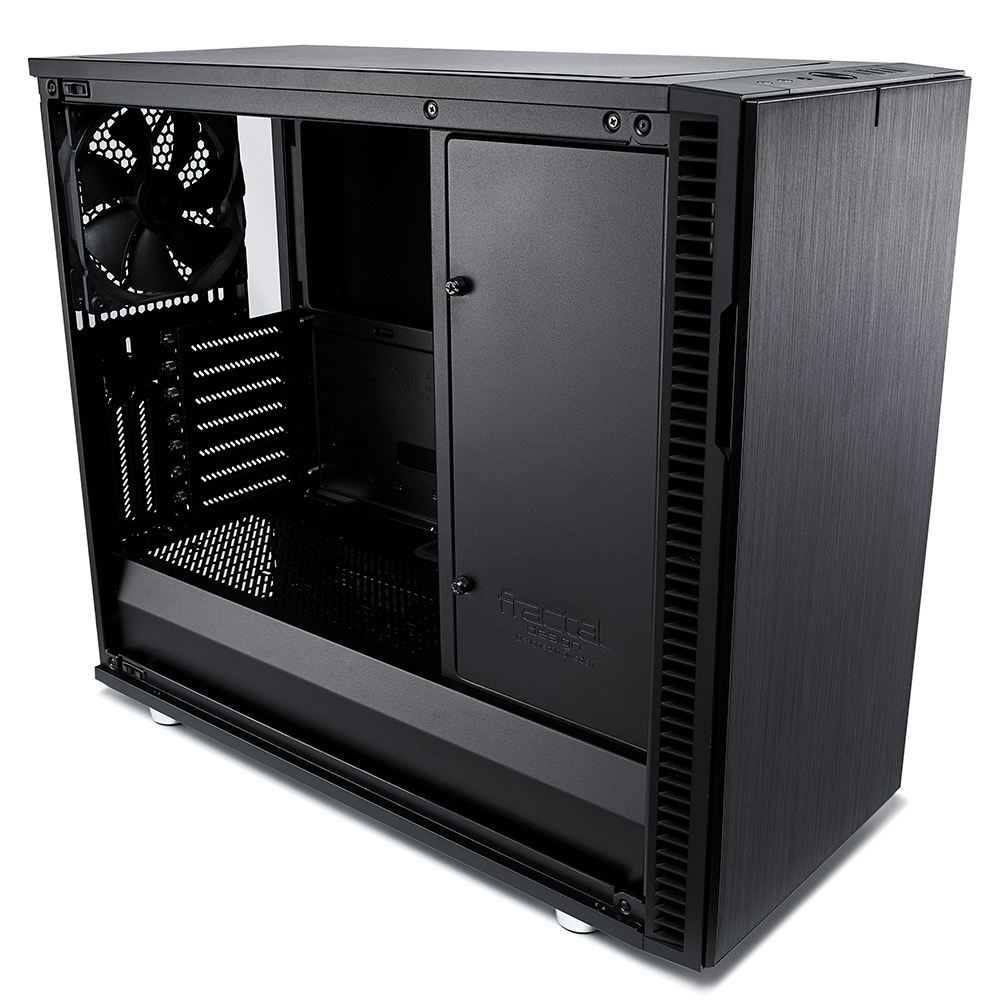

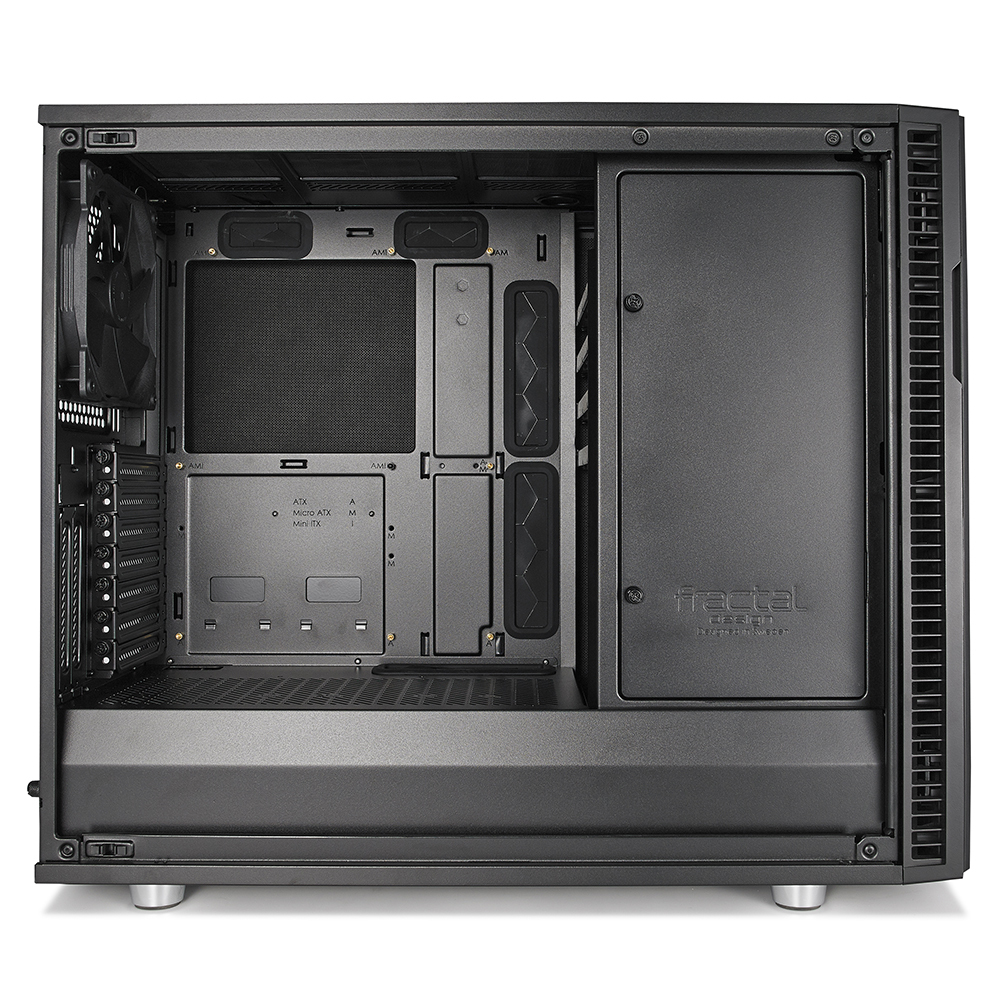

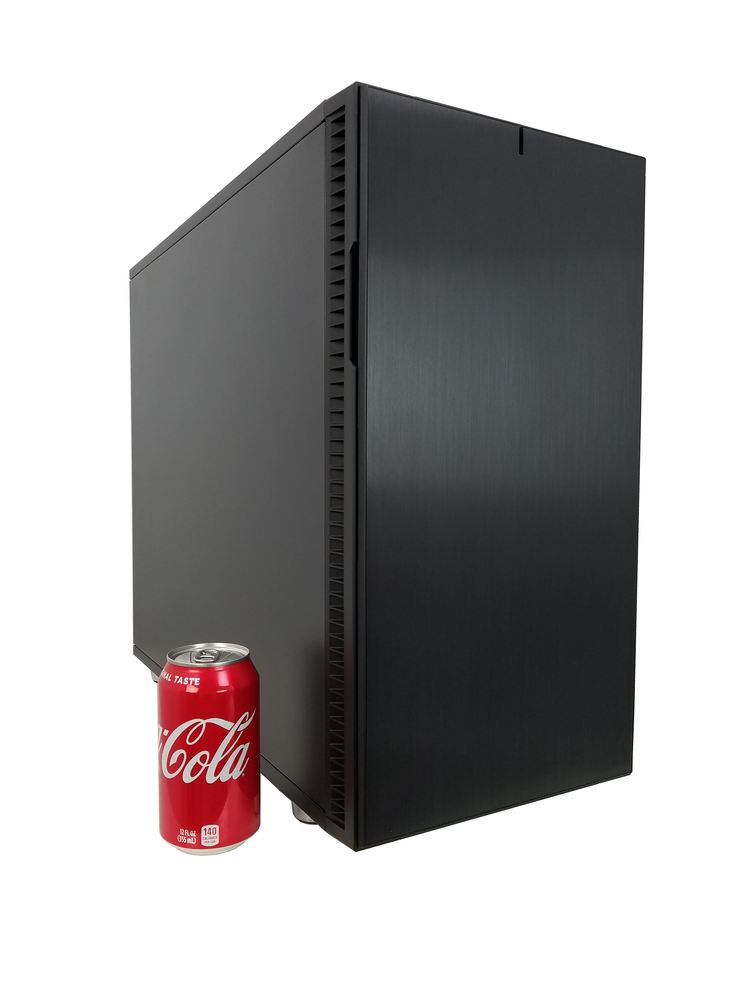

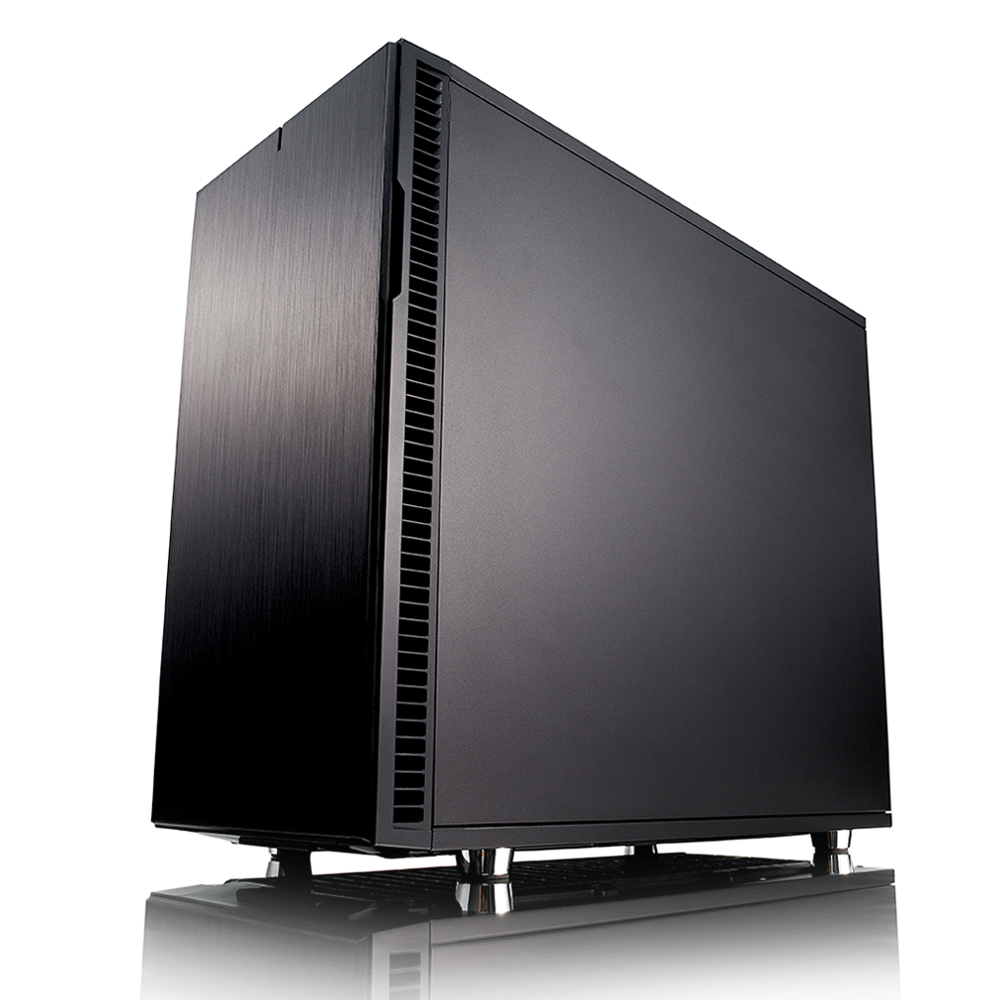

Fractal Design's Define R6 chassis is a generational upgrade to their quiet case series. It is classified as an ATX mid-tower and includes a reversible front door, noise dampening padding on the front and side panels, and filters over the front and bottom air intakes.

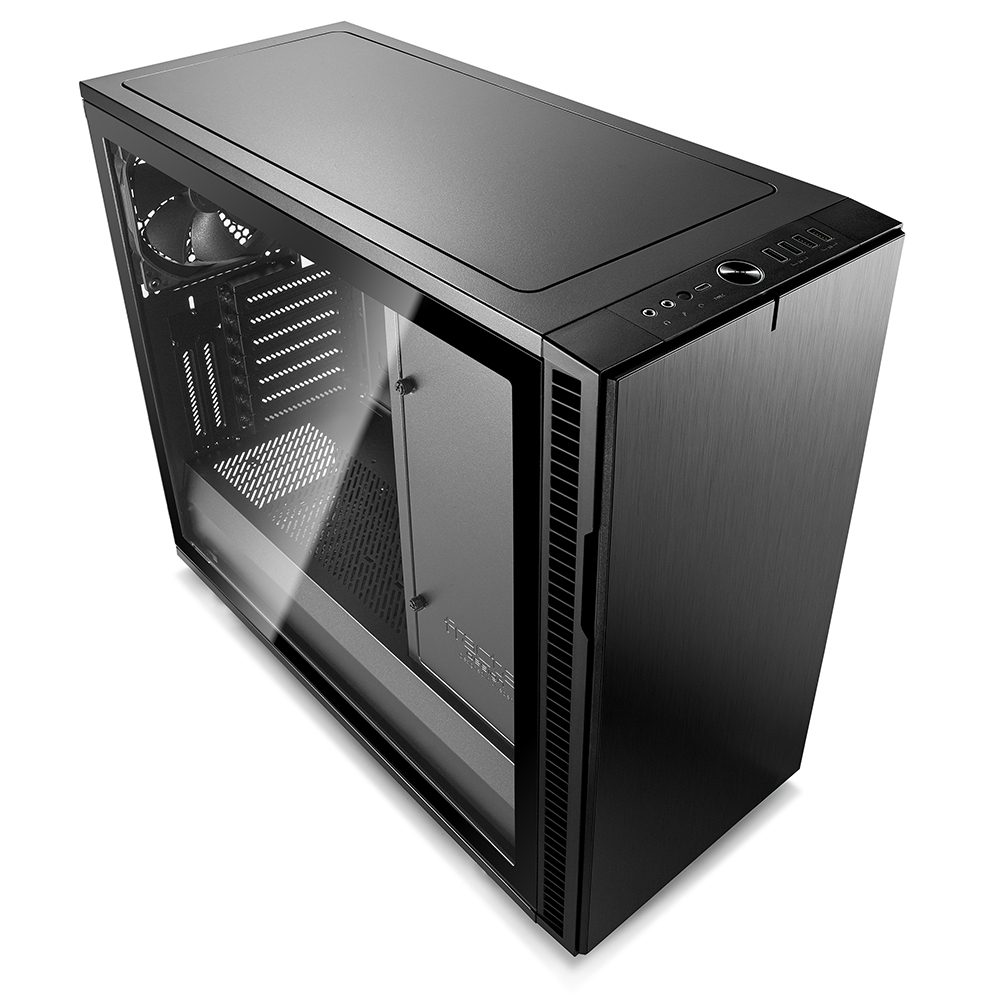

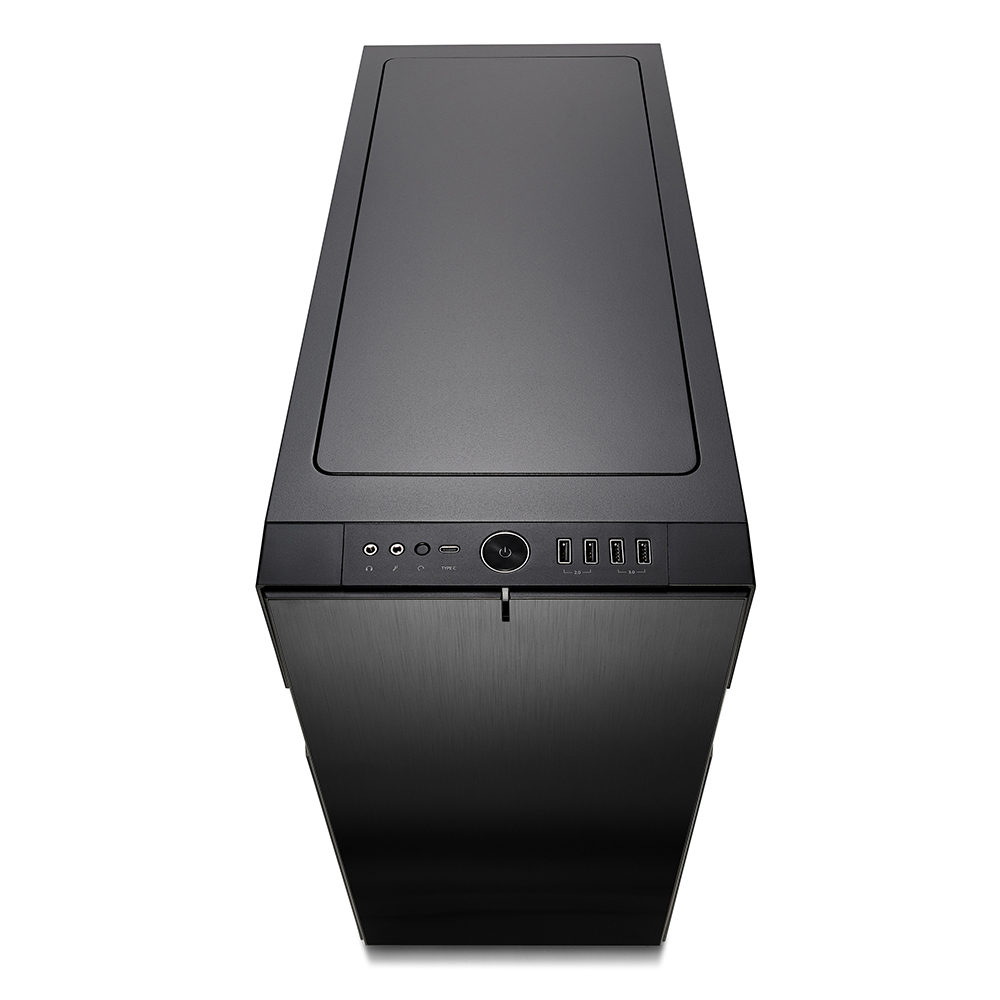

Like its predecessors, the Define R6 has a flexible design layout. There is support for one 5.25-inch front drive, six 2.5- or 3.5-inch internal drives, and two additional 2.5-inch drives. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include one USB-C, two each of USB 2.0 & 3.0 ports, and both headphone and mic plugs.

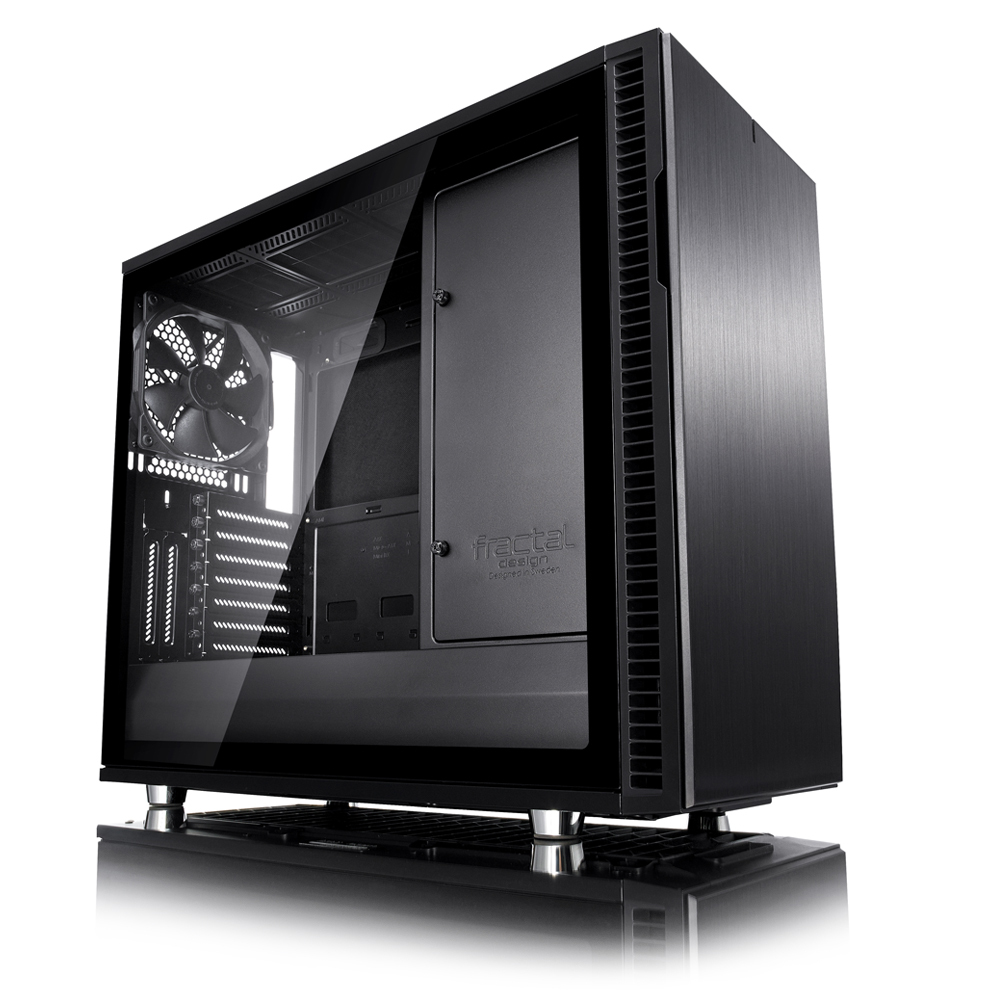

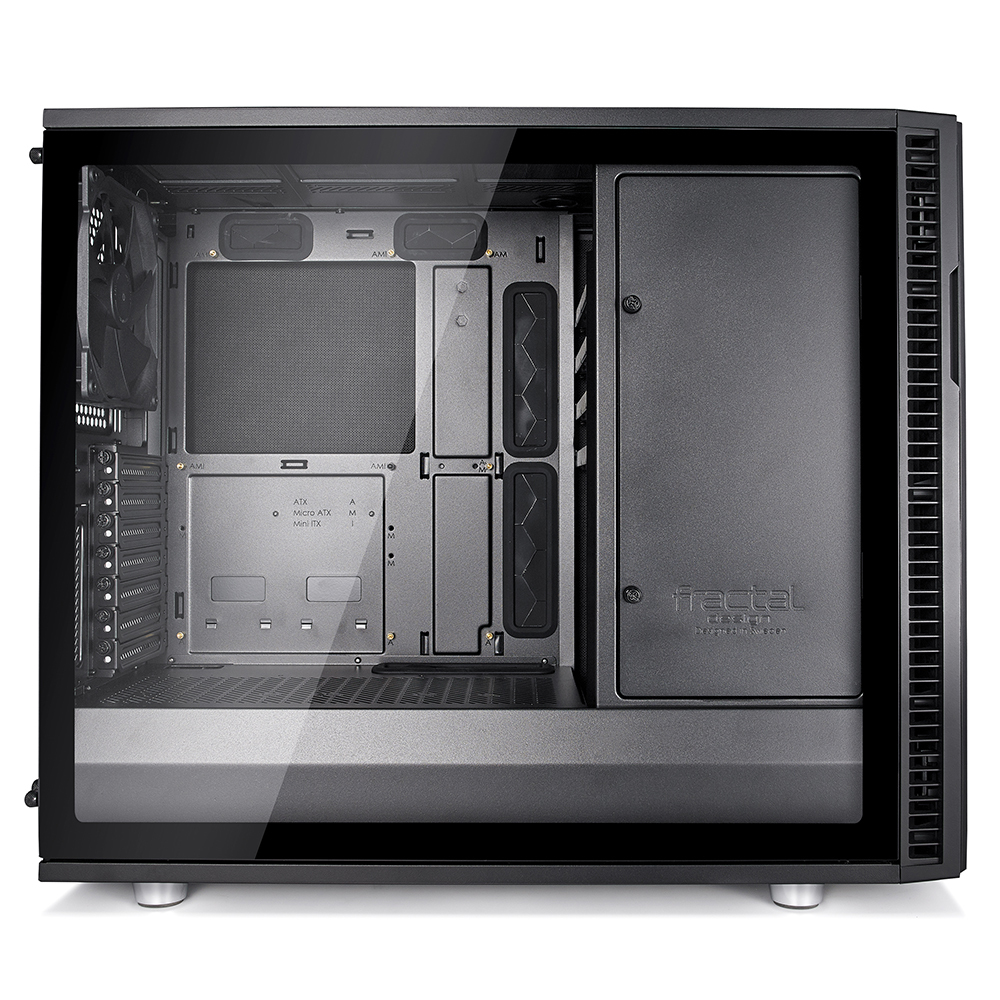

This particular version is the 'Blackout' model with a tempered glass window on the left-hand side. The entire exterior and interior is solid black, except for the clear window of course.

Model: Fractal Design FD-CA-DEF-R6C-BKO-TGL

Specifications

Color Black
Material Aluminum and plastic front panel, steel frame
Type/Size Mid Tower
Maximum Motherboard Size ATX
Case Window Yes
Dimensions
Height 465 mm (18.3 in)
Width 233 mm (9.2 in)
Depth 543 mm (21.4 in)
Net Weight 12.4 kg (27.3 lbs)
Maximum CPU Cooler Height 185 mm
Maximum GPU Length 440 mm
Maximum PSU Length 300 mm
Drive Bays
External 5.25 inch 1
External 3.5 inch 0
Internal 2.5 inch 2
Internal 2.5/3.5 inch 6

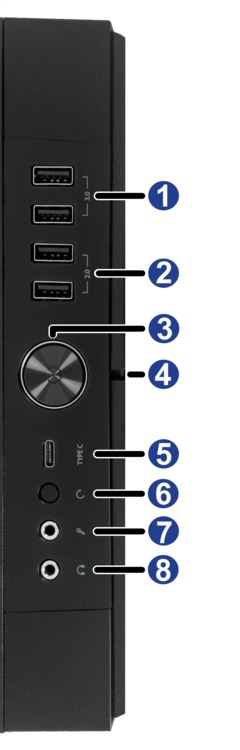

Front Panel Connectors
USB 2.0 2
USB 3.0 2
Audio In 1
Audio Out 1
USB-C 1
Cooling System
Cooling Method Air
Included Fans 3 Fractal GP-14 140mm 3-pin fans
Total Fan Mounts 6
