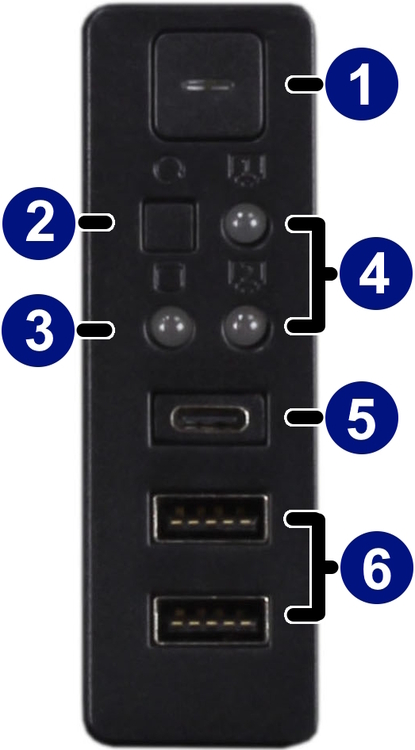

Puget RM44 4U Rev2 Ports
Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
HDD LED: Light that turns on when there is drive activity.
LAN LED: Light that turns on when there is any wired network activity.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
This 4U rackmount chassis is manufactured for Puget Systems by SilverStone. It is based on one of their standard rackmount designs - the RM44 - but with additional customizations to better suit the rack workstations and servers we build and custom Puget branding. It provides excellent cooling with three 120mm intake fans, a lot of expansion room internally, and mounting for a wide range of drive configurations.
Model: Silverstone G41OD229RM44021 (OD229)
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 4U Rackmount |
| Maximum Motherboard Size | SSI EEB |
Dimensions | |
| Height | 176 mm (6.9 in) |
| Width | 440 mm (17.3 in) |
| Depth | 468 mm (18.4 in) |
| Net Weight | 9.2 kg (20.3 lbs) |
| Maximum CPU Cooler Height | 148 |
| Maximum GPU Length | 424 |
| Maximum PSU Length | 255 |
Drive Bays | |
| External 5.25 inch | 0 |
| External 3.5 inch | 0 |
| Internal 2.5 inch | 4* |
| Internal 2.5/3.5 inch | 3* |
Front Panel Connectors | |
| USB 3.0 | 2 |
| USB-C | 1 |
Cooling System | |
| Cooling Method | Air |
| Total Fan Mounts | 2x 80mm rear, 3x 120mm front |
[Rev2]
- Up to 2x 2.5" drive mounts can be obstructed when an PCIe device occupies the bottom-most expansion slot.
- User serviceability of the front 2x 2.5" drive mounts is partially obstructed by CPU radiator..
- 1x 3.5" drive mount will be obstructed when a 1600W PSU is configured
- 1x 3.5" drive bay can be obstructed if the chassis cross brace is required for GPU bracing.
