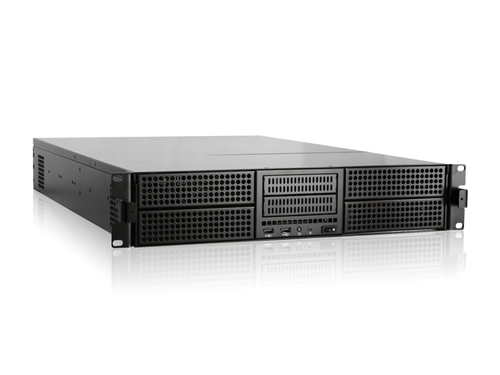

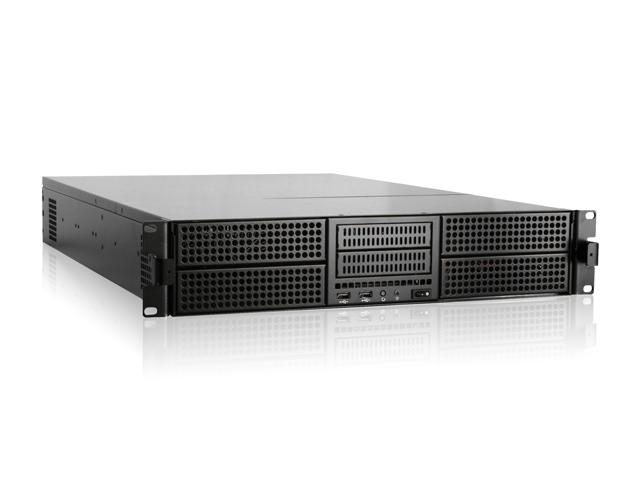

This 2U rackmount chassis from iStar is built for Extended ATX, dual-CPU motherboards. It offers a fair amount of expansion room and cooling capacity as well, for a chassis this slim, making it an ideal platform for high-performance servers.

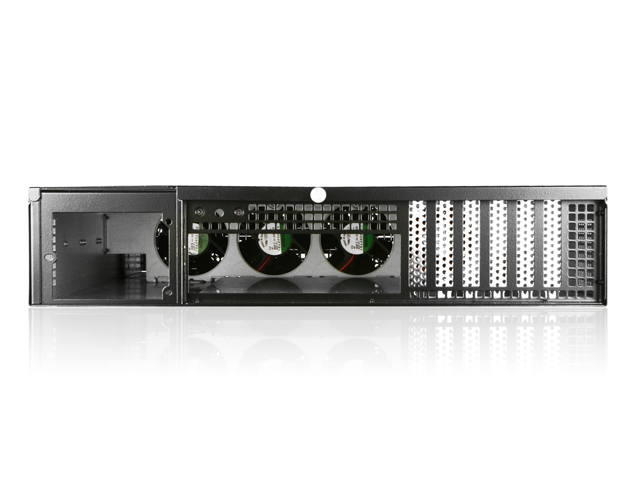

When configuring a system in this case, please note that the expansion slots are half-height.
When configuring a system in this case, please note that the expansion slots are half-height.
Jeff Stubbers (Tier 3 Consulting Lead) Says:
This is a nice 2U case for cooling while not taking up much space in your rack. Just keep in mind that any card that you add to a system using this case will need to be "low-profile" to ensure it will fit properly.
This is a nice 2U case for cooling while not taking up much space in your rack. Just keep in mind that any card that you add to a system using this case will need to be "low-profile" to ensure it will fit properly.
Model: iStarUSA E-204L
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 2U Rackmount |
| Maximum Motherboard Size | EATX |
| Power Supply | None |
Dimensions | |
| Height | 88.9 mm (3.5 in) |
| Width | 482.6 mm (19.0 in) |
| Depth | 637.5 mm (25.1 in) |
Drive Bays | |
| External 5.25 inch | 4 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 2 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 0 |
| Audio Out | 0 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 4x 80mm |

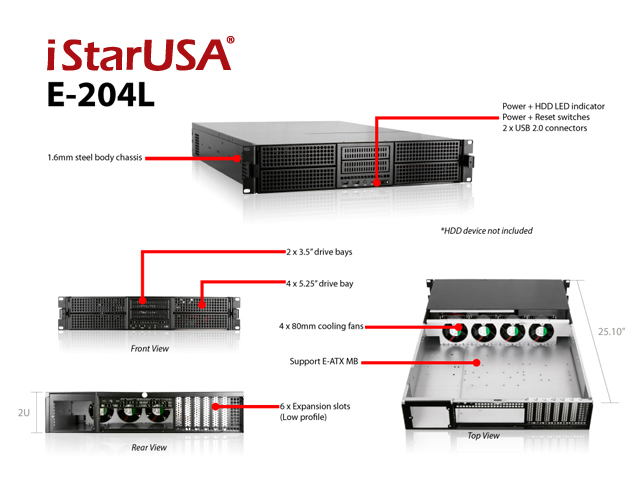

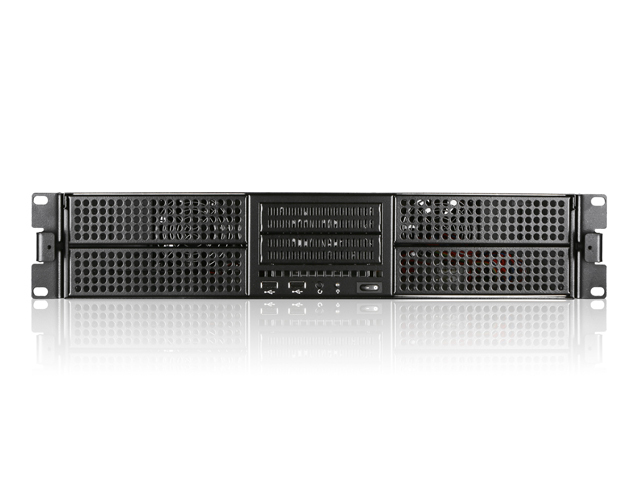

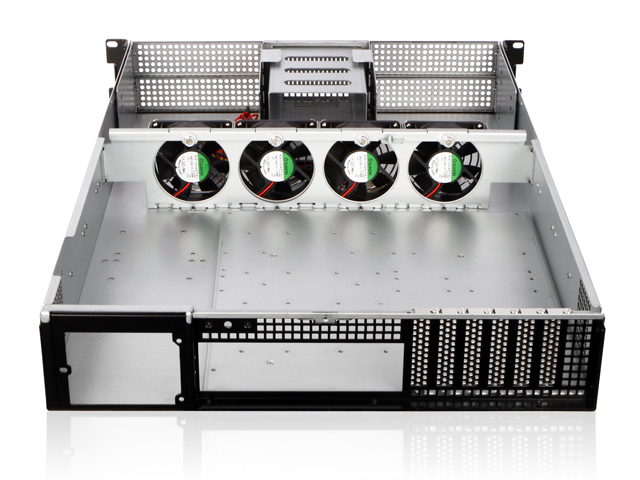

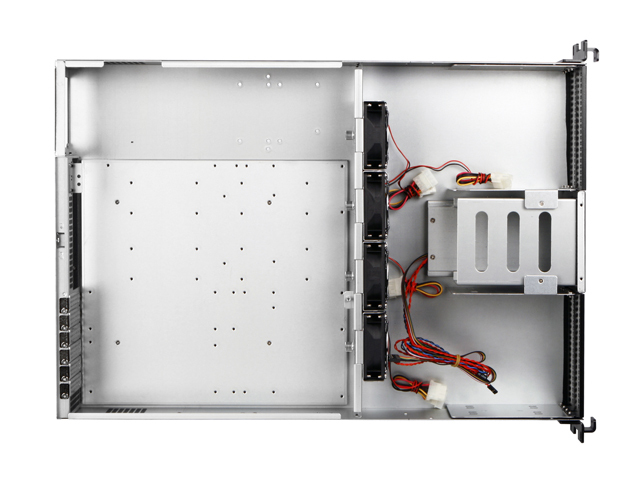

E-204L rackmount chassis is designed with four 5.25" drive bays and two 3.5" drive bays. combined with BPU 2.5" to 5.25" hdd cages provides up to 24 x 2.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-204L to provide the best air ventilation preventing critical equipment from heat damage. E-204L also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
