iStarUSA E-306L 3U Rackmount Case

Case

iStarUSA E-306L 3U Rackmount Case Picture 23787iStarUSA E-306L 3U Rackmount Case Picture 23790iStarUSA E-306L 3U Rackmount Case Picture 23789iStarUSA E-306L 3U Rackmount Case Picture 23791iStarUSA E-306L 3U Rackmount Case Picture 23792iStarUSA E-306L 3U Rackmount Case Picture 23794iStarUSA E-306L 3U Rackmount Case Picture 23795
This 3U rackmount chassis from iStar is built for Extended ATX, dual-CPU motherboards. It offers a lot of expansion room and cooling capacity as well, making it an ideal platform for high-performance servers.
Model: iStarUSA E-306L

Specifications:
spacer
Color  Black
Material  Steel
Type/Size  3U Rackmount
Maximum Motherboard Size  EATX
Power Supply  None
Dimensions
Height  131.8 mm (5.2 in)
Width  482.6 mm (19.0 in)
Depth  637.5 mm (25.1 in)
Drive Bays
External 5.25 inch  6
External 3.5 inch  3
Internal 2.5 inch  0
Front Panel Connectors
USB 2.0  2
USB 3.0  0
Firewire  0
Audio In  0
Audio Out  0
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  Internal 4x 80mm, Rear 2x 60mm

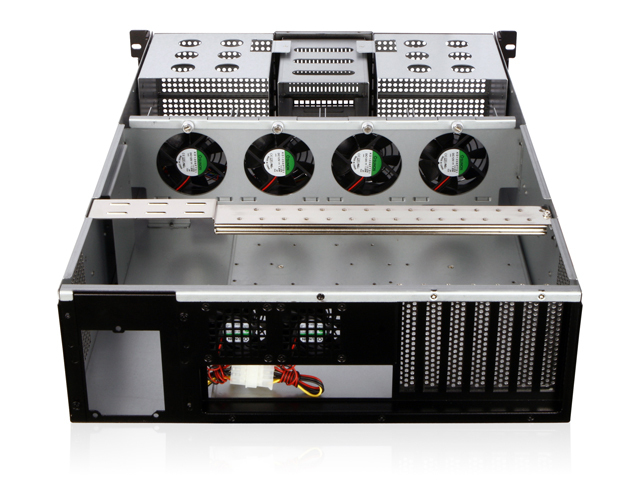

E-306L rackmount chassis is designed with six 5.25" drive bays Indicatorsand three 3.5" drive bays. combined with BPU 3.5" to 5.25" hdd cages provides up to 13 x 3.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-306L to provide the best air ventilation preventing critical equipment from heat damage. E-306L also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.




Configure a custom computer with the iStarUSA E-306L 3U Rackmount Case.
