iStarUSA E4M20 4U Storage Rackmount Chassis

Case

iStarUSA E4M20 4U Storage Rackmount Chassis Main Picture


iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23232iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23233iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23234iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23235iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23236iStarUSA E4M20 4U Storage Rackmount Chassis Picture 23237

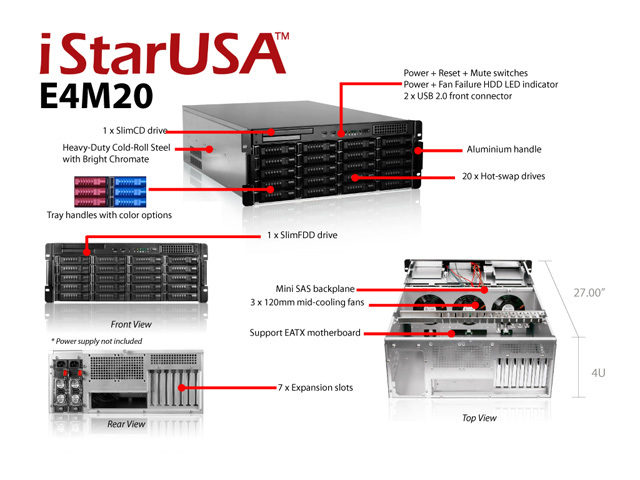

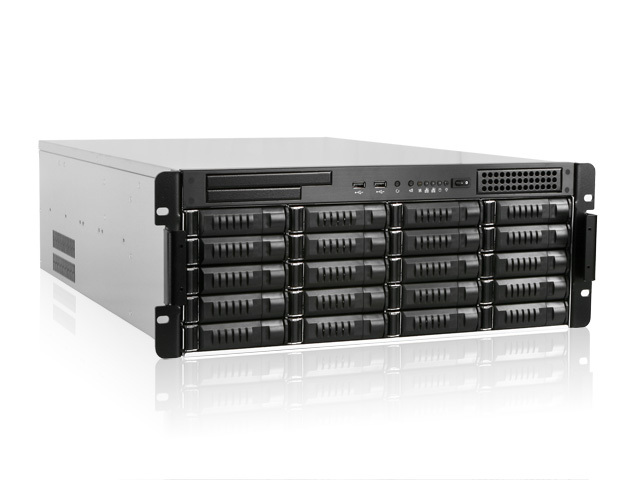

This 4U rackmount chassis from iStar is built for Extended ATX, dual-CPU motherboards. Moreover, it has an array of twenty 3.5-inch removable drive bays along the front, providing room for tons of storage to be built into the system. That combination allows this chassis to serve equally well as a dedicated storage solution or a high-end server with massive storage capacity built right in.

Model: iStarUSA E4M20

Specifications

Color Silver & Black
Material Steel
Type/Size 4U Rackmount
Maximum Motherboard Size EATX
Power Supply None
Dimensions
Height 177.8 mm (7.0 in)
Width 482.6 mm (19.0 in)
Depth 685.8 mm (27.0 in)
Drive Bays
External 5.25 inch 0
External 3.5 inch 1
Internal 3.5 inch 1
Internal 2.5 inch 0
Slim 5.25 inch 1
Removable 3.5 inch 20
Front Panel Connectors
USB 2.0 2
USB 3.0 0
Firewire 0
Audio In 0
Audio Out 0
eSATA 0
Cooling System
Cooling Method Air
Included Fans 3x 120mm
Total Fan Mounts Rear 2x 80mm

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
