Highpoint RocketRAID 3720C 8 Port RAID Controller

Controllers

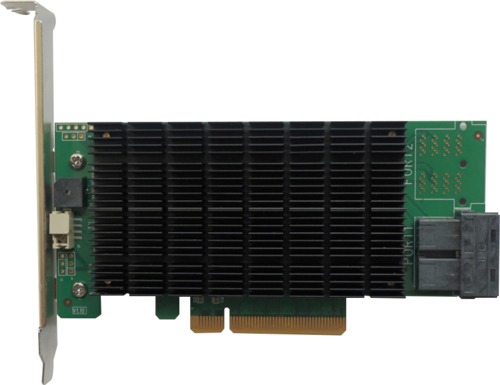

Highpoint RocketRAID 3720C 8 Port RAID Controller Main Picture

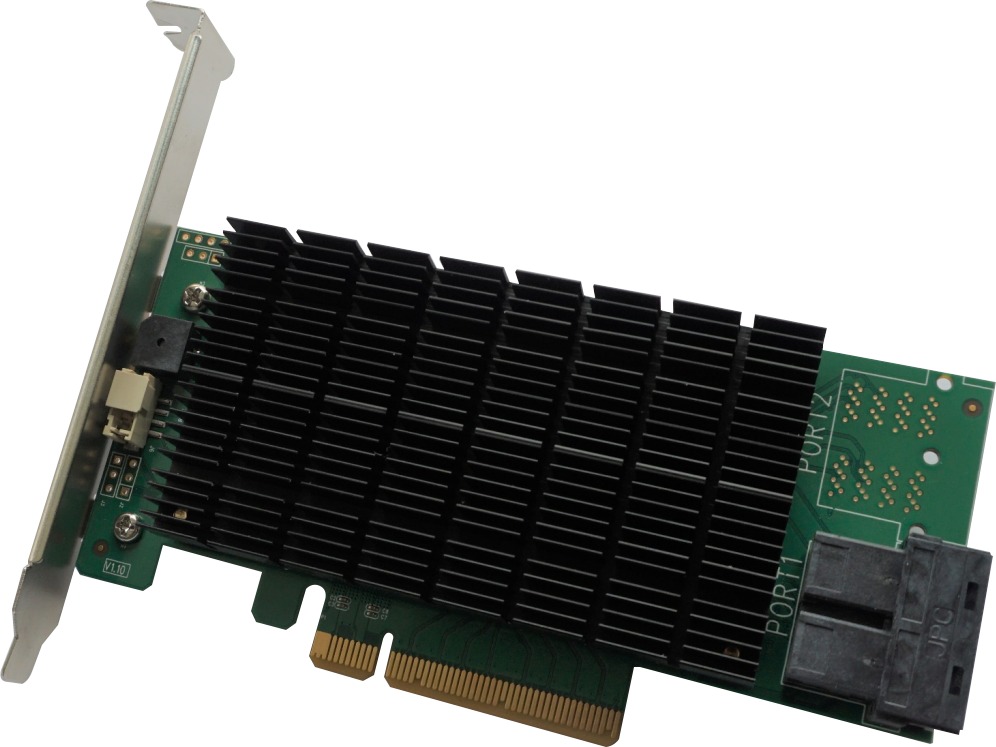

Highpoint RocketRAID 3720C 8 Port RAID Controller Picture 79699Highpoint RocketRAID 3720C 8 Port RAID Controller Picture 79700
Highpoint's RocketRAID 3720C is an 8-port SAS / SATA controller card with support for a wide range of RAID modes. It uses a PCI-Express x8 slot and includes both full and half-height brackets, so it can fit in almost any system so long as there is a free expansion slot that has x8 or more lanes. For cooling there is a heatsink but no fan, so this card does not add any noise to the system - though if you are using traditional hard drives with it those will definitely be noisy. SATA-based SSDs are supported as well, though, for users who want high capacity, redundancy, and quiet operation.

Model: Highpoint RR3720C

Specifications

Card Specifications
Manufacturer Highpoint
Type of Ports Mini-SAS SFF8643
Number of Ports 8
Port Location(s) Rear
RAID Modes Supported 0, 1, 5, 6, 10, 50
Native Supported Disks 8
Maximum Supported Disks 8
Motherboard Connection PCI Express x8
Interface PCI Express 3.0 x8
Form Factor Low/Full Height
Dimensions
Height 69 mm (2.7 in)
Width 18.5 mm (0.7 in)
Depth 143 mm (5.6 in)
Net Weight 0.15 kg (0.3 lbs)

RAID 0
[Read]
SEQ 1MiB (Q= 8, T= 1): 4078.806 MB/s [ 3889.9 IOPS] < 2055.44 us>
SEQ 1MiB (Q= 1, T= 1): 3292.096 MB/s [ 3139.6 IOPS] < 318.38 us>
RND 4KiB (Q= 32, T= 1): 415.620 MB/s [ 101469.7 IOPS] < 305.39 us>
RND 4KiB (Q= 1, T= 1): 46.243 MB/s [ 11289.8 IOPS] < 88.48 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 3752.545 MB/s [ 3578.7 IOPS] < 2226.00 us>
SEQ 1MiB (Q= 1, T= 1): 3111.256 MB/s [ 2967.1 IOPS] < 336.81 us>
RND 4KiB (Q= 32, T= 1): 363.706 MB/s [ 88795.4 IOPS] < 348.99 us>
RND 4KiB (Q= 1, T= 1): 97.585 MB/s [ 23824.5 IOPS] < 41.88 us>

RAID 1
[Read]
SEQ 1MiB (Q= 8, T= 1): 1054.137 MB/s [ 1005.3 IOPS] < 7944.89 us>
SEQ 1MiB (Q= 1, T= 1): 641.315 MB/s [ 611.6 IOPS] < 1634.30 us>
RND 4KiB (Q= 32, T= 1): 436.599 MB/s [ 106591.6 IOPS] < 290.73 us>
RND 4KiB (Q= 1, T= 1): 46.136 MB/s [ 11263.7 IOPS] < 88.68 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 490.893 MB/s [ 468.2 IOPS] < 17028.02 us>
SEQ 1MiB (Q= 1, T= 1): 477.752 MB/s [ 455.6 IOPS] < 2193.25 us>
RND 4KiB (Q= 32, T= 1): 308.383 MB/s [ 75288.8 IOPS] < 411.61 us>
RND 4KiB (Q= 1, T= 1): 92.401 MB/s [ 22558.8 IOPS] < 44.23 us>

RAID 5
[Read]
SEQ 1MiB (Q= 8, T= 1): 3603.283 MB/s [ 3436.4 IOPS] < 2324.21 us>
SEQ 1MiB (Q= 1, T= 1): 2425.201 MB/s [ 2312.9 IOPS] < 432.21 us>
RND 4KiB (Q= 32, T= 1): 330.681 MB/s [ 80732.7 IOPS] < 383.85 us>
RND 4KiB (Q= 1, T= 1): 44.923 MB/s [ 10967.5 IOPS] < 91.07 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 2702.061 MB/s [ 2576.9 IOPS] < 3098.34 us>
SEQ 1MiB (Q= 1, T= 1): 2702.992 MB/s [ 2577.8 IOPS] < 387.65 us>
RND 4KiB (Q= 32, T= 1): 96.167 MB/s [ 23478.3 IOPS] < 1362.41 us>
RND 4KiB (Q= 1, T= 1): 28.059 MB/s [ 6850.3 IOPS] < 145.83 us>
