Intel RS25DB080 RAID Controller

Controllers

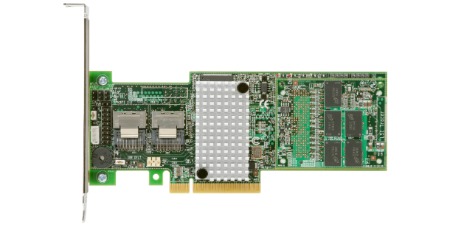

Intel RS25DB080 RAID Controller Picture 18372
Model: Intel RS25DB080

Specifications:
spacer
Card Specifications
Manufacturer  Intel
Type of Ports  SATA 6Gbps
Number of Ports  8
Port Location(s)  Internal
RAID Modes Supported  0,1,5,6,10,50,60
Battery Backup Available?  Yes
Slot Style  PCI-Express x8
Form Factor  Low/Full Height
Controller Chip
Brand  LSI
Model  2208
Memory Amount  1024 MB
Memory Expandable?  No

SAS to 4 x SATA breakout cables not included



Further Reading

with the Intel RS25DB080 RAID Controller.
