LSI 9341-8i SAS/SATA RAID Controller

Controllers

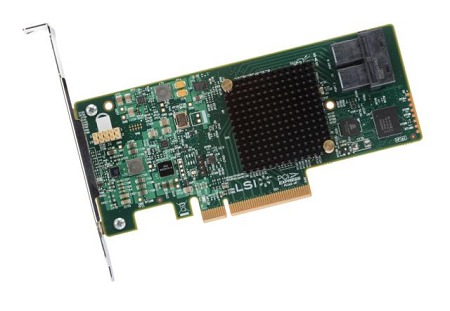

LSI 9341-8i SAS/SATA RAID Controller Picture 28865
Model: LSI LSI00408

Specifications:
spacer
Card Specifications
Manufacturer  LSI
Type of Ports  Mini-SAS SFF8643
Number of Ports  2
Port Location(s)  Internal
RAID Modes Supported  0, 1, 5, 10 and 50
Native Supported Disks  8
Maximum Supported Disks  128
Battery Backup Available?  Yes
Slot Style  PCI-Express x8
Form Factor  Low/Full Height
Controller Chip
Brand  LSI
Model  LSISAS3008 PowerPC 476 controller @ 1.2 GHz
Memory Expandable?  No

This RAID controller only supports stripe sizes of 64KB (optimal for SSD) and does not support Write Back (write caching)
