Silverstone USB 3.0 PCI-Express card (EC04-P)

Controllers

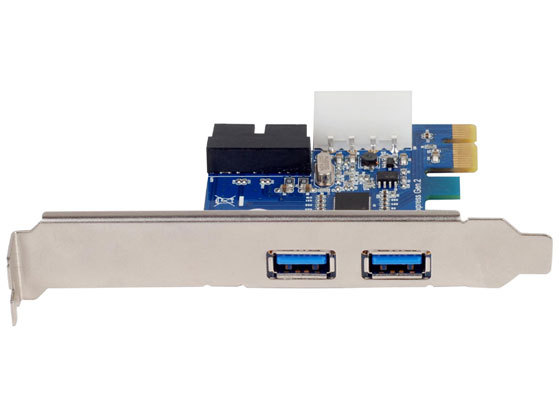

Silverstone USB 3.0 PCI-Express card (EC04-P) Main Picture

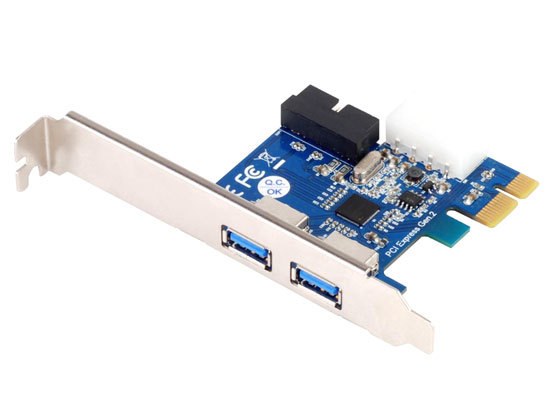

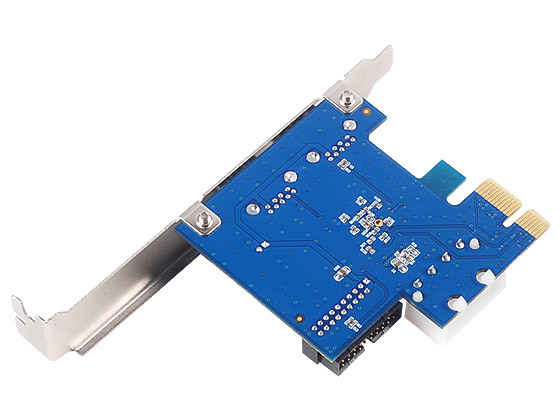

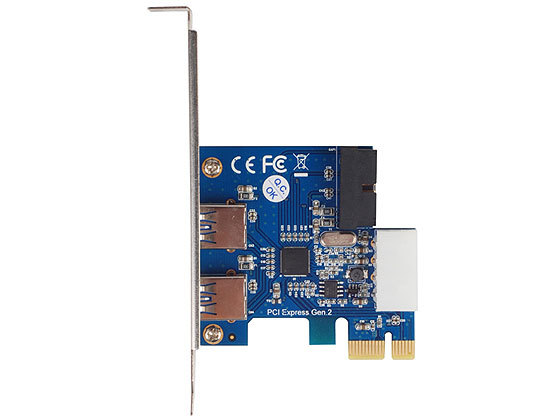

Silverstone USB 3.0 PCI-Express card (EC04-P) Picture 22049Silverstone USB 3.0 PCI-Express card (EC04-P) Picture 22050Silverstone USB 3.0 PCI-Express card (EC04-P) Picture 22051
This add-on card provides four USB 3.0 ports: two via an internal header, and two more directly on the back of the card. The internal connection is useful if you have a chassis with front USB 3.0 ports - or some other front bay device that needs USB 3.0 - and a motherboard that doesn't have a free internal header already. Even if you don't need an internal header the rear-panel USB 3.0 ports provide easy access and make this card a great option for upgrading older computers that may not have come with USB 3.0 built-in.

To accommodate the full speed potential of these new connections it requires a PCI-Express 2.0 x1 slot (or larger) on the motherboard, along with a Molex power cable to ensure adequate amperage to your devices that draw power over USB.

Model: Silverstone EC04-P

Specifications

Card Specifications
Manufacturer Silverstone
Type of Ports USB 3.0
Number of Ports 3
Port Location(s) 2 external ports, 1 internal header
Interface PCI-Express x1
Form Factor Low/Full Height
Controller Chip
Brand NEC
Model uPD720201
