Seagate Firecuda 520 Gen4 1TB M.2 SSD

Hard Drive

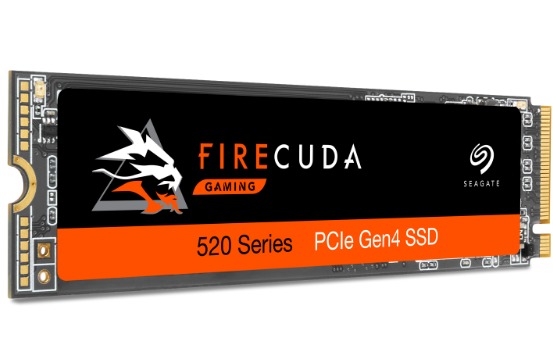

Seagate Firecuda 520 Gen4 1TB M.2 SSD Picture 58483

Background on Solid State Drives

Solid-state drives (SSDs) store data electrically, rather than on magnetic disks like traditional hard drives (HDDs). This means there is virtually no delay when seeking a specific bit of data, and there is no physical limitation to how fast reading and writing of data can happen. Instead, the limits come down to the controller inside the drive, the speed at which the individual flash memory chips can transfer information, and the connection between the drive and the rest of the computer.

These drives are available in many physical forms: 2.5-inch (similar in size to laptop HDDs), PCI-Express (which slot into a system like a graphics card), and M.2 "sticks". The more traditionally shaped drives usually connect to motherboards via SATA, just like hard drives do, and that connection itself tends to be the limiting factor in their performance. M.2 drives can use either SATA or the much faster PCI-Express connection, depending on the drive itself and the motherboard it is installed in. There are also U.2 drives, which are close in size to the 2.5-inch models but use a much faster data connection; they are found more often in servers and datacenters than in desktop workstations.


Seagate's Firecuda 520 Gen4 line of solid-state drives is among the first to support PCI-Express 4. In theory this offers twice the bandwidth that PCI-E 3 provided, enabling faster read and write performance - though in reality those are not fully double the speed of older drives. Still, if you need the fastest data transfer rates currently available then this 1TB model has sequential read speeds of up to 5GB/s with write speeds up to 4.4GB/s.

Please note that because this drive is built to take advantage of PCI-Express Gen 4, we only offer it as an option on systems with motherboards that support that PCI-E standard. For configurations with PCI-E Gen 3, there are other SSDs which will work better with that generation of technology.

Note: Throughput is limited to 3000 MB/s when used in a Gen3 M.2 slot.

Model: Seagate ZP1000GM30002

Specifications:
spacer
Capacity  1,000 GB
Interface  PCIe 4.0 x4
Form Factor  M.2 2280
Endurance (TBW)  1,800 TBW
Peak Power Draw  10 Watts
Net Weight  0.009 kg (0.0 lbs)
Performance
Sequential Read  5,000 MB/s
Sequential Write  4,400 MB/s
Random 4KB Read  760,000 IOPS
Random 4KB Write  700,000 IOPS
