Seagate IronWolf Pro 18TB SATA3

Hard Drive

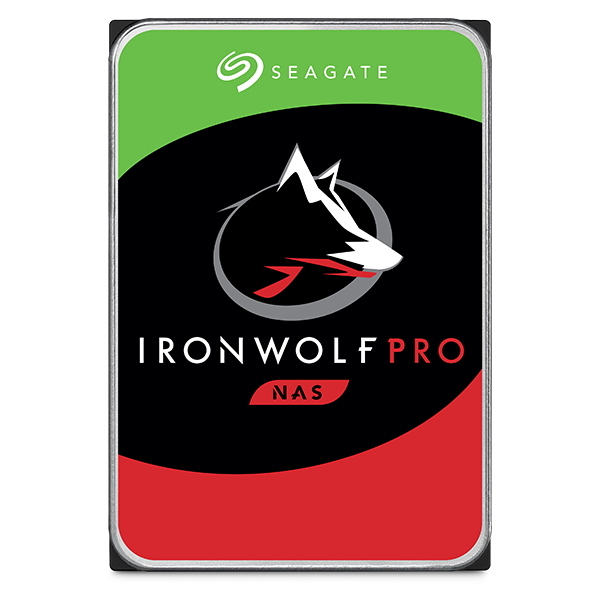

Seagate IronWolf Pro 18TB SATA3 Picture 69014

Background on Hard Disk Drives

Traditional hard drives operate by storing data on one or more spinning metal disks, called platters. The more platters there are in a drive, and the more data that can be crammed onto each platter, is what determines the overall storage capacity of a given hard drive. Having more platters also tends to mean louder drives, though rotational speed affects that as well. Rotational speed also impacts the drive's performance: if platters spin faster the drive can reach data in different areas more quickly and read or write more information per second.

The alternative to hard drives is solid state drives, which are many times faster but much more expensive for the same amount of capacity. The price gap is dropping over time, so SSDs are becoming more and more preferred for us. For performance, reliability, and noise reduction, SSDs are really the way to go.


Seagate IronWolf Pro drives are built for fast, always-on access. They use the SATA 6Gbps interconnect, spin at 7200rpm, have 256 MB of cache, include rotational vibration sensors, and are available in 4 to 18TB capacities. Those features makes them ideal for multi-drive arrays and network attached storage (NAS) systems, but they work equally well as storage and backup drives in a workstation.
Model: Seagate ST18000NE000

Specifications:
spacer
Capacity  18,000 GB
Rotation Speed  7200 RPM
Interface  SATA 6 Gb/s
Cache Size  256 MB
Form Factor  3.5 Inch
Idle Noise  28 dB
Seek Noise  32 dB
Peak Power Draw  9 Watts
Large Drive Mounting  Yes
Net Weight  0.670 kg (1.5 lbs)
Performance
Sequential Read  260 MB/s
Sequential Write  260 MB/s


Configure a custom computer with the Seagate IronWolf Pro 18TB SATA3.
