Seagate SATA Barracuda 80GB

Hard Drive

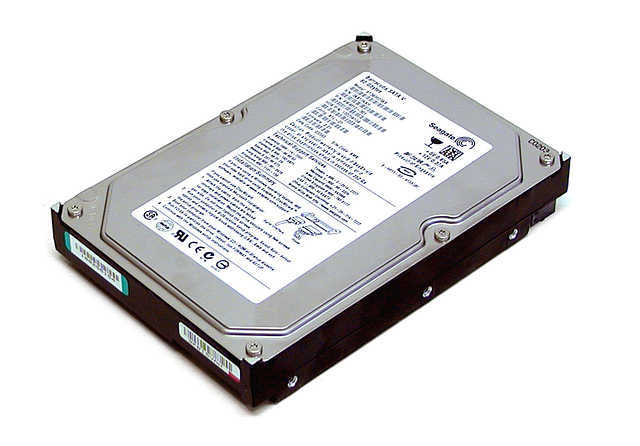

Seagate SATA Barracuda 80GB Picture 3173
Model: Seagate ST380817AS

Features:
  • 350 Gs non-op shock - Protection against handling damage
  • 3D Defense System - Protection against handling damage and data loss.
  • 7,200 RPM desktop performance and 8MB cache; SATA interface with NCQ Top performance
  • World's first SATA desktop drive with NCQ
  • Best-in-class non-operating shock for excellent reliability
  • Best combination of performance, acoustics and robustness
  • Idle acoustics of 2.5 bels- the industry's best

Configuration/Organization
Discs/Heads: 1/2
Bytes per Sector: 512
Logical CHS: 16383/16/63
Recording Method: 16/17 EPRML
Contact Start-Stops: 50000
SeaShield System: No

Reliability/Data Integrity
S.M.A.R.T. capable: Yes
Nonrecoverable Read Errors per Bits Read: 1 per 10 14

Power Requirements
12 VDC +/-10% (amps typ operating): 2.8

Power Management (watts)
Seek: 13.5
Read/Write: 13
Idle: 9
Standby: 2

Environmental
Operating Temperature (*C): 0 to 60
Nonoperating Temperature (*C): 70 to -40
Operating Shock (Gs) @ 2 msec: 63
Non Operating Shock (Gs) @ 2 msec: 350
Acoustics,Idle (Bels-typ sound power): 2.5

Dimensions
Height (mm): 26.035
Width (mm): 101.6 >
Depth (mm): 146.99
Weight (kg): 0.635

Specifications
Model Number: ST380817AS
Capacity: 80 GB
Speed: 7200 rpm
Seek time: 8.5 ms avg
Interface: SATA 1.5Gb/s

Performance
Internal Transfer Rate (Mbits/sec): 683
Max. External Transfer Rate (Mbytes/sec): 150
Avg. Sustained Transfer Rate (Mbytes/sec): >58
Average Seek (msec): 8.5
Average Latency (msec): 4.16
Multisegmented Cache: 8192
Spindle Speed (RPM): 7200



Warranty:

5 Year limited Warranty




with the Seagate SATA Barracuda 80GB.
