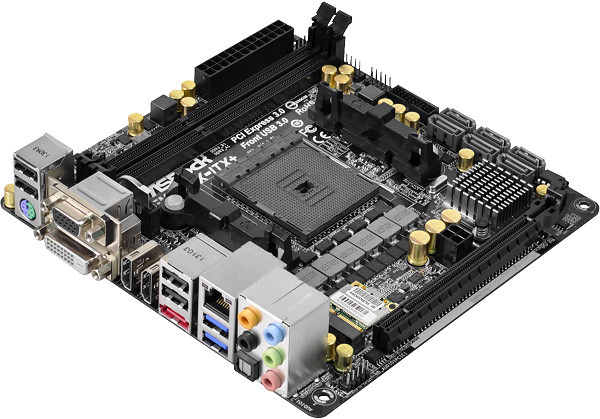

ASRock FM2A88X-ITX+ Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
HDMI In Port: HDMI input allowing pass-through of the video source to your monitor, via the on-board VGA output.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.

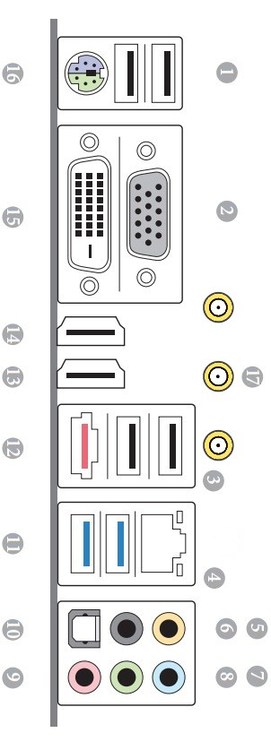

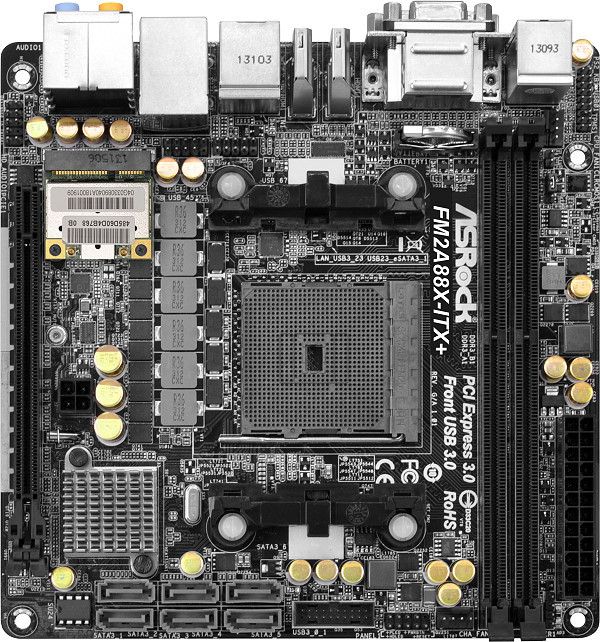

ASRock FM2A88X-ITX+ Schematic
Model: ASRock FM2A88X-ITX+
Specifications
| Socket | FM2+ |
| CPU Compatibility | AMD A10/A8/A6/A4-series |
| Form Factor | Mini-ITX |
| Chipset Manufacturer | AMD |
| Chipset | A88X |
| Network Connectivity | Gigabit Networking + 802.11 A/B/G/N |
| Network Controller | Qualcomm Atheros AR8171 |
| Audio Controller | Realtek ALC1150 |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 2133 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | Integrated AMD Radeon HD 7000/8000 Series Graphics in A-series APU |
| Maximum Shared Memory | 2048 MB |
| Maximum DVI Resolution | 2560x1600 |
| Maximum HDMI Resolution | 1920x1200 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
| Notes: | Includes HDMI-In Pass-through Port |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 6 |
| mSATA III 6.0Gbps | 1 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD A88X |
| mSATA III 6.0Gbps Controller 1 | AMD A88X |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
Additional Information | |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes (4.0) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 170 mm (6.7 in) |
| Width | 170 mm (6.7 in) |
