ASRock Z270M Extreme4

Motherboard

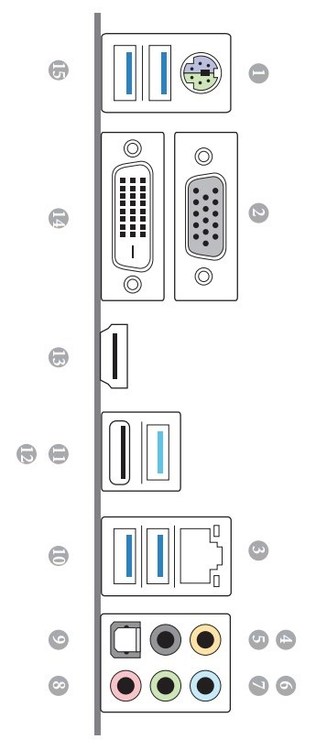

[ Rear Ports ][ Schematic ]

ASRock Z270M Extreme4 Picture 42177ASRock Z270M Extreme4 Picture 42178ASRock Z270M Extreme4 Picture 42179ASRock Z270M Extreme4 Picture 42062ASRock Z270M Extreme4 Picture 42049
The ASRock Z270M Extreme4 is a Micro ATX motherboard for Intel's Kaby Lake processor platform. It is on the higher end of ASRock's motherboard line, and has a great mix of features considering the smaller board size.

In terms of connectivity, this board has VGA, DVI, and HDMI outputs from the onboard graphics. For memory it has four DDR4 slots, allowing up to 64GB of RAM. Drive connectivity includes six SATA III ports and two M.2 slots for high-speed SSDs. It also has both analog and digital audio outputs, Gigabit Ethernet, four USB 3.0, and two USB 3.1 (including one Type C port). Four PCI-Express slots in varying sizes are present, with support for both SLI and Crossfire.
Jeff Stubbers (Mr. Customer Service)
Jeff Stubbers (Mr. Customer Service) Says:
This is a nice smaller Micro-ATX motherboard that allows for smaller case choices. However the down side is that it comes with less PCI-E expansion slots - a total of 4. If you would like more PCI-E expansion slots, you may want to consider the standard ATX sized Asus STRIX Z270E instead, which has 7 PCI-E slots.
Model: ASRock Z270M Extreme4

Specifications:
spacer
Socket  1151
CPU Compatibility  Intel Socket 1151 for 7th Generation Processors
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  Z270
Front Side Bus  DMI 3.0
Network Connectivity  Gigabit Networking
Network Controller  Intel
Audio Controller  Onboard Realtek ALC892 7.1 Channel HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2400 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  512 MB
Maximum DVI Resolution   1920x1200
Maximum HDMI Resolution   4096x2160
DVI  1
VGA  1
HDMI  1
HDMI Version  1.4b
External Connections
USB 3.0  4
USB 3.1  1
USB 3.1 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.0  2 (providing 4 ports)
SATA III 6.0Gbps  6
M.2 Connector  2
M.2 Support  Socket 3 for M Key, type 2242/2260/2280/22110 devices
TPM  1
SATA Controllers
SATA III 6.0Gbps Controller 1  6 port - Intel Z270
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 3.0 x1
Slot 3  PCI Express 3.0 x8 in a x16 size
Slot 4  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)
