ASUS NUC 14 Performance

Motherboard

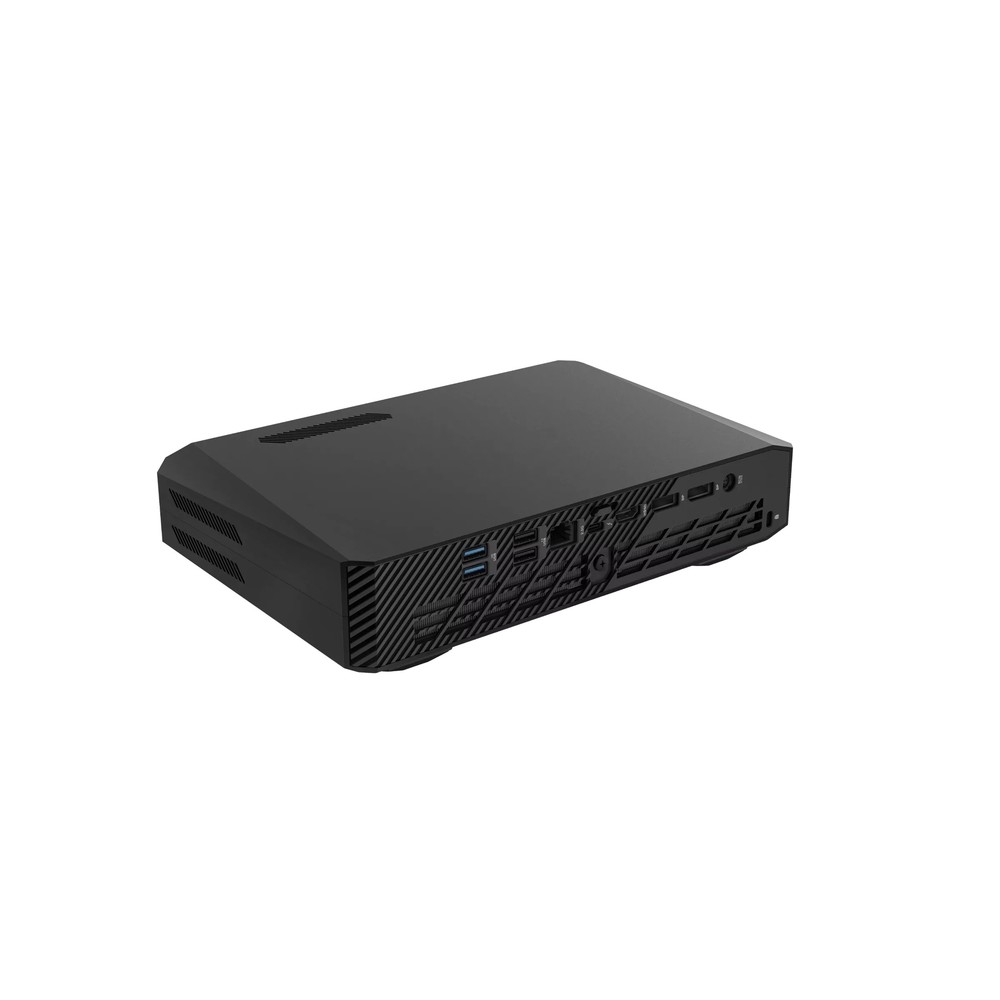

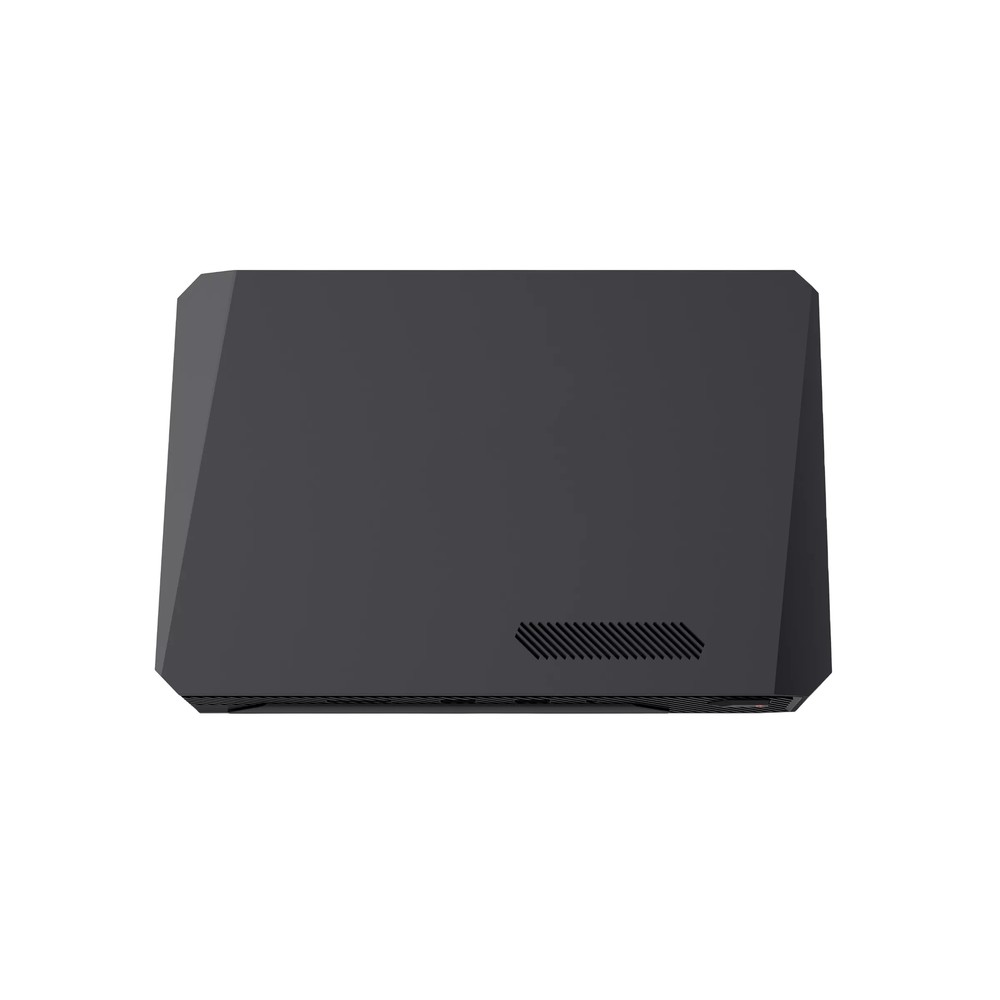

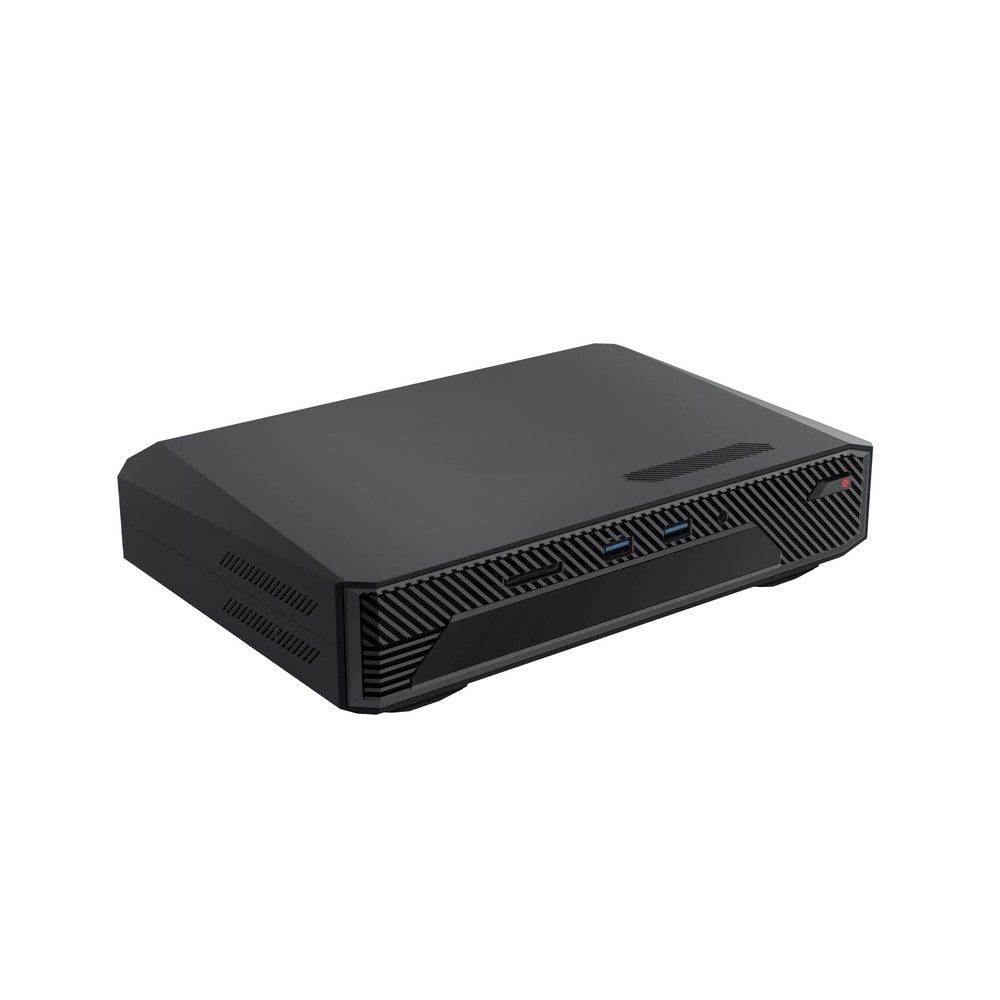

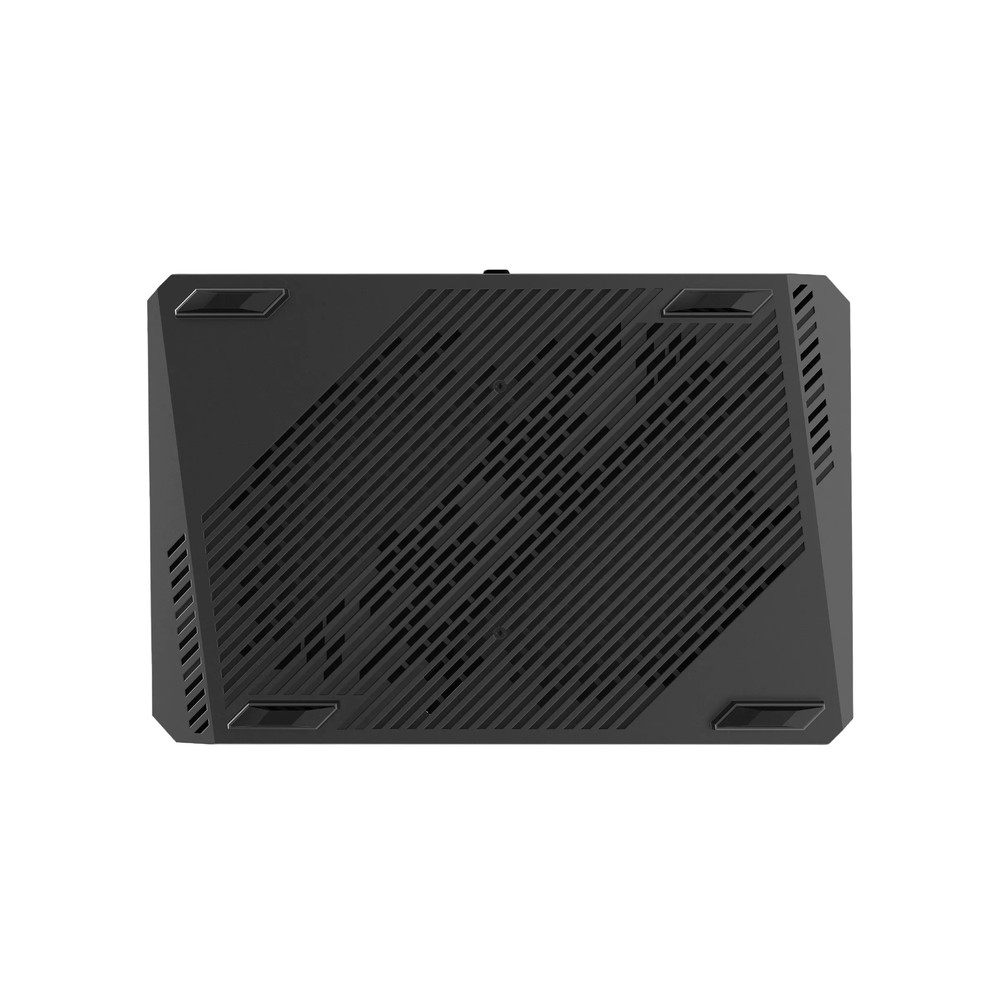

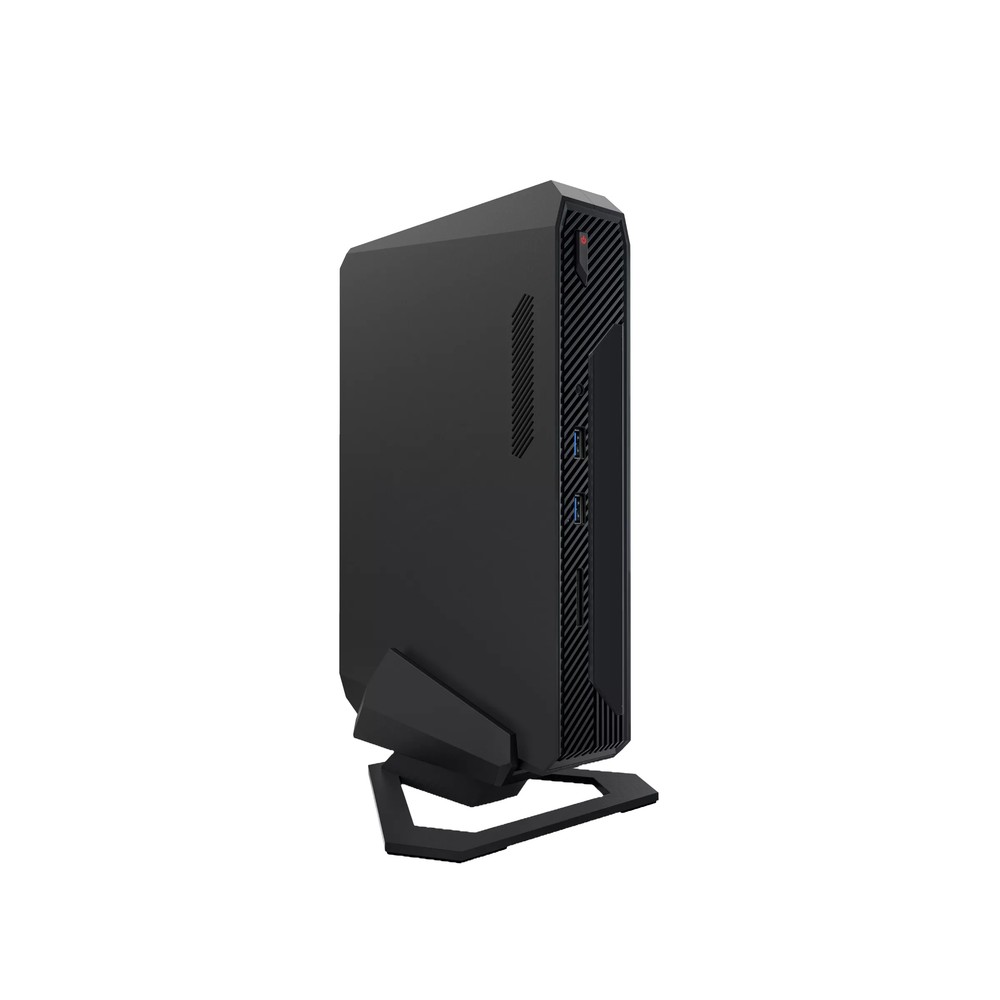

ASUS NUC 14 Performance Main Picture


ASUS NUC 14 Performance Picture 86187ASUS NUC 14 Performance Picture 86188ASUS NUC 14 Performance Picture 86189ASUS NUC 14 Performance Picture 86190
ASUS' NUC 14 Performance is an entry in their "NUC" line of small form factor (SFF) computers. That name stands for "Next Unit of Computing", and is a family of barebones systems that Intel originally designed several years ago and then handed off to ASUS. This is a higher-end model in the NUC family, with a dedicated mobile-class NVIDIA GeForce video card built-in. That provides much better graphics performance than onboard video alone would, though it isn't as powerful as a full desktop-class GPU, while still allowing this system to have an extremely slim footprint.

Internally, this NUC uses an Intel Core Ultra 9 185H processor with support for 22 threads across 16 cores. It has two SODIMM slots supporting up to 64GB of DDR5 memory and three M.2 NVMe slots for solid-state drives. External ports on the rear include four USB, one Thunderbolt 4, and Ethernet for networking - along with HDMI and DisplayPort for video output. On the front there are two more USB as well as a headphone jack. WiFi 6E and Bluetooth 5.3 are also present for wireless connectivity.

Model: Asus RNUC14SRKU91000UI

Specifications

CPU Compatibility Intel Core Ultra 9 Processor 185H, cTDP 65W
Chipset Manufacturer Intel
Network Connectivity 2.5G Networking + WiFi 6e
Network Controller Intel 2.5GbE + Intel Killer Wi-Fi 6E AX1690 i
Audio Controller Onboard Realtek ALC256 HD Audio
Cooling System Heatsink and Fan
Number of Fans 2
Color Black
Memory Support
Type DDR5 SODIMM
Maximum Speed 5600 MHz
Number of Slots 2
Maximum Size per Slot 32 GB
Maximum Amount Supported 64 GB
Onboard Video
Chipset Manufacturer nVidia
Processor Type Nvidia RTX 4070 Mobile
Onboard Memory 8,000 MB
HDMI 1
HDMI Version 2.1 FRL
DisplayPort 2
DisplayPort Version 1.4a
Notes: 1x Thunderbolt 4 Type-C
External Connections
USB 2.0 2
USB 3.2 Gen 2 (USB 3.1) 4
Audio Out Stereo
Audio In Line-In/Microphone
LAN (RJ45) 1
Thunderbolt Ports 1
Thunderbolt Version 4
Internal Connections
M.2 Connector 3
M.2 Support 3x 80mm PCIe 4.0
Additional Information
Bluetooth Yes (5.3)
BIOS Features
UEFI BIOS Yes
EZ Flash Yes
OC Profiles Yes
Dimensions
Height 60 mm (2.4 in)
Width 270 mm (10.6 in)
Depth 180 mm (7.1 in)
Net Weight 2.6 kg (5.7 lbs)
Power Supply
Input Voltage 100-240 Vac
Wattage at 120V 330 W
