Asus A88X-Pro

Motherboard

[ Rear Ports ][ Schematic ]

Asus A88X-Pro Picture 25935Asus A88X-Pro Picture 25936Asus A88X-Pro Picture 25938Asus A88X-Pro Picture 25937

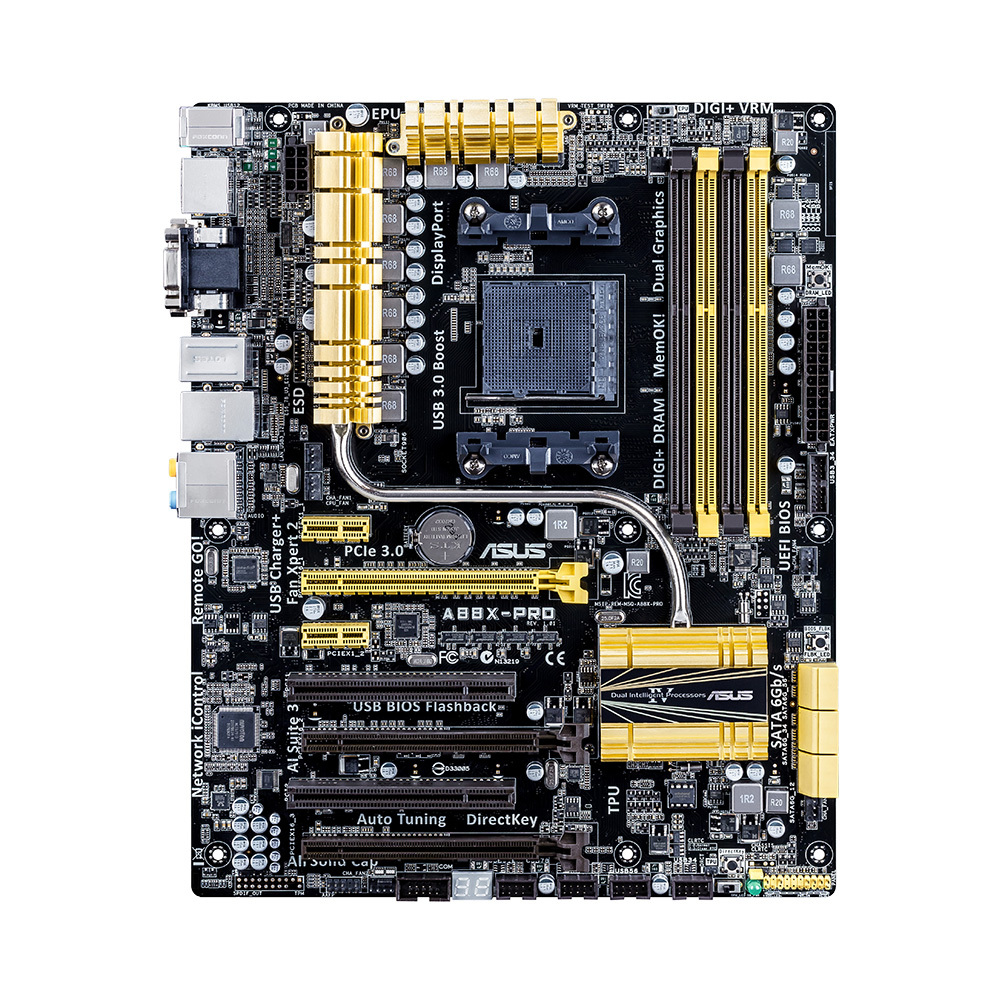

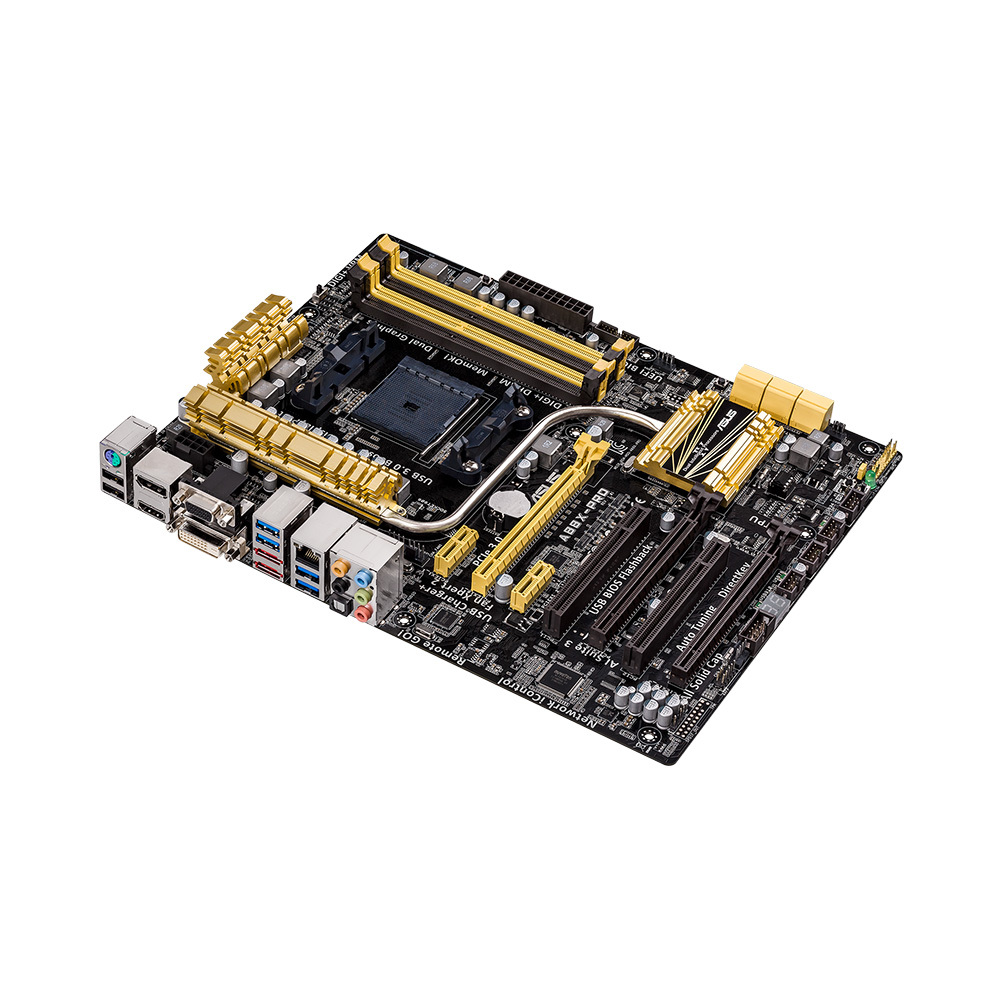

Model: Asus A88X-PRO

Specifications:
spacer
Socket  FM2+
CPU Compatibility  AMD Socket FM2+ Athlon/A- Series Processors
Form Factor  ATX
Chipset Manufacturer  AMD
Chipset  AMD A88X (Bolton D4)
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111GR
Audio Controller  Realtek ALC1150 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  2133 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  AMD
Processor Type  Integrated AMD Radeon HD 7000/8000 Series Graphics in A-series APU
Maximum Shared Memory  2048 MB
Maximum Resolution  4096x2160
Maximum DVI Resolution   2560x1600
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2160
DVI  1
VGA  1
HDMI  1
DisplayPort  1

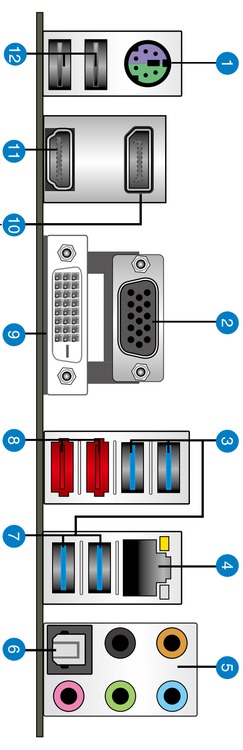

External Connections
USB 2.0  2
USB 3.0  4
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  2
LAN (RJ45)  1
Wireless Antenna Port  No
Internal Connections
USB 2.0  4 (providing 8 ports)
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  6
Serial (Com)  1
SATA Controllers
SATA III 6.0Gbps Controller 1  6 port - AMD A88X FCH(Bolton D4)
SATA III 6.0Gbps Controller 2  2 port ESATA - AMD A88X FCH(Bolton D4)
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 3.0 x16
Slot 3  PCI Express 2.0 x1
Slot 4  PCI
Slot 5  PCI Express 3.0 x8 in a x16 size
Slot 6  PCI
Slot 7  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0, 1, 5, 10, JBOD
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

PCIe 2.0 x16 slots operate in single x16 or dual x8 mode




with the Asus A88X-Pro.
