Asus P8H61-I REV 3.0

Motherboard

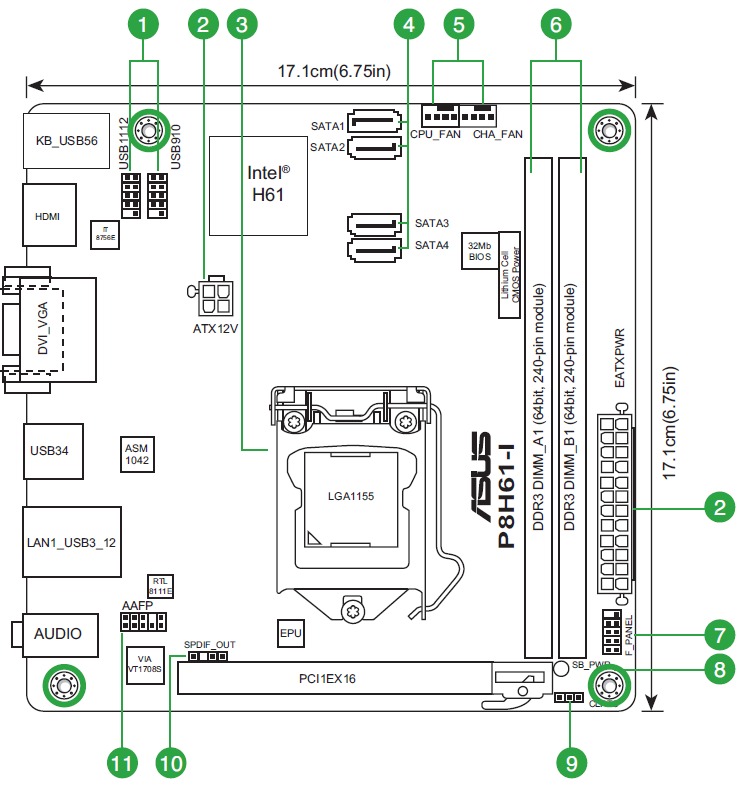

[ Rear Ports ][ Schematic ]

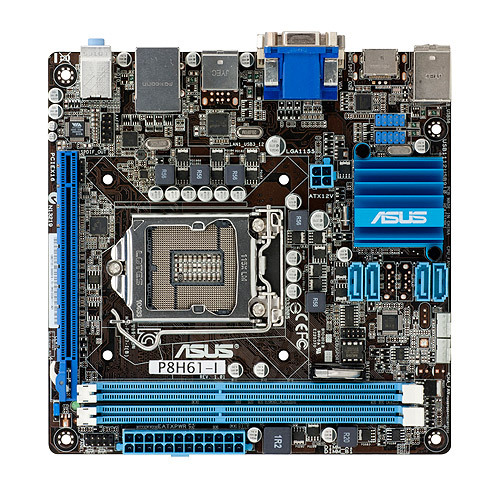

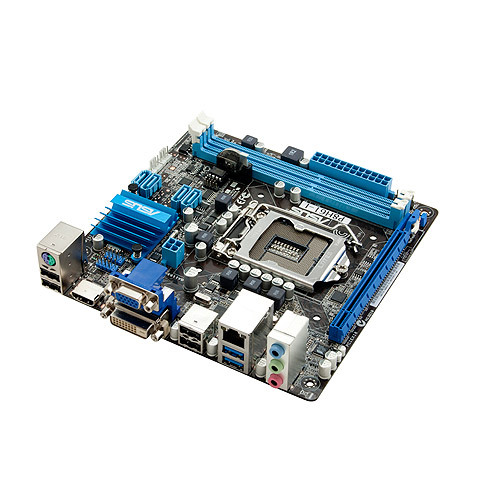

Asus P8H61-I REV 3.0 Picture 19157Asus P8H61-I REV 3.0 Picture 19158Asus P8H61-I REV 3.0 Picture 19176Asus P8H61-I REV 3.0 Picture 19175
Model: Asus P8H61-I

Specifications:
spacer
Socket  1155
CPU Compatibility  Core i3/i5/i7
Form Factor  Mini-ITX
Chipset Manufacturer  Intel
Chipset  H61
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111E
Audio Controller  VIA 8-Channel High Definition Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  2
Maximum Size per Slot  8 GB
Maximum Amount Supported  16 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  1748 MB
Maximum Resolution  1920x1200
DVI  1
VGA  1
HDMI  1
External Connections
USB 2.0  4
USB 3.0  2
PS/2 Keyboard  Yes
Audio Out  Stereo
Audio In  Line-In/Microphone
LAN (RJ45)  1
Wireless Antenna Port  No
Internal Connections
USB 2.0  2 (providing 4 ports)
SATA II 3.0Gbps  4
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel H67
Expansion Slots
Slot 1  PCI Express 2.0 x16
Additional Information
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  171 mm (6.7 in)
Width  171 mm (6.7 in)
