Asus P8Z68-M Pro

Motherboard

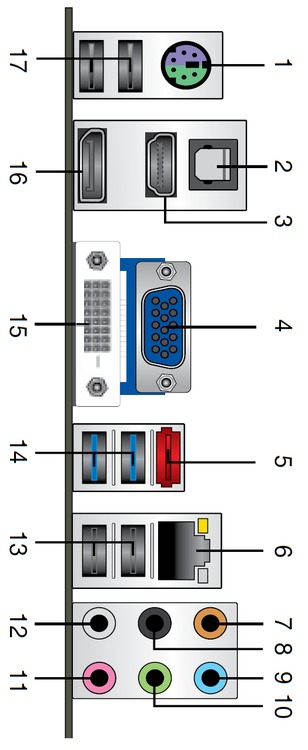

[ Rear Ports ][ Schematic ]

Asus P8Z68-M Pro Picture 19309Asus P8Z68-M Pro Picture 19310Asus P8Z68-M Pro Picture 19321Asus P8Z68-M Pro Picture 19322
Model: Asus P8Z68-M PRO

Specifications:
spacer
Socket  1155
CPU Compatibility  Core i7/Core i5/Core i3 Processors
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  Z68
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111E
Audio Controller  Realtek ALC 892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  Integrated Graphics
Maximum Shared Memory  1748 MB
Maximum Resolution  1920x1200
DVI  1
VGA  1
HDMI  1
DisplayPort  1
External Connections
USB 2.0  5
USB 3.0  2
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Internal Connections
USB 2.0  4 (providing 8 ports)
SATA II 3.0Gbps  4
SATA III 6.0Gbps  3
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel Z68
SATA III 6.0Gbps Controller 1  2 port - Intel Z68
SATA III 6.0Gbps Controller 2  1 port - ASMedia PCIe
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 2  PCI
Slot 3  PCI
Slot 4  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,5,10
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  245 mm (9.6 in)
Width  245 mm (9.6 in)

Further Reading

with the Asus P8Z68-M Pro.
