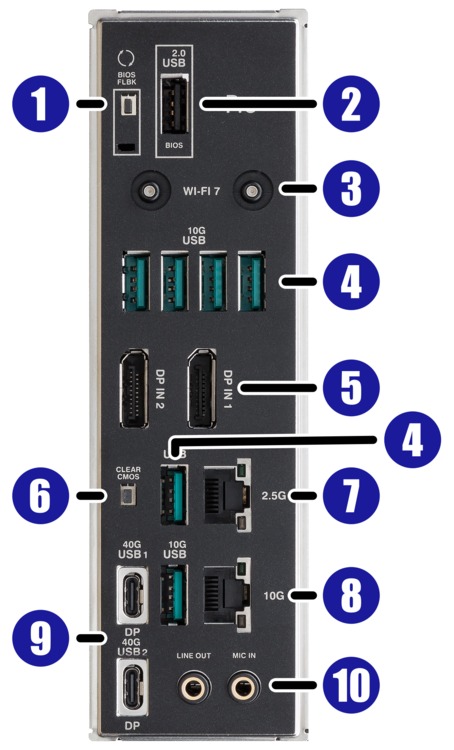

Asus Pro WS TRX50-SAGE WIFI A Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

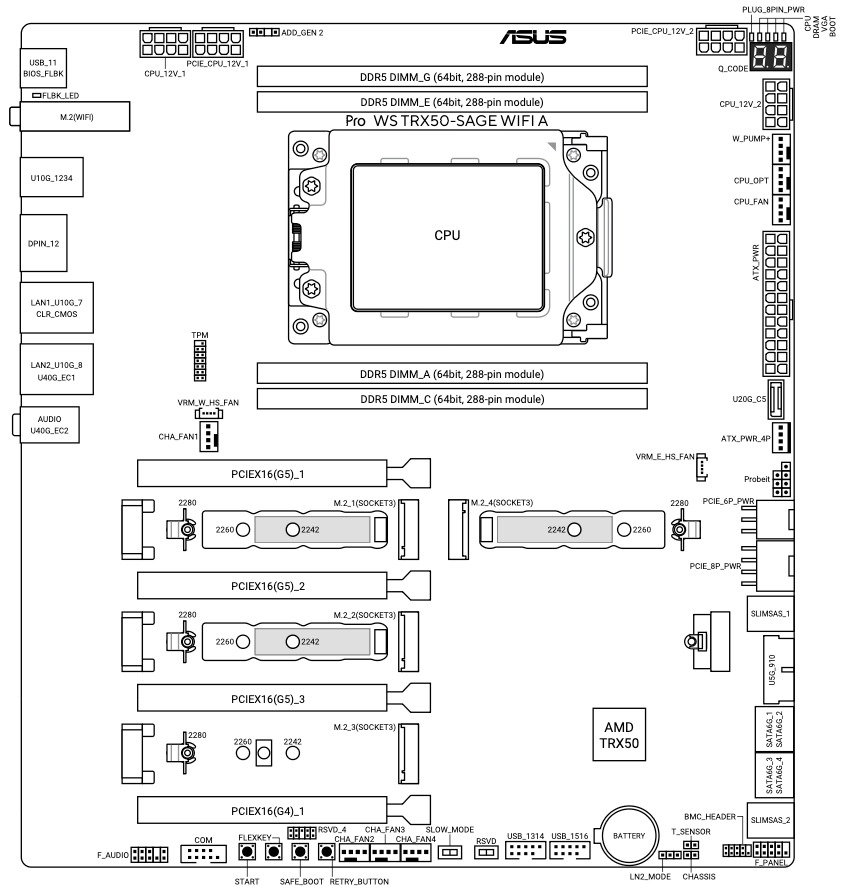

Asus Pro WS TRX50-SAGE WIFI A Schematic
A wide range of connectivity is provided as well: two USB 4.0, six USB 3.2, 10Gb and 2.5Gb Ethernet ports, WiFi 7, Bluetooth 5.4, and analog audio jacks. Internally it has four SATA ports, three M.2 connectors, and one SlimSAS supporting a flexible array of storage options - though the last M.2 shares resources with the SlimSAS, so they cannot both be utilized at the same time. Technically there are also a fourth M.2 and second SlimSAS, but they are only functional if a Threadripper PRO processor is installed.

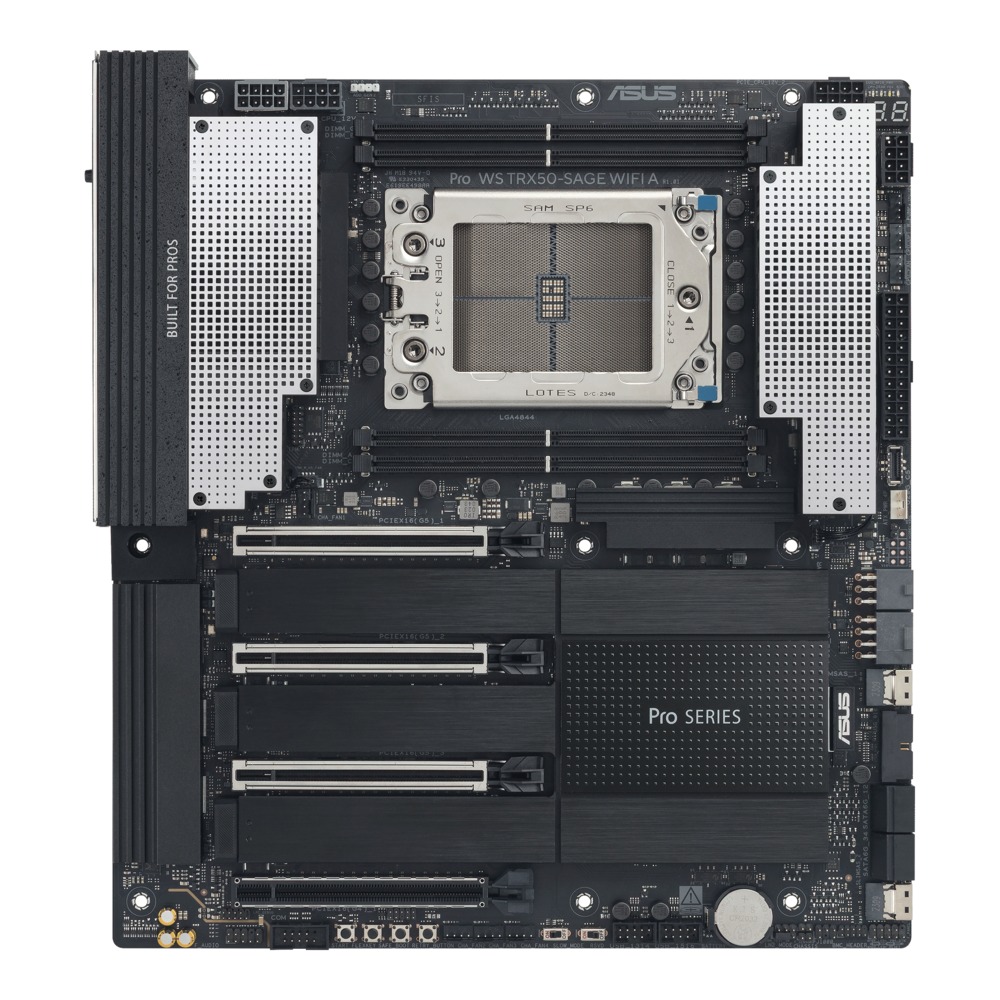

Model: Asus Pro WS TRX50-SAGE WIFI A
Specifications
| Socket | sTR5 |
| CPU Compatibility | Threadripper 7000/9000 |
| Form Factor | CEB |
| Chipset Manufacturer | AMD |
| Chipset | TRX50 |
| Wired Network Connectivity | 10G + 2.5G Networking |
| Wireless Network Connectivity | WiFi 7 |
| Network Controller | Marvell AQtion, Intel I226-LM, Realtek RTL8922AE |
| Audio Controller | Realtek ALC1220P |
| Cooling System | Heatsink and Fan |
| Color | Black |
| Windows Support | Windows 11 |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 512 GB |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| USB 4 | 2 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 4 |
| M.2 Support | 3x 42-80mm PCIe 5.0, 1x 42-80mm PCIe 4.0 |
| Maximum M.2 Length | 80 mm (3.1 in) |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
| SlimSAS | 2 |
| Notes: | SlimSAS Supports PCIe 4.0 x4. M.2_4 and SlimSAS_1 only available with PRO CPU |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4x Via TRX50 Chipset |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 4.0 x16 |
Additional Information | |
| Bluetooth | Yes (5.4) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
M.2_4 (Gen5) is only active when using a Threadripper Pro CPU.
