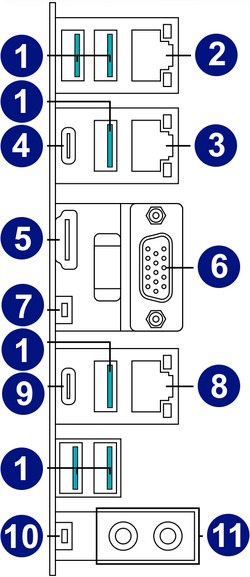

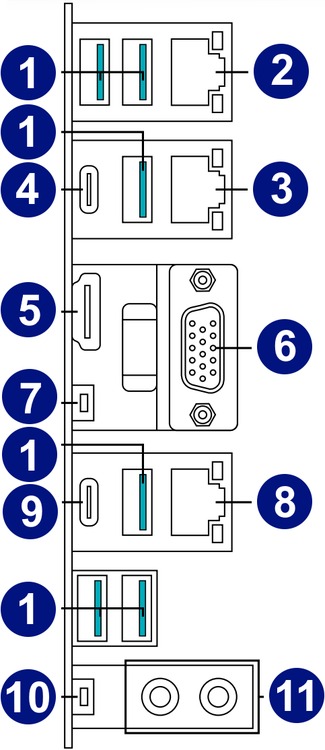

Asus Pro WS Z890-ACE SE Ports
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

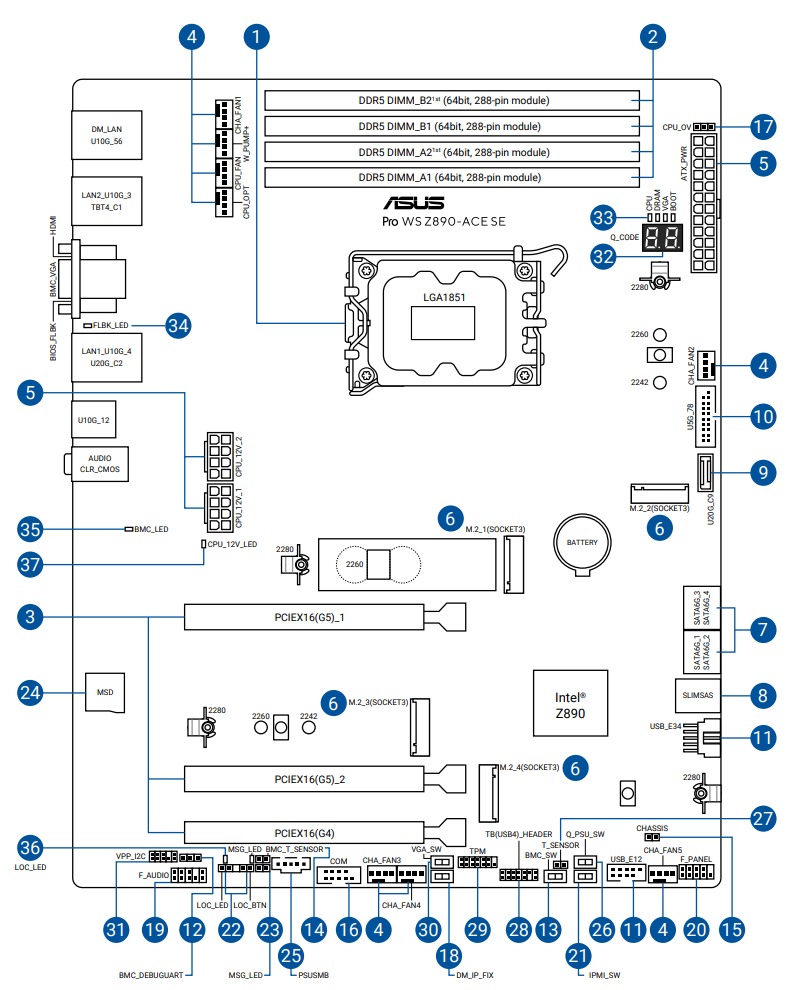

Asus Pro WS Z890-ACE SE Schematic

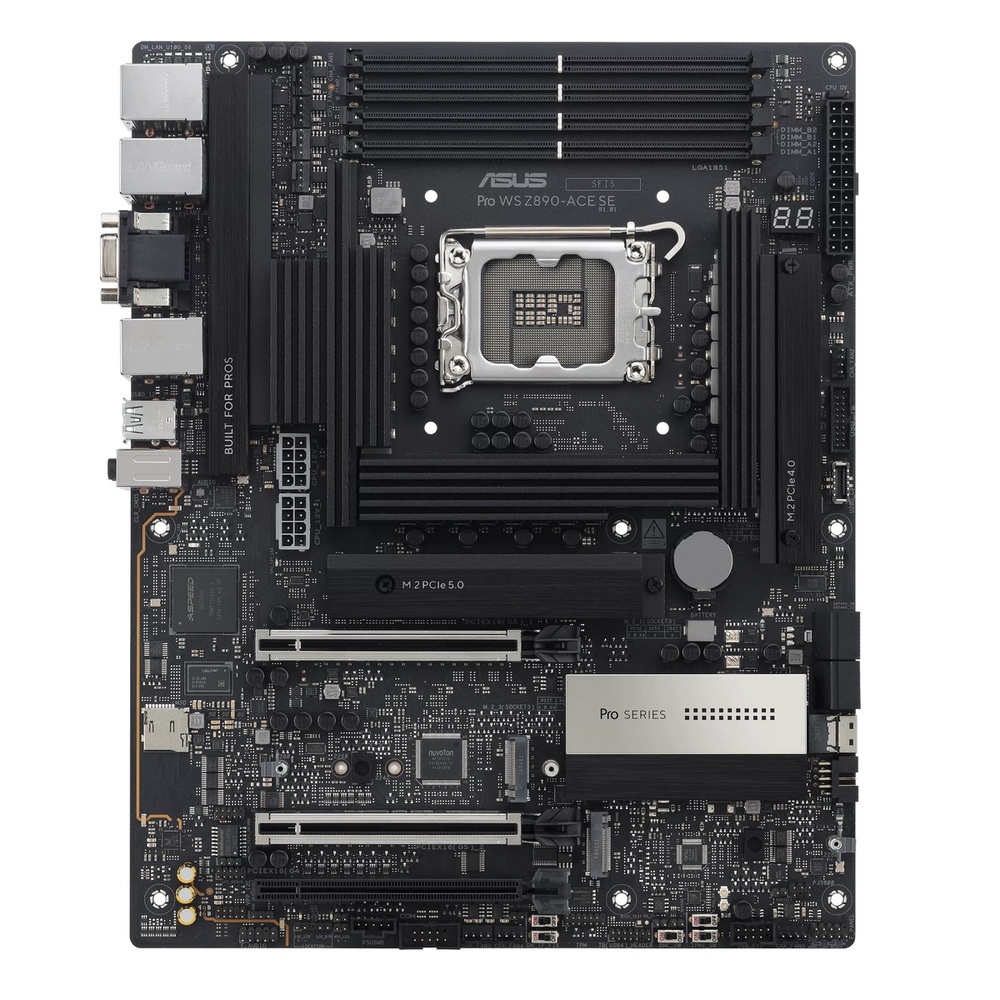

In terms of external connectivity, this board is well equipped with one Thunderbolt 4 port, which is Type C and can be used as a USB port as well, plus seven more USB 3.2 Gen 2 ports. For networking, a pair of Ethernet ports are available - one 2.5 and one 10Gbps - as well as a third RJ45 for IPMI remote management. Notably, WiFi and Bluetooth are not built into this board. For video output, there is an HDMI output for use with the Intel Xe-LPG graphics built into the CPU as well as a VGA port connected to the IPMI.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are four SATA III ports and four M.2 slots. Three expansion slots available to handle a variety of expansion card configurations: two PCIe 5.0 slots (operating as one x16 or two x8 slots) and one PCIe 4.0 (only x4 mode).
Model: Asus Pro WS Z890-ACE SE
Specifications
| Socket | 1851 |
| CPU Compatibility | Intel Core Ultra Series 2 |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z890 |
| Network Connectivity | 10G + 2.5G Networking |
| Audio Controller | Onboard Realtek HD Audio |
| Color | Black |
| Windows Support | Windows 11 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 6400 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 256 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | Processor Dependent |
| Maximum HDMI Resolution | 4096x3112 |
| VGA | 1 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| Thunderbolt | 4 |
External Connections | |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Thunderbolt Ports | 1 |
| Thunderbolt Version | 4 |
| BIOS Flashback | No |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 4 |
| M.2 Support | 1x 80mm PCIe 5.0, 2x 42-80mm PCIe 4.0, 1x 80mm PCIe 4.0 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
| SlimSAS | 1 |
| Notes: | SlimSAS Supports PCIe 4.0 x4 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4x via Z890 Chipset |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x8 in a x16 size |
| Slot 6 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.319 kg (2.9 lbs) |
