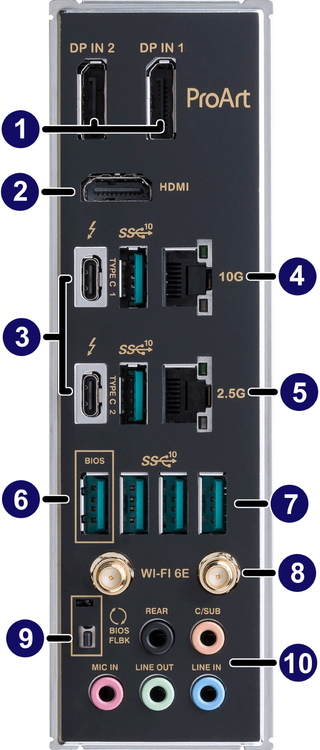

Asus ProArt Z790-Creator WiFi Ports
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB Flashback Port: Special USB port supporting BIOS flashback. Insert USB drive with BIOS file to flash BIOS.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Asus ProArt Z790-Creator WiFi Schematic
In terms of external connectivity, this board is well equipped with two Thunderbolt 4 connectors, which are Type C and can be used as USB ports as well, plus six more USB 3.2 Gen 2 ports. For networking, a pair of 2.5 and 10Gbps LAN ports are available - as well as WiFi 6e and Bluetooth 5.2. Because this motherboard supports Thunderbolt, it includes a DisplayPort inputs on the I/O panel which allows pass-through from the video card to a TB connected monitor. It also has an HDMI output for use with the Intel graphics built into the CPU.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are eight SATA III ports plus four M.2 slots - one of which shares lanes with some of the SATA ports. There are also a mix of three PCI Express slots available to handle a variety of expansion card configurations.
There isn't much difference here compared to the previous Z690 version of this board, but it does support higher memory speeds when using all four DIMM slots. Additionally, the PCI-E x4 slot is now Gen4 instead of Gen3.
Model: Asus ProArt Z790-CREATOR WIFI
Specifications
| Socket | 1700 |
| CPU Compatibility | Raptor Lake |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z790 |
| Front Side Bus | DMI 4.0 |
| Network Connectivity | 10G + 2.5G Networking + WiFi 6e |
| Network Controller | Marvell 10G + Intel I225 + Intel AX211 |
| Audio Controller | Onboard Realtek S1220A HD Audio |
| Cooling System | Passive Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 48 GB |
| Maximum Amount Supported | 192 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependent |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| Notes: | Displayport IN for Thunderbolt Outputs |
External Connections | |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 4 |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 4 |
| M.2 Support | 2x 42-110mm NVMe (Gen4), 1x 42-80mm NVMe (Gen4), 1x 42-80mm NVMe (Gen4) + SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel Z790 |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x8 in a x16 size |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.538 kg (3.4 lbs) |
