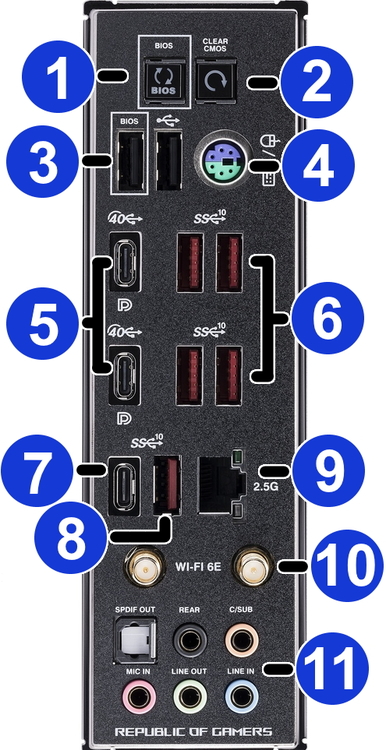

Asus ROG Crosshair X670E Gene Ports
BIOS Flashback LED: Status LED for the motherboard BIOS Flashback feature
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
In terms of connectivity, this board is well equipped with a mix of ten USB ports (including two of the new USB 4.0 ports), 2.5Gbps LAN, WiFi 6e, Bluetooth 5.2, and surround sound audio outputs. Those USB 4.0 ports also provide video output from the AMD graphics built into the Ryzen 7000 processors.
Internally this motherboard is packed, with only two DDR5 memory slots supporting up to 64GB of RAM with current memory module sizes. For storage, there are four SATA III ports plus three M.2 slots - two of which are located on a riser card due to lack of space on the board. That lack of room also means just one PCI-Express 5.0 x16 slot for a video card and a PCIe 4.0 x1 slot for another expansion card.
Model: Asus ROG CROSSHAIR X670E GENE
Specifications
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen 7000 Series Desktop Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | X670 |
| Network Connectivity | 2.5G Networking + WiFi 6e |
| Audio Controller | Onboard ROG SupremeFX 7.1 ALC4080 |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | RDNA 2 |
| Maximum Resolution | 7,680 x 4,320 |
| USB | 4.0 |
| Notes: | Onboard video achieved via USB 4.0 outputs |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 5 |
| USB 3.2 Type C | 1 |
| USB 4 | 2 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| Memory Card Reader | No |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 1 |
| M.2 Support | 2x 42-80mm (PCIe 5.0), 1x 42-80mm (PCIe 4.0) |
| Notes: | 1x PCIe 5.0 M.2 slot on motherboard, the other two(1x PCIe 5.0 & 1x PCIe 4.0) achieved through Z.2 card |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4 via X670 chipset |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 4.0 x1 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.434 kg (3.2 lbs) |
Launching as our Ryzen 7000 mATX option. As new motherboards become available we will transition this offering over to something with the features more applicable to our users (4 DIMM slots, M.2s on the board, less OC features)
