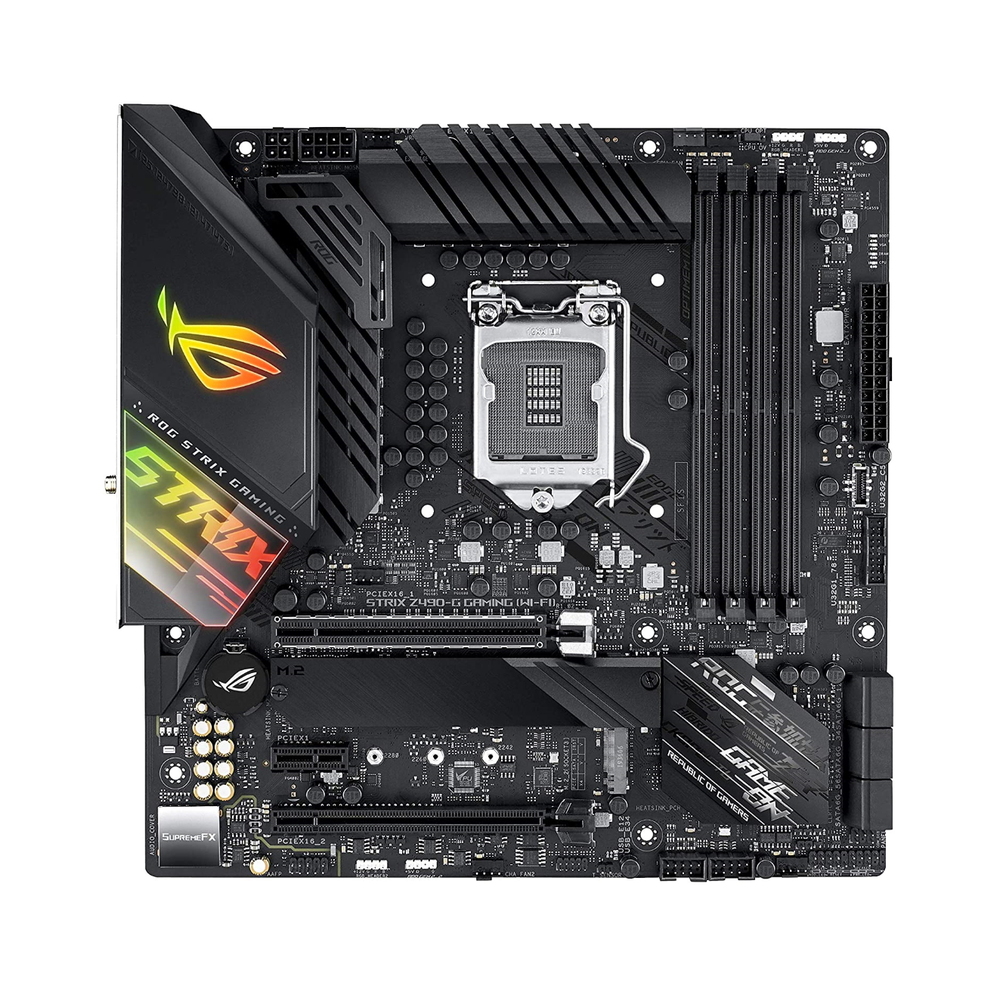

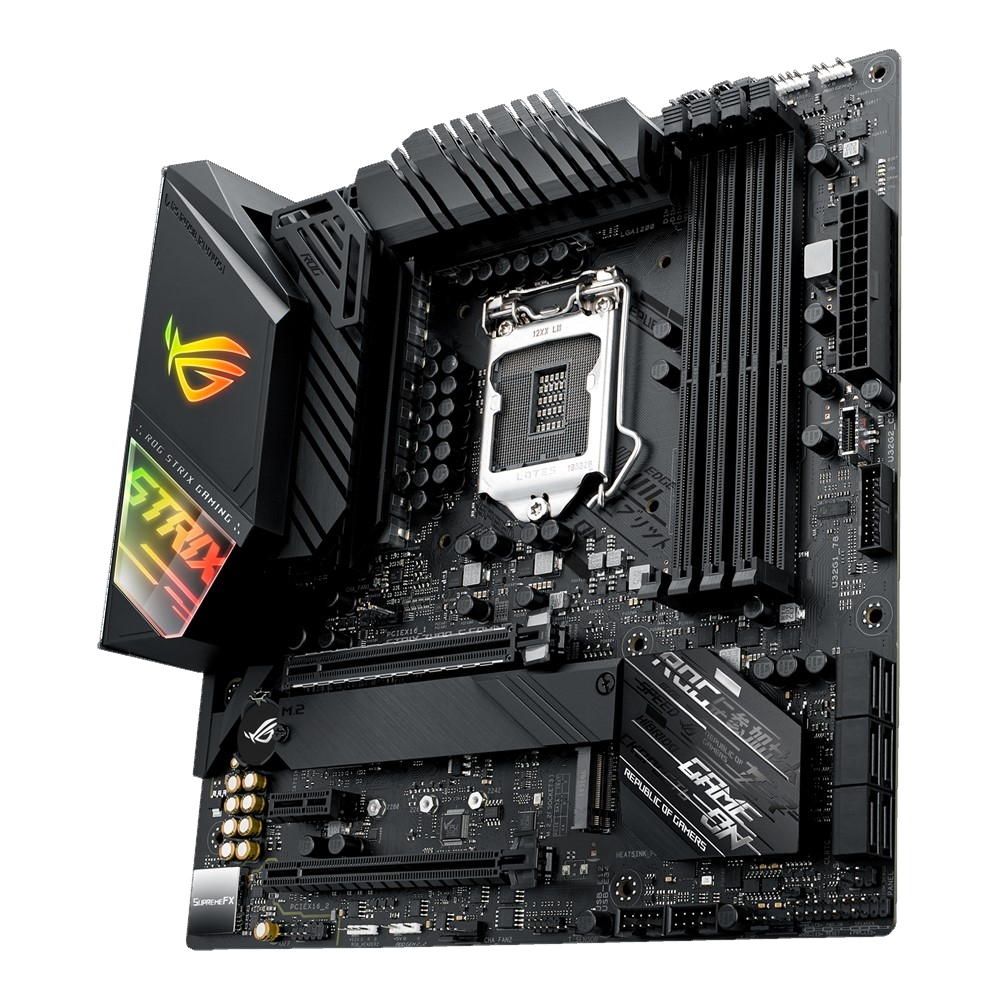

The ASUS ROG STRIX Z490-G is a Micro ATX motherboard for Intel's 10th Gen Core Processors (code named Comet Lake). It sacrifices some of the expansion capacity that a larger motherboard can offer, but still supports up to 128GB of DDR4 memory as well as multiple SATA and M.2 drives.

For external connectivity, it also has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth, and eight USB ports of varying speeds (including one Type C). Thanks to the Intel graphics on the CPU, there are also HDMI and DisplayPort video outputs available.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
The onboard Ethernet controller on this motherboard doesn't behave well under Linux, so if you are going to use that OS (and assuming you want wired networking capabilities) I would recommend adding a dedicated NIC.

Socket  1200
CPU Compatibility  Comet Lake-S
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  Z490
Front Side Bus  DMI 3.0
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Intel I225-V + Intel AX201
Audio Controller  Onboard Realtek S1220A HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2933 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Dependant
Maximum Resolution  4096x2304
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2304
HDMI Version  1.4b
DisplayPort  1
DisplayPort Version  1.4
Notes:  Onboard Graphics Requires Supported CPU

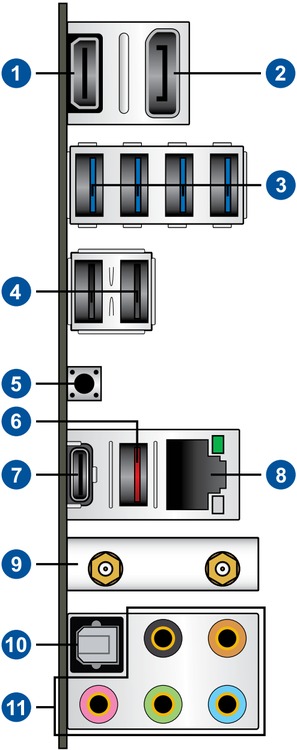

External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  4
USB 3.2 Gen 2 (USB 3.1)  1
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  2
M.2 Support  1x 42-80mm NVMe & SATA, 1x 42-110mm NVMe & SATA
SATA Controllers
SATA III 6.0Gbps Controller 1  Z490
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  Slot not available on this board
Slot 3  PCI Express 3.0 x1
Slot 4  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0/1/10/5
Bluetooth  Yes (5.0)
Integrated IO Shield  Yes
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  224 mm (8.8 in)
Width  224 mm (8.8 in)

Incompatible with Intel 11th Gen processors (3/15/21)
