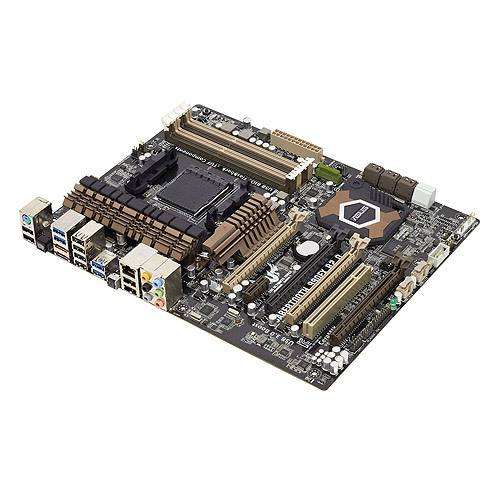

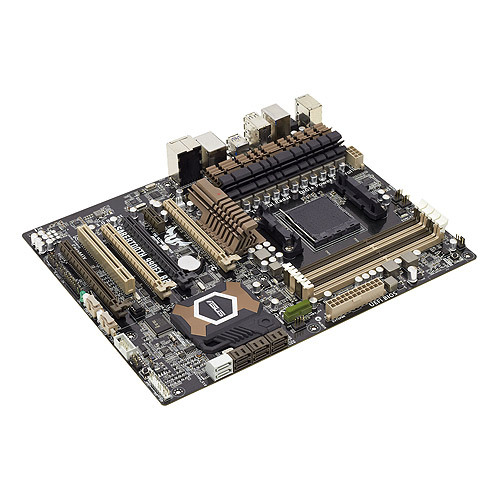

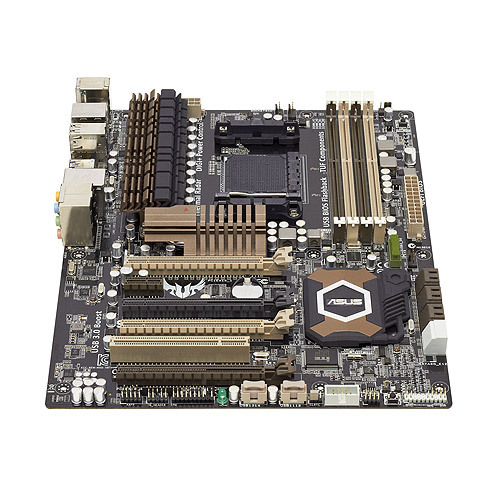

Model: Asus SABERTOOTH 990FX R2.0
Specifications:
Specifications:
| Socket | AM3 |
| CPU Compatibility | AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | 990FX/SB950 |
| Front Side Bus | HyperTransport |
| Network Connectivity | Gigabit Networking |
| Network Controller | Realtek 8111F |
| Audio Controller | Realtek ALC 892 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
| Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1866 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |

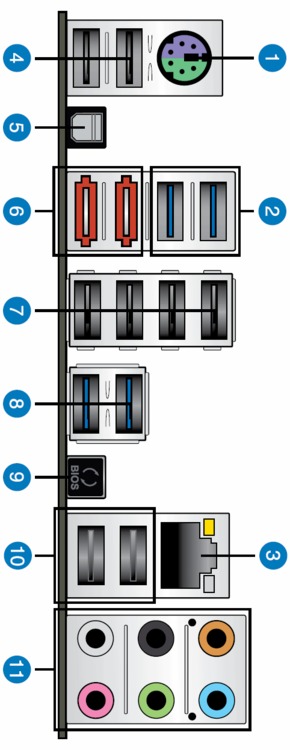

| External Connections | |
| USB 2.0 | 8 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 2 |
| LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
| Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 8 |
| TPM (module sold separately) | 1 |
| SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - AMD SB950 |
| SATA III 6.0Gbps Controller 2 | 2 port + 2 eSATA - ASMedia PCIe |
| Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x1 |
| Slot 3 | PCI Express x4 in a x16 size |
| Slot 4 | PCI Express 2.0 x16 |
| Slot 5 | PCI |
| Slot 6 | PCI Express 2.0 x16 |
| Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0, 1, 5, 10 |
| Bluetooth | No |
| BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
| Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
with the Asus SABERTOOTH 990FX R2.0.
