Asus TUF B760M-PLUS WIFI Ports
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

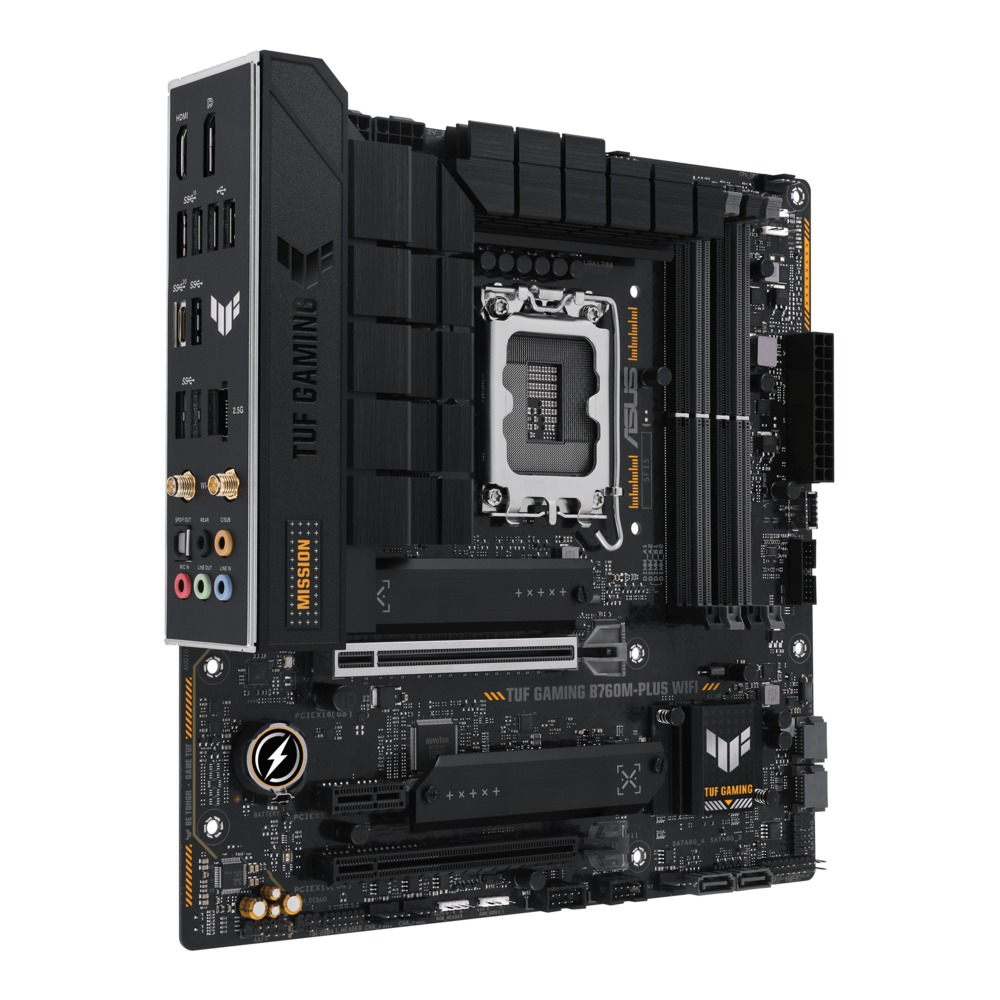

Asus TUF B760M-PLUS WIFI Schematic
The primary PCI-Express 5.0 x16 slot is perfect for a video card - though one is not required, if the built-in graphics from the Intel processor is sufficient for your workflow. Additional PCIe x1 and x4 slots are also available for other expansion cards.
For external connectivity, it has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth 5.2, eight USB ports of varying speeds (including one Type C), and HDMI & DisplayPort outputs for the on-chip Intel graphics.
Model: Asus TUFGAMINGB760M-PLUSWIFI
Specifications
| Socket | 1700 |
| CPU Compatibility | Alder Lake |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | B760 |
| Front Side Bus | DMI 4.0 |
| Network Connectivity | 2.5G Networking + WiFi 6 |
| Network Controller | Intel 2.5GbE + Intel Wi-Fi AX201 |
| Audio Controller | Onboard Realtek ALC4080 HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependent |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 7680x4320 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| USB 3.2 Type C | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | No |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80mm PCIe 4.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel B760 (1-4) |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 4.0 x1 |
| Slot 4 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.33 kg (2.9 lbs) |
