Asus WS C246M PRO

Motherboard

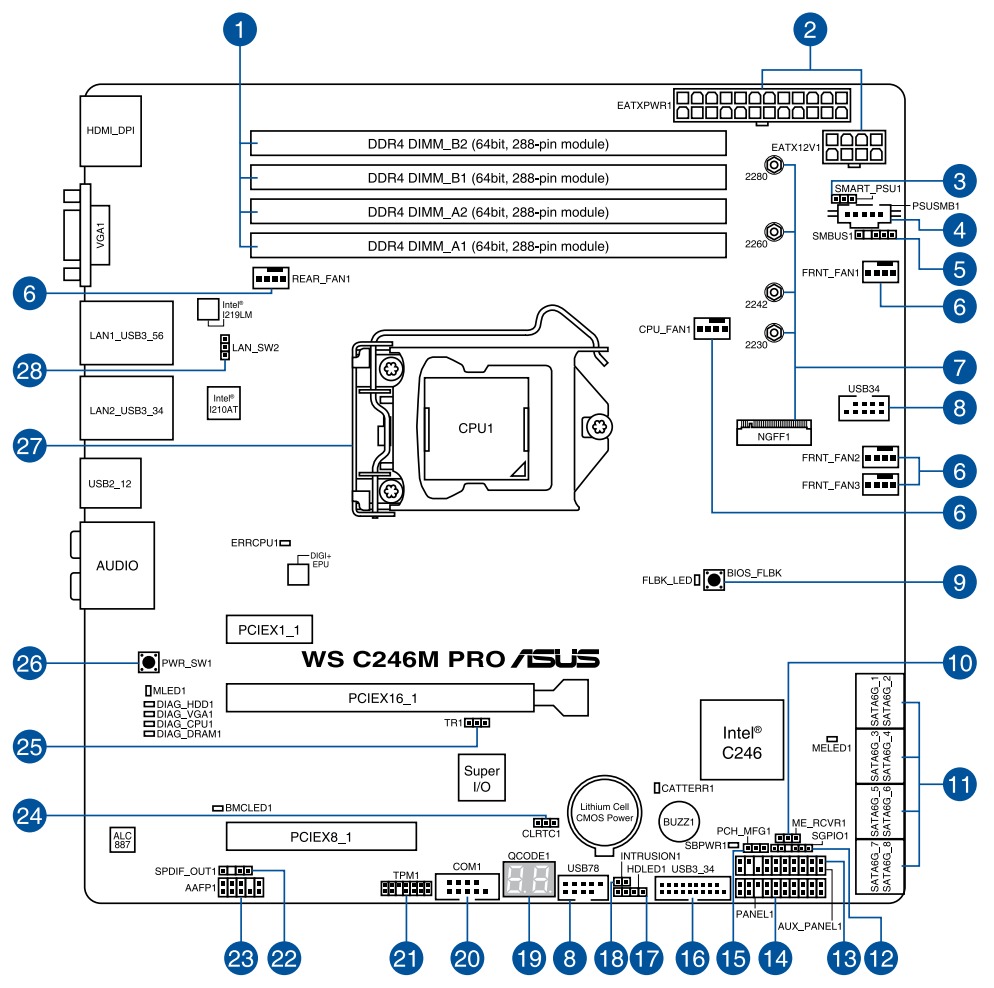

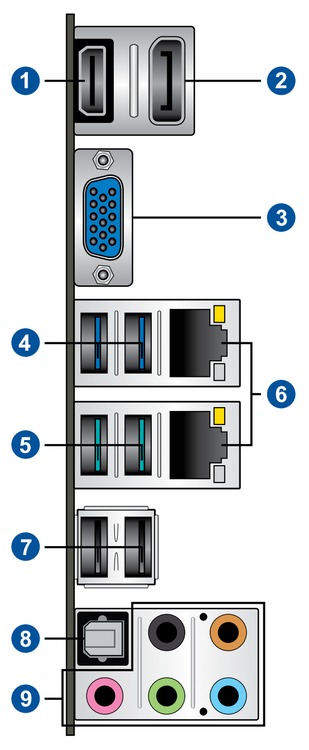

[ Rear Ports ][ Schematic ]

Asus WS C246M PRO Picture 49943Asus WS C246M PRO Picture 49944Asus WS C246M PRO Picture 49945Asus WS C246M PRO Picture 49946Asus WS C246M PRO Picture 52366Asus WS C246M PRO Picture 52365

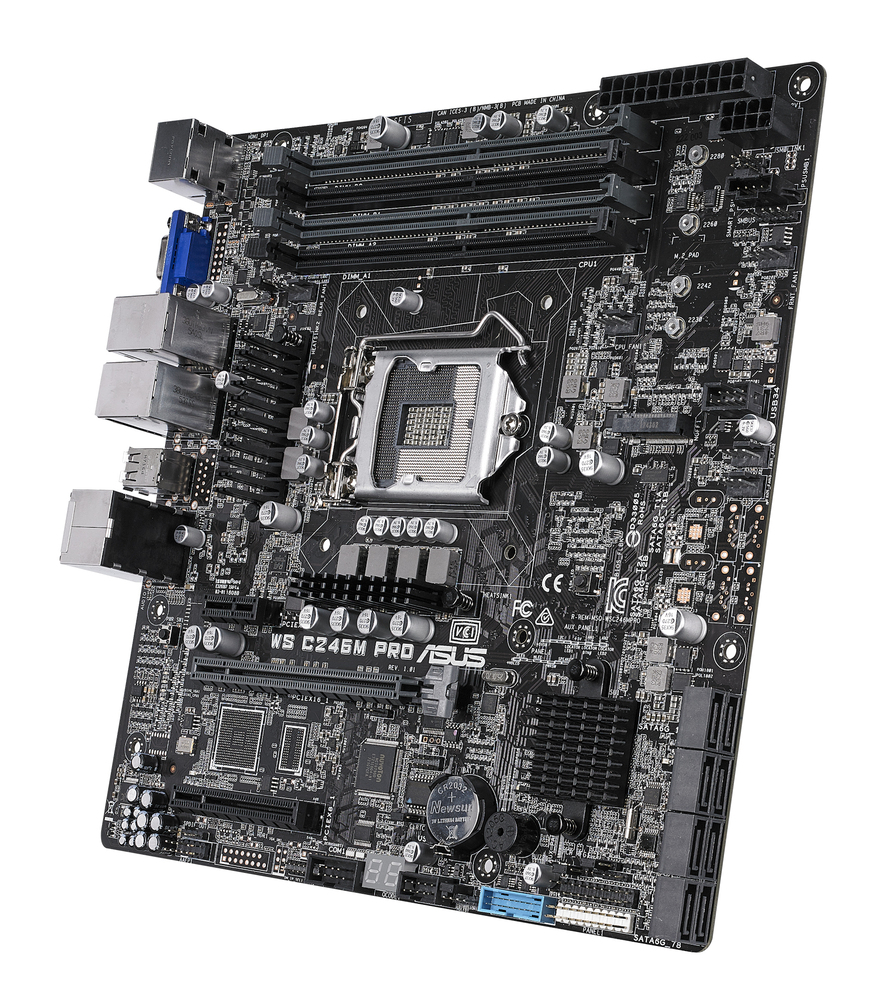

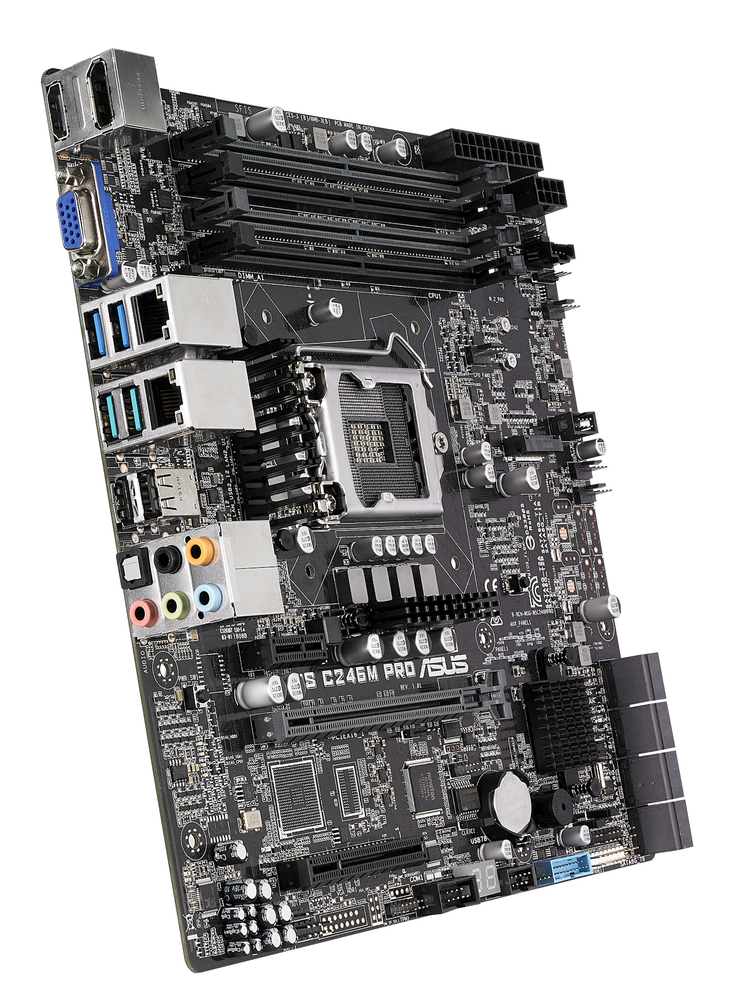

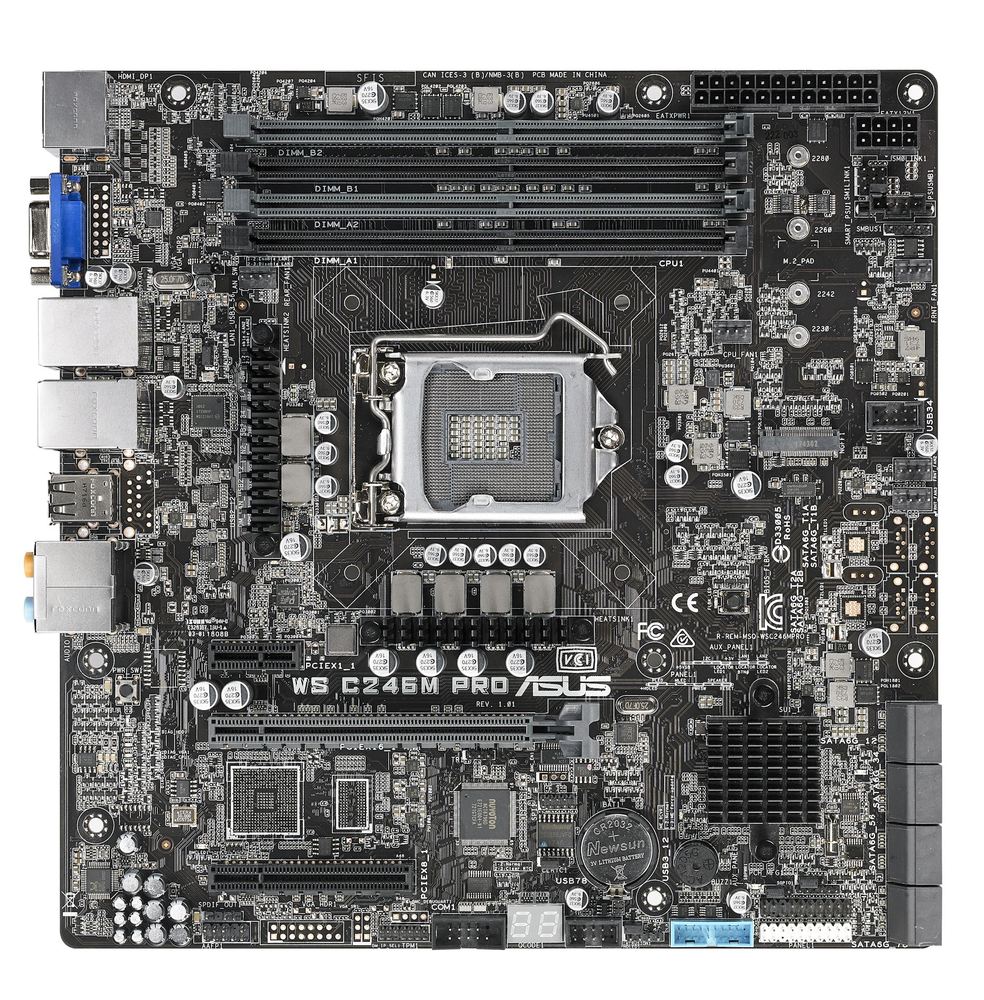

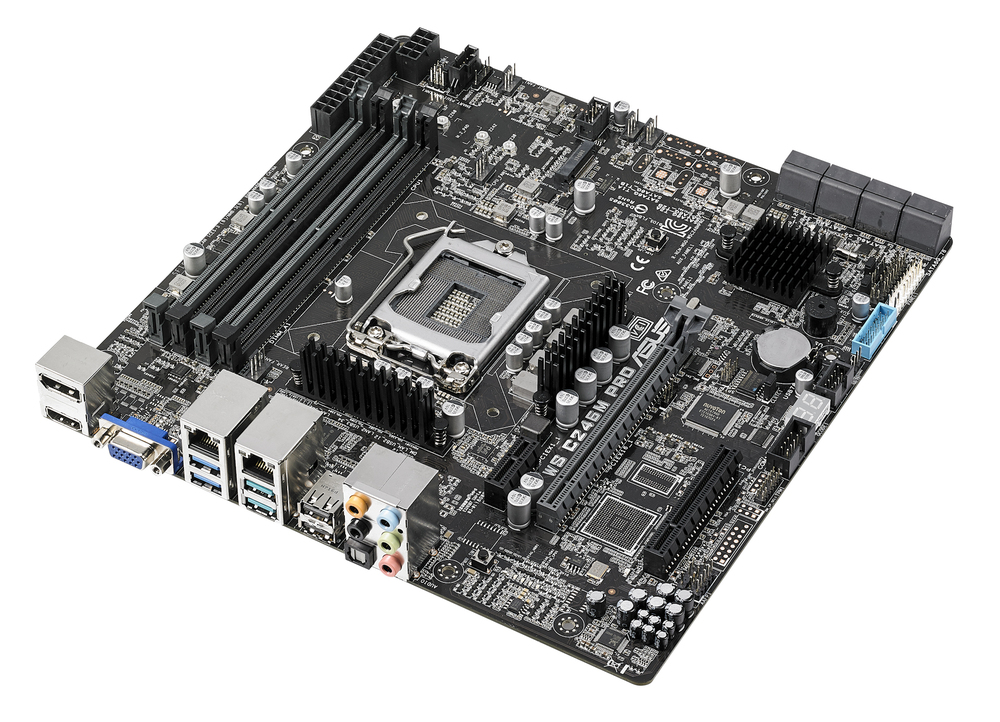

The Asus WS C246M Pro is a micro-ATX motherboard aimed at workstation and server usage. It is built for Intel's E-2100 family of Xeon processors, using the Intel C246 chipset. That gives it ECC memory support for increased reliability, and Asus has complimented that with dual Intel gigabit Ethernet ports, eight SATA 6Gbps, one M.2 slot, multiple USB 2.0, 3.0, and 3.1 ports, and digital & analog audio connectivity. The Intel graphics built into the Xeon E3 processors is also accessible, with support for up to three monitors via VGA, HDMI, and DisplayPort outputs.
Jeff Stubbers (Technology Consultant Lead)
Jeff Stubbers (Technology Consultant Lead) Says:
We tested and confirmed this motherboard can support up to (3) monitors simultaneously via (1) VGA, (1) HDMI, & (1) DisplayPort outputs.
Model: Asus WS C246M PRO

Specifications:
spacer
Socket  1151
CPU Compatibility  Intel Xeon E-21xx and E-22xx processors
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  C246
Front Side Bus  DMI 3.0
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel I219-LM, Intel I210AT
Audio Controller  Onboard Realtek ALC887 HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  2666 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Resolution  4096x2304
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2304
VGA  1
HDMI  1
HDMI Version  1.4b
DisplayPort  1
DisplayPort Version  1.4
External Connections
USB 2.0  2
USB 3.0  2
USB 3.1  2
PS/2 Keyboard  No
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  No
Memory Card Reader  No
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  8
M.2 Connector  1
M.2 Support  42-80mm NVMe & SATA
Serial (Com)  1
TPM (module sold separately)  1
TPM Pinout  14-1
SATA Controllers
SATA III 6.0Gbps Controller 1  8 port - Intel C246
Expansion Slots
Slot 1  PCI Express 3.0 x1
Slot 2  PCI Express 3.0 x16
Slot 3  Slot not available on this board
Slot 4  PCI Express 3.0 x8
Additional Information
RAID Support  0,1,5,10
Bluetooth  No
BIOS Features
EZ Flash  Yes
OC Profiles  No
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)

Warranty:

3 Years
